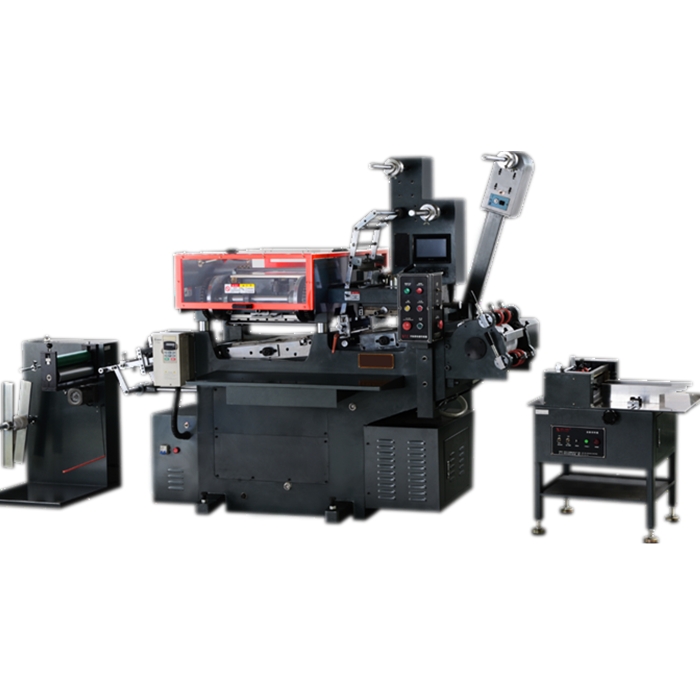

Sticker Printing Machine Die Cuter
Function:
Unwinder-Printing(1-4 color)-Lamination-Die cuter-Waster-Paper sheet cutter or Rewinder
Features:
1. Simple in operation, fast, flexible, accurate in positioning, automatic paper feeding, and consecutive operations of printing, film coating, die cutting, and finished products.
2. Advanced ink distribution ensures more even coloring.
3. Advanced automatic control system to ensure automatic shutdown when there is no more paper, or when the set number of paper counting is reached.
4. Slanting back design is employed. Inching contact is employed for printing and die cutting during mechanical action, as a result, the pressure is evenly distributed, and clear and spotless printing results can be obtained whether for large-sized colors or fine characters.
5. The built-in centralized oil supply system ensures high-speed operation with low noise and no abrasion.
6. the single-phase supply input is employed, thus freeing the equipment from the restriction of site motive power configuration.
Technology parameters
|
Model |
L210C |
L260C |
|
Printing accuracy |
±0.1mm |
±0.1mm |
|
Printing size-2color(mm) |
200*155 |
250*195 |
|
printing size-3color(mm) |
200*100 |
250*126 |
|
printing size-4color(mm) |
200*72.5 |
250*92.5 |
|
Max.Die-cut size(mm) |
200*200 |
250*230 |
|
Max.paper width(mm) |
210 |
260 |
|
Max paper length(mm) |
300 |
300 |
|
Max.paper speed(/hour) |
12000 |
10000 |
|
machine size(L*M*X) mm |
2950*1200*1700 |
3500*1300*1780 |
|
power(V/Kw) |
220V/2.2KW or 380V/3.7KW |
380V/3.7KW |
|
Net weight(Kg) |
2500 |
3000 |

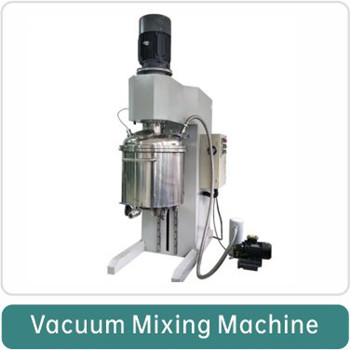

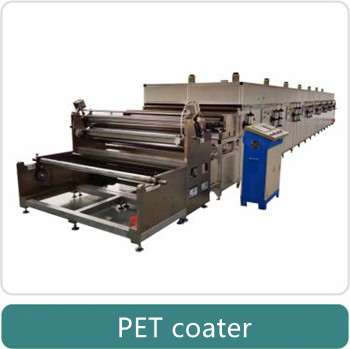

You might also need the following compatible upstream machines.
