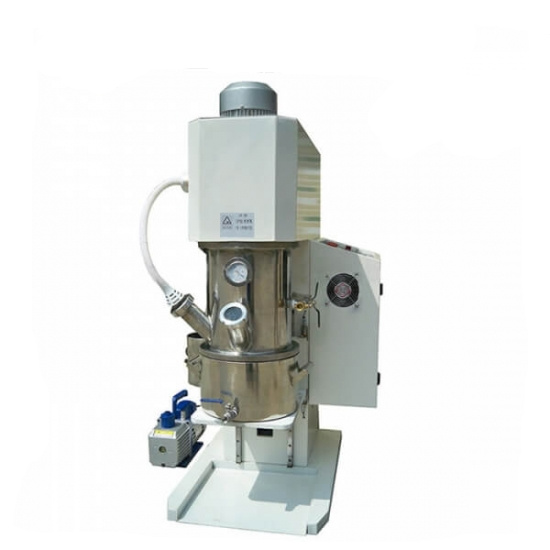

5L Planetary Vacuum Mixer Mixing Machine
This lab planetary mixer Mixing motor adopts transmission frequency adjustment, can choose different rotational speed according to different process, different viscosity.
The vacuum planetary mixer is excellent for preparing LiCoO3, LiFePO4, Phosphors and ceramic slurry without gas bubble.
Features
1. Adopt the industry leading soft sealing process, which can maintain the state of - 0.098mpa for more than 24 hours;
2. Adopt double precision guide pillar support, cylinder to push can body open and close, humanized design, precise and efficient;
3. The barrel body is made of 304 stainless steel with high quality. After finishing by large horizontal lathe, it is polished by precision automatic polishing machine to ensure high precision;
4. Double dispersing paddle design, make the material up and down and all around billow, make the slurry mix quickly and evenly;
5. The mixing motor adopts gearbox frequency conversion adjustment, and can select different speed and torque according to different process and viscosity;
Specifications
Model |
SIMY-PVM-5L |
Source voltage |
AC 220V/110V, 50HZ/60HZ |
Power |
3500W |
Dispersion speed |
0-1400RPM, Through the inverter speed control |
Mixing speed |
0-70RPM |
Effective volume |
5L |
Design volume |
9L |
Mixing barrel opening mode |
The gearbox drives the barrel up |
Mixing barrel size |
Φ260mm*180mm H |
Mixing time set |
It has timing function, and can set time 0-99 (H) at will. It can stop running automatically and keep vacuum state |
Weight |
350kg |
Dimension(H*L*W) |
1.1m L×0.7m W×1.3m H |
Warranty |
One Year limited warranty with lifetime support |
