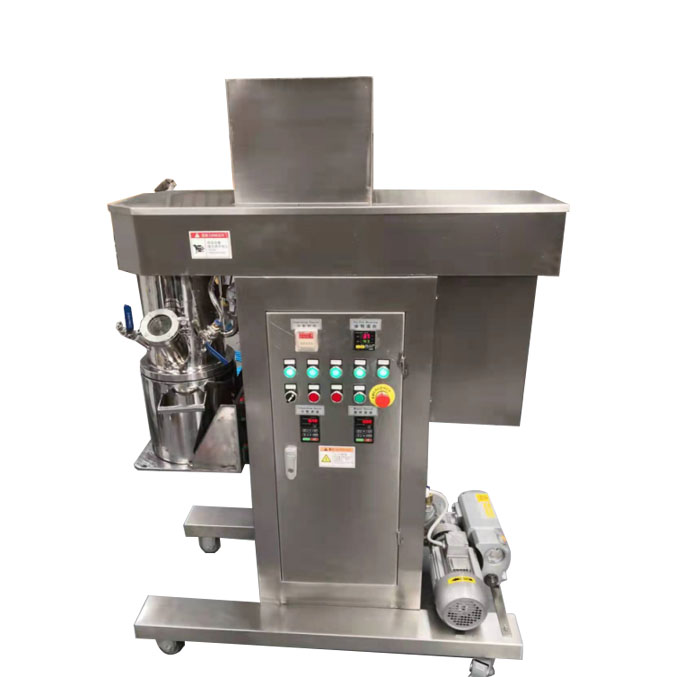

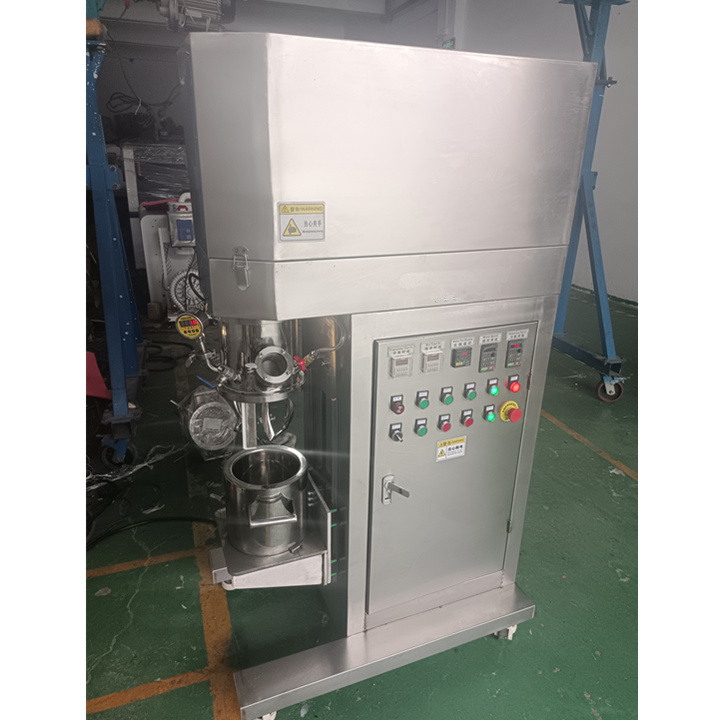

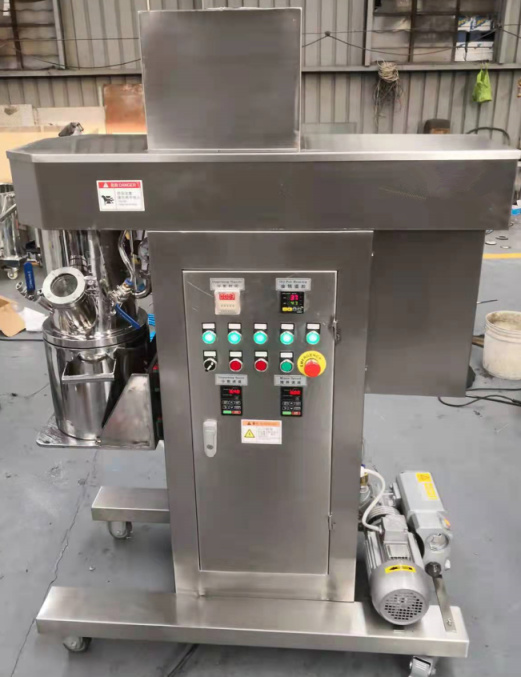

Lab 1-5L Small-scale Planetary Mixing Machine for Different Viscosity Slurry
This lab planetary mixer Mixing motor adopts transmission frequency adjustment, can choose different rotational speed according to different process, different viscosity.
The vacuum planetary mixer is excellent for preparing LiCoO3, LiFePO4, Phosphors and ceramic slurry without gas bubble.
Specification
1.Basic technical parameters |
|
1.1 Product name, specification and model |
A. Planetary mixer;B.Specification and model: SIMY-XXJ-2L /5L |
1.2 Basic structure |
A,electric pot body lifting type; B. Double stirring shaft |
1.3 Barrel body (mixing barrel) |
A. Design volume: 2L/5L; B. Effective volume 1L/3L. |
A. Cylinder material:SUS304; B. Heating power: 0.8KW C.The mirror surface is polished after turning the inner liner wall to ensure good roundness; D.The upper flange plane of the mixing drum matches with the upper can-body flange E.The body can be removed. |
|
1.4 Upper barrel body(kettle cover) |
A. Material:SUS304. B.A powder/liquid feeding hopper can be opened and closed quickly; 1spotlight;With 2small windows (a spotlight and an observation hole),a vacuum pressure gauge port and other necessary connecting pipes (vacuum/vent/standby) are reserved. |
1.5 Mixing principle |
The low clearance design of the double mixing paddle ensures that there is no dead angle.The strong kneading interference movement and the up and down/left and right circulation movement of the low-speed mixing paddle ensure that the materials are fully mixed. |
1.6. 1 Revolution/stirring motor and frequency |
A.Quantity:one; B.Motor power: 0.75Kw/4P; |
converter, reducer |
C. With variable frequency governor matching with the motor. D. Supporting reducer,with reduction ratio of about I=40.26 and service factor of fa=1.55. |
1.6.2a Planetary revolution speed |
Speed: 0 to 48rpm, adjustable. |
1.6.2b Wall scraper (optional) |
Quantity: 1group; Scraping material:SUS304and Teflon; It is consistent with the rotation speed of the planet Based on design |
1.6.3 Gap referencevalue (Not mandatory) |
A. Tolerance between mixing slurry and mixing paddle: 10 ± 2.5mm; B.Tolerance between mixing slurry and bottom: 2~6mm; C. Tolerance between mixing slurry and barrel wall: 5 ± 1.5 mm; |
1.7.1 Mixing shaft / mixing slurry speed |
Speed: 0~84rpm, adjustable. |
1.7.2 Stirrer |
A. Material:SUS304; B.Quantity:two (groups). |
1.7.3 Mixer type (optional) |
A. Optional:Twist paddle |
1.8. 1 Disperse motor |
0.75KW |
1.8.2 Dispersion speed (rotation) |
High speed dispersion (dispersion speed is 3000 RPM) |
1.8.3Dispersion axis and dispersion disc |
Diameter 50 |
1.9Lifting (pot body) |
A. Electric lifting: equipped with linear guide rail and positioning device;The positioning is safe and reliable. |
