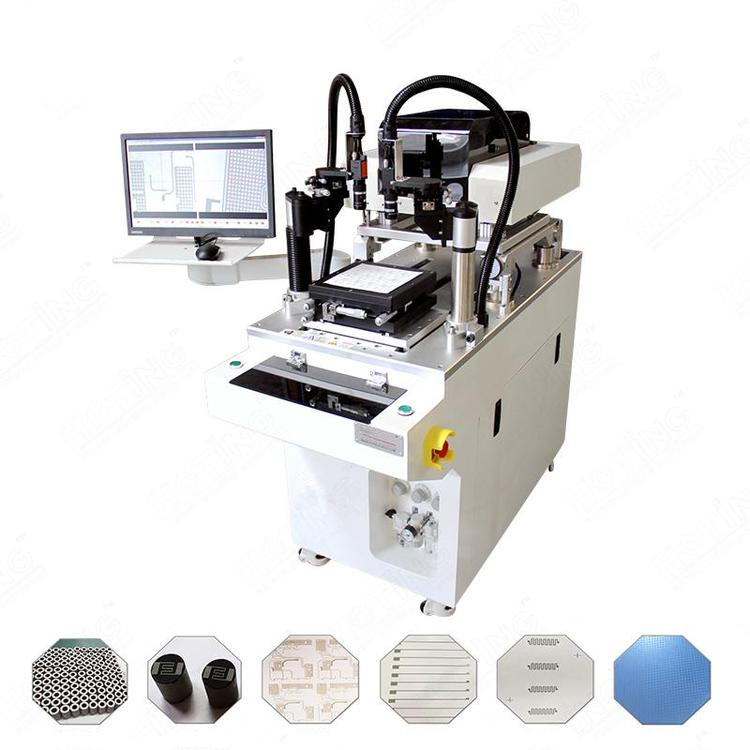

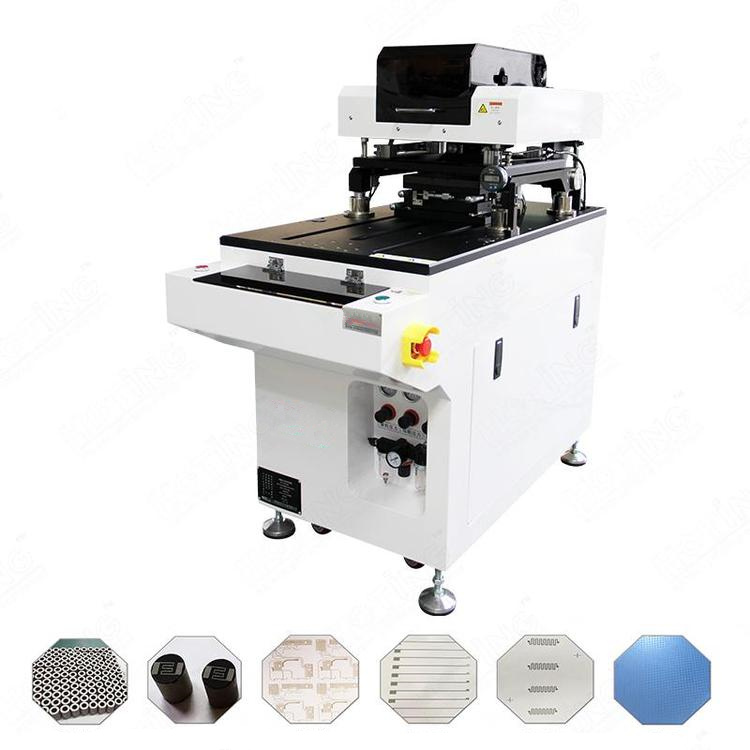

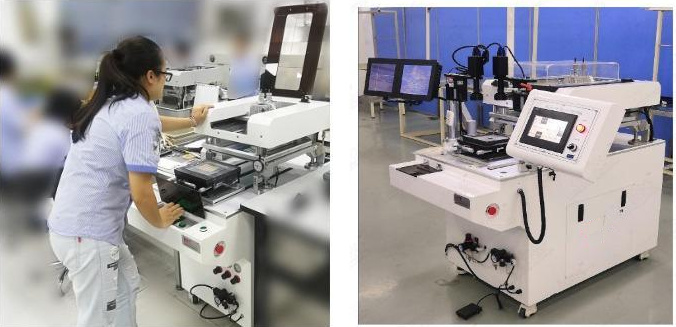

High Precision Conductive Silver Paste Screen Printer Thick Film Printing Machine
Application scope

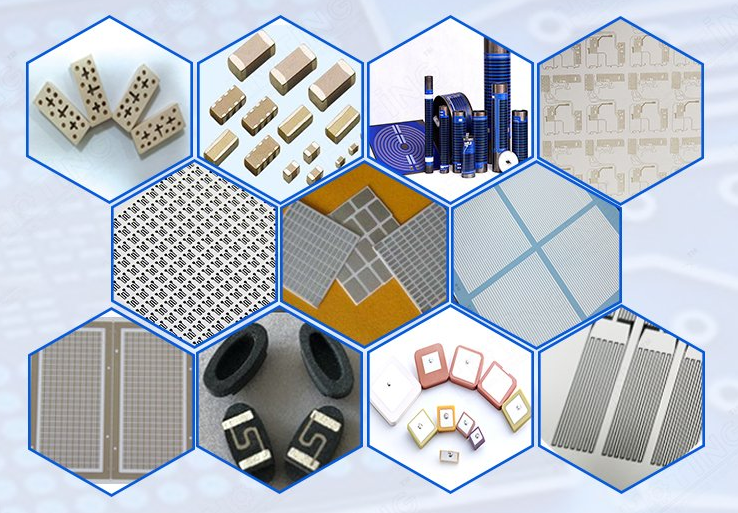

This high precision screen printer series is widely used in Ecigarette lighter ceramic heater sheet, Porous ceramic, Ceramic capacitors, Resistors, Thick film circuits, Ceramic circuits, Filters, Glazed potentiometers, Dielectric antennas, Ceramic metallization, RFID, Automotive oil level sensors, Tension sensor, Air quality sensors, Pressure sensors( Piezoresistive, Capacitive), Integrated LED lamp holders, Thick film printing machine, Technical indicators. Piezoelectric ceramic components, LED ceramic substrates, LTCC, MLCC, Optical filter, Ceramic thick film circuit,Solar wafer, Chip components and Electronic parts printing process manufacturing.
Advantages
1. High-precision printing effect can be achieved through reasonable design, precise parts processing and digital program setting.
2. Use the CCD auxiliary system to quickly find the mark point of the substrate, manually locate the position of the substrate, and ensure the accuracy of repeated printing.
3. One-key air pressure fixed screen mode.
4. High-precision imported linear guide rails help the doctor blade maintain a uniform speed.

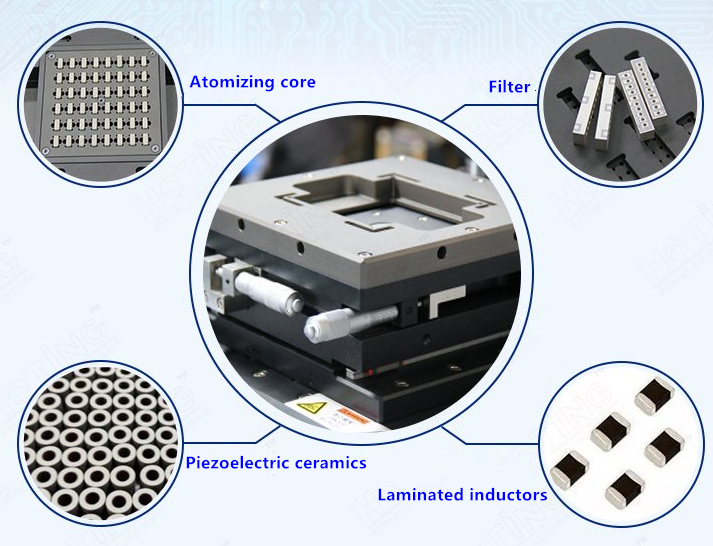

5. Printing plate fine-tuning device has X, Y, R axis independent fine-tuning mechanism, adjustable minimum scale 0.02mm, adjustment range ± 10mm.
6. Servo drive system is used to enter and exit the platen to ensure the thickness and uniformity of the printed coating.
7. Install scraper pressure regulator (adjustable from 2 to 5 kg).
8. The compact device shape and low noise design effectively improve the impact on the working space and environment. .
9. Equipped with a reliable three-sided safety protection device to ensure the safety of operators.
10. The body adopts electrostatic spraying and baking paint to ensure the durability and anti-corrosion of the body.
11. The oil-free three-point combination does not produce exhaust oil mist pollution and is suitable for use in clean rooms.
Specification
|
Model |
SIMY-1212HPB |
|
Max printing area |
120 × 120 mm |
|
Printing table size |
230 × 230 mm |
|
Printing speed |
500cycle/h |
|
Max frame size(Out) |
320 × 320 mm |
|
Material thickness |
0 - 50mm |
|
Printing pressure |
0 - 0.5MPA |
|
Squeegee driven |
A.C Motor & Ball Screw |
|
Squeegee running speed |
0 – 250 mm |
|
Squeegee angle |
60°- 90° |
|
Printing table driven |
A.C Motor |
|
Printing table adjust |
X/Y = ±10mm Z = 0–50mmθ= 3° |
|
Printing table accuracy |
In/Out ±10µm |
|
Printing table flatness |
±10µm |
|
Repeat printing accuracy |
±5µm |
|
Frame fixing |
Cylinder Clamp |
|
Printing material fixed way |
Suction by Ring Blower |
|
Air pressure |
0.6MPA |
|
Weight |
Approx. 460kg |
|
Power |
220V × 1ph × 1kW |
|
Dimension(W × D × H) |
670 × 1150 × 1200 mm |
|
★ Can be customized based on customer requirement. |
|
Option:
1. Porous ceramic adsorption platform
2. CCD auto alignment system
