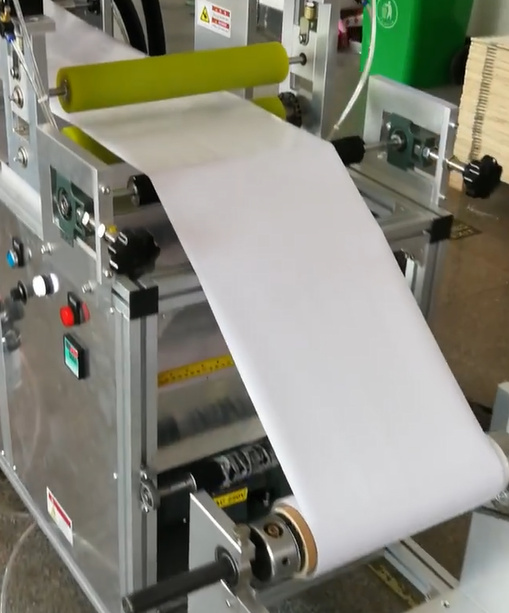

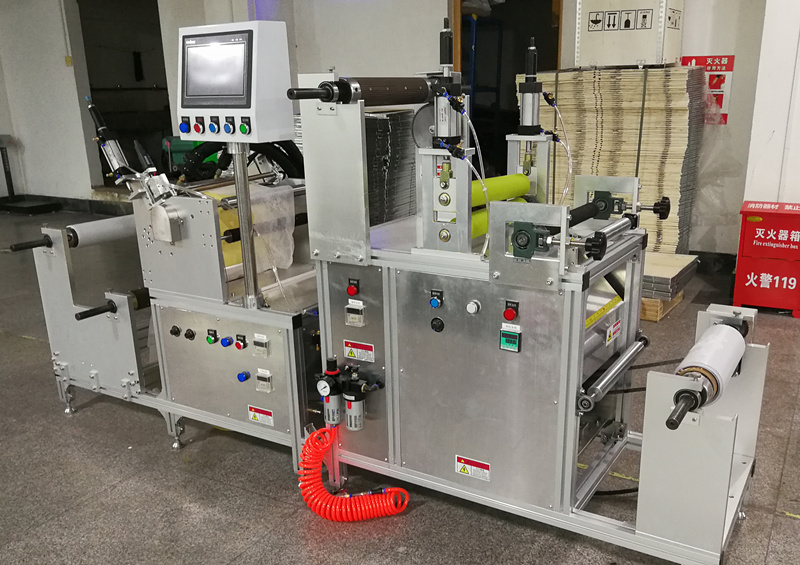

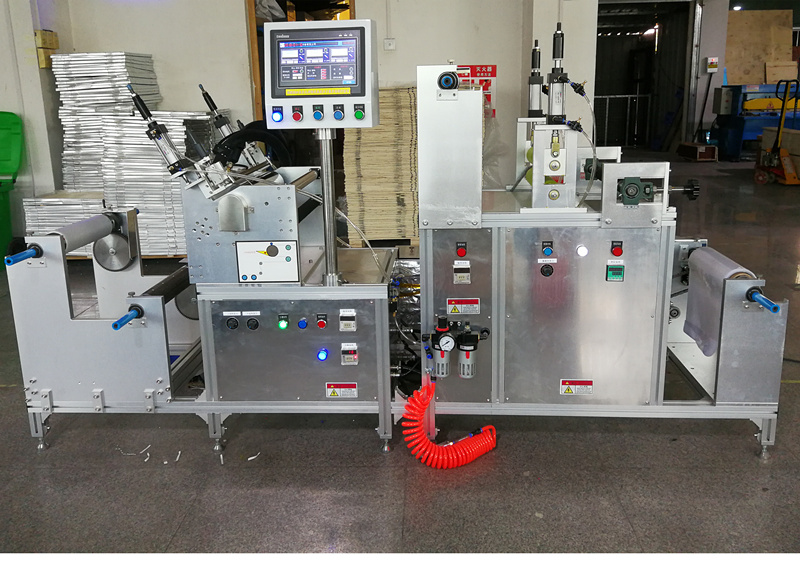

Customizable Roll To Roll Coater Hot Melt Glue Coating Machine
This coating machine is suitable for all kinds of paper/cloth/leather/PET/aluminum foil/copper foil, etc.
The whole process structure of the machine:
discharging (raw material)---gluing---cooling---film---winding
Specification
| Model | SIMY-HMGR2R |
|
Discharge width |
width 100-600MM |
|
Coating width |
100-500MM |
|
Glue feed |
gear pump |
|
Hot melt tank |
with adjustable temperature cylinder |
|
Coating thickness |
0.01-2mm |
|
Rear film |
rubber coated roll |
|
Discharge tension |
with adjustable tension control |
|
Winding motor |
variable frequency motor |
|
Winding diameter |
diameter 300MM |
|
Coating speed |
1-50 m / min |
|
Cooling device |
water cooling + air cooling |
|
Equipment power |
220V Frequency, 50Hz |
|
Equipment power |
3800W (heated state) |

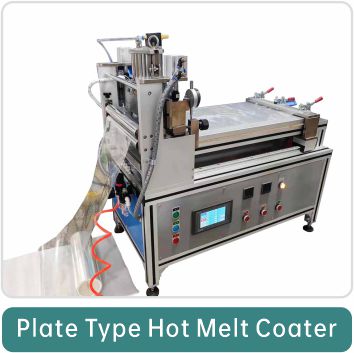

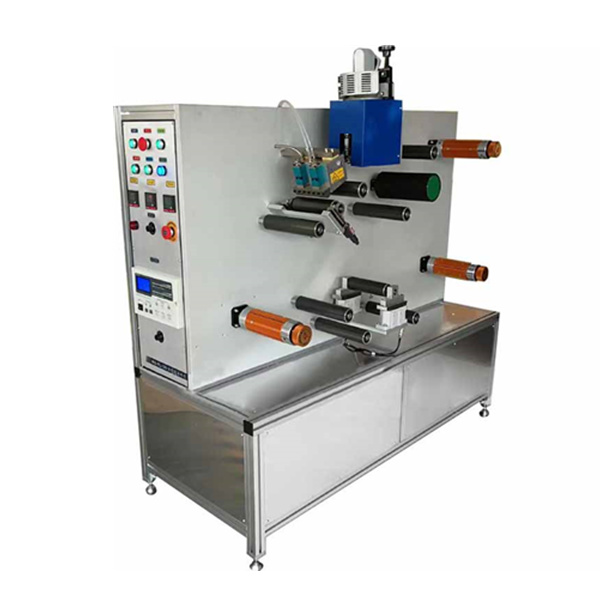

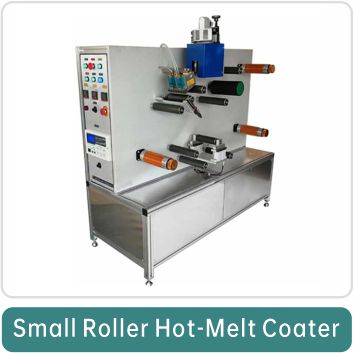

Other hot melt coaters

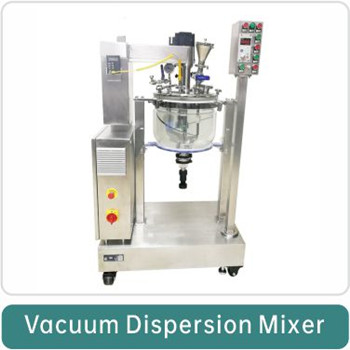

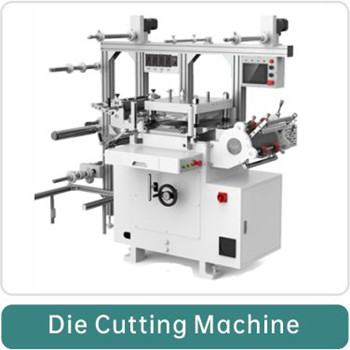

You might also need the following compatible upstream and downstream machines.
