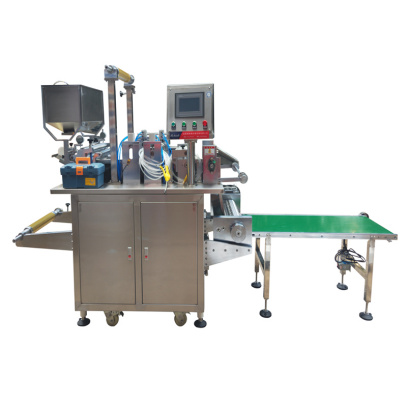

Hydrogel Coating Machine Fever Cooling Patch Antipyretic Paste Coater
It can adapt to multi-specification products by changing the laminating axis.
The current routine of antipyretic stickers: 50*120mm 40*110mm.
This antipyretic paste hydrogel coating machine is a composite coating machine used to produce gel products. The modified type product takes the antipyretic paste as an example. Its product composition is mainly composed of three parts: anti-sticking layer, drug store gel Layer, backing layer.
A. Anti-adhesive layer: the transparent protective layer of PC release paper, a polyester protective film attached to the surface of the patch, medical embossed plastic film, peeled off before use, used for anti-sticking and moisturizing.
B. Pharmacy gel layer: Its main part is a frame structure composed of polymers, with a hydrophilic polymer gel with good energy conversion function as a carrier, and a variety of natural cool and aromatic plant extractants are added to it , Can effectively contain water, natural Chinese medicine ingredients, transdermal absorption enhancer, etc. It has the dual effects of physical cooling, traditional Chinese medicine conditioning and nursing. At the same time of rapid physical cooling, it can effectively reduce the symptoms of fever and protect the brain.
Specification parameters
|
Production speed |
5M/min |
|
Coating width |
480 |
|
Diameter of material roll |
500-700 |
|
Power |
0.4KW |
|
Power supply |
three-phase 220V |
|
Size |
2650x1100x1700 (LxBxH), 2.3 square meters (including conveyor belt) |
|
Weight |
1200kg |
|
Equipment power |
servo control system |
|
Cross cutting |
adopt hob type (servo system) |
|
Unwinding |
with tension control |
|
Control |
touch screen (Kunlun Tongtai) |
|
Appearance |
The equipment is made of 304 stainless steel protection (medical standard) |
|
Distribution roll die size |
50*120mm (one piece) |
|
Vertical cutter installation |
11 |
|
Toolbox |
1 (equipped with a thickness gauge, a set of Allen wrenches, a hob adjustment wrench, a hob separation crowbar, a batch of spare screws, a screwdriver, 3 air pipe connections, ) |
|
Air shaft |
2 |
|
Maintenance |
Clean the operating part of the equipment with alcohol and anti-rust oil to ensure that the equipment does not rust. |
