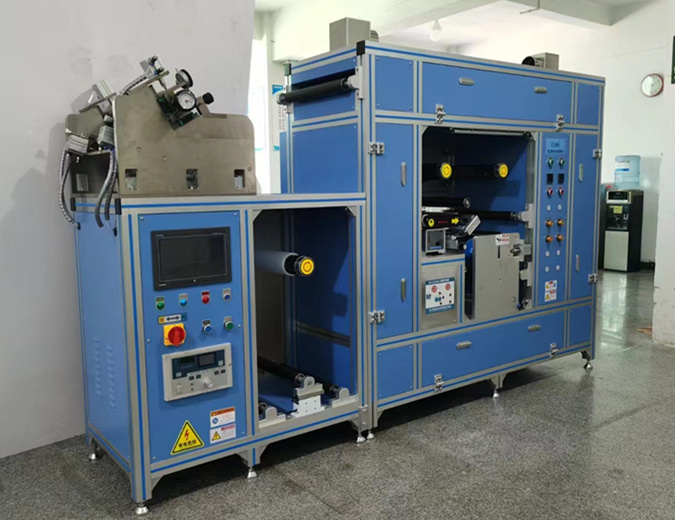

Graphene Coating Machine Graphene Heat Conduction Film Coater

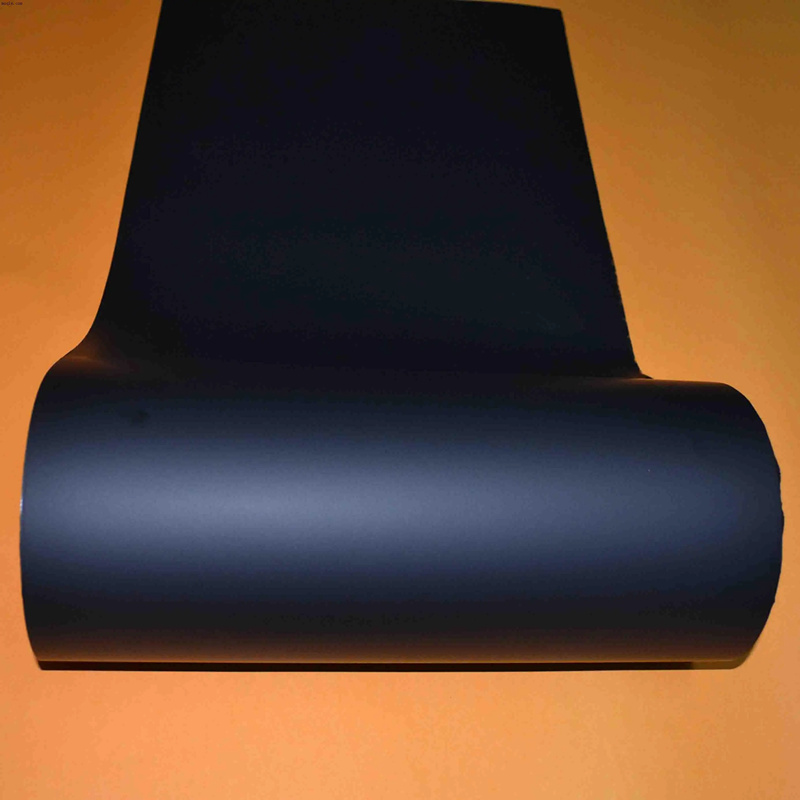

It is applicable to the precise coating production of high thermal conductivity graphene heat conduction film and graphene heat conduction film in the fields of smart phones, tablet computers, smart VR, planetary circuits, electrothermal painting, floor heating film, etc. The coating machine has better price and higher production efficiency
Specification
|
Control system |
Independent research and development system |
|
Uniform coating |
＜5% |
|
Coating width |
Effective coating width100-380mm |
|
Coating thickness |
0.005-3MM（wet film） |
|
Coating typoe |
Doctor blade |
|
Tension control |
Automatic tension adjustment (according to the membrane tension required to adjust) |
|
Oven length |
10meters(Back to type) |
|
Dryingoven temp |
Normal temperature ~120 degrees (can be segmented constant temperature) |
|
Heating method |
Electrical heating |
|
Oven wind force |
Adjustable |
|
Deviation correcting device |
Automatic rectifying of winding |
|
Exhaust air system |
Suction is adjustable |
|
Production speed |
1-20 m/min |
|
Equipment air pressure |
6 KG/cm2 |
|
Power supply |
380V 50Hz |
|
Equipment power |
10KW |
|
Dimension |
2700*1300*1800mm |
