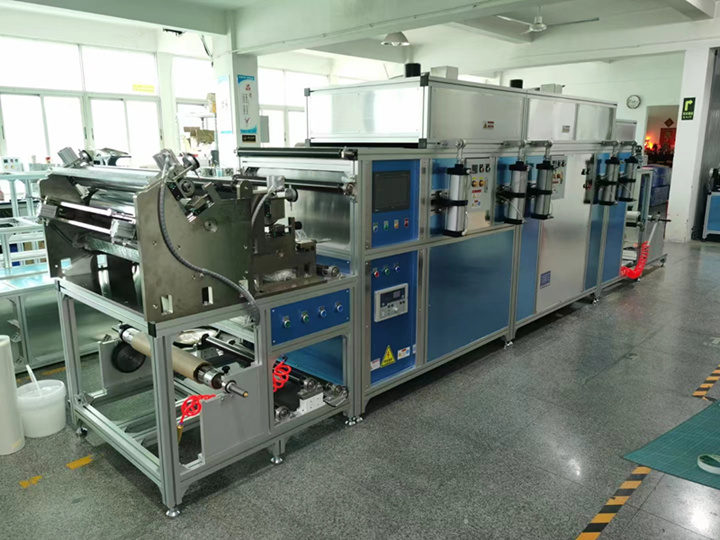

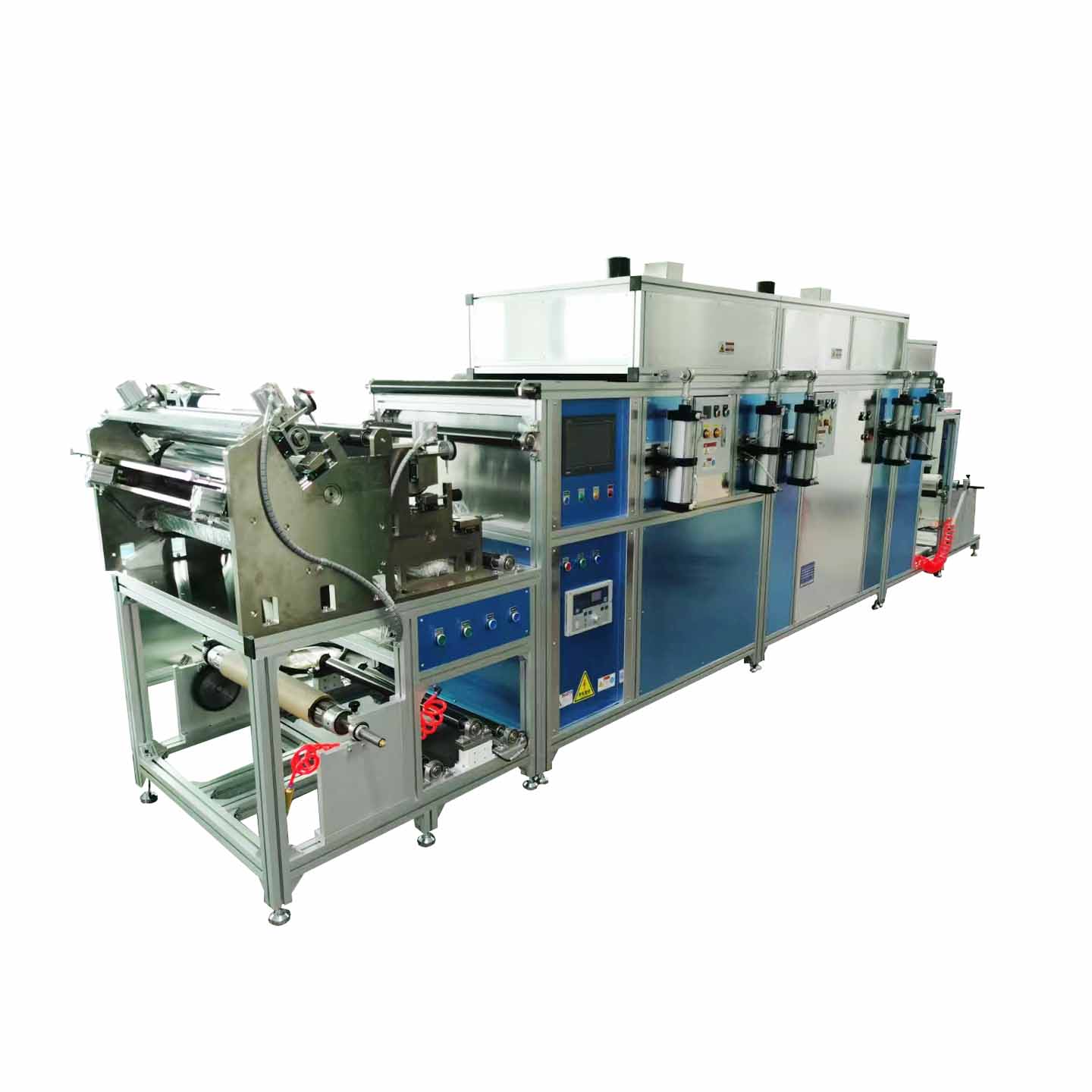

Customizable Coating Line Solvent Coater Machine With Oven
Solvent coating machine with oven, temperature up to 250. The coating width and oven length can be customized. Suitable for all kinds of solvent coating.
| Specification Parameters for coating machine | |||||
| Control system | self-developed PLC touch screen | ||||
| Coating width | Effective coating width 550mm, rolling width 600mm | ||||
| Coating method | Doctor blade | ||||
| Oven length | 2m, can be customized | ||||
| Temperature | normal temperature ~180C, can also be customized to 250 C | ||||
| Blower fan | Normal 2, speed adjustable, anti-explosion optional | ||||
| Coating speed | 0-5 meters/min adjustable, stable operation at low speed | ||||
| Tension control | Automatic tension | ||||
| Winding device | Automatic winding | ||||
| Cutter | Flat cutter | ||||
| Power supply | 380V, 50/60Hz, 30KW (peak value) | ||||
You might also need the following compatible upstream and downstream machines.
