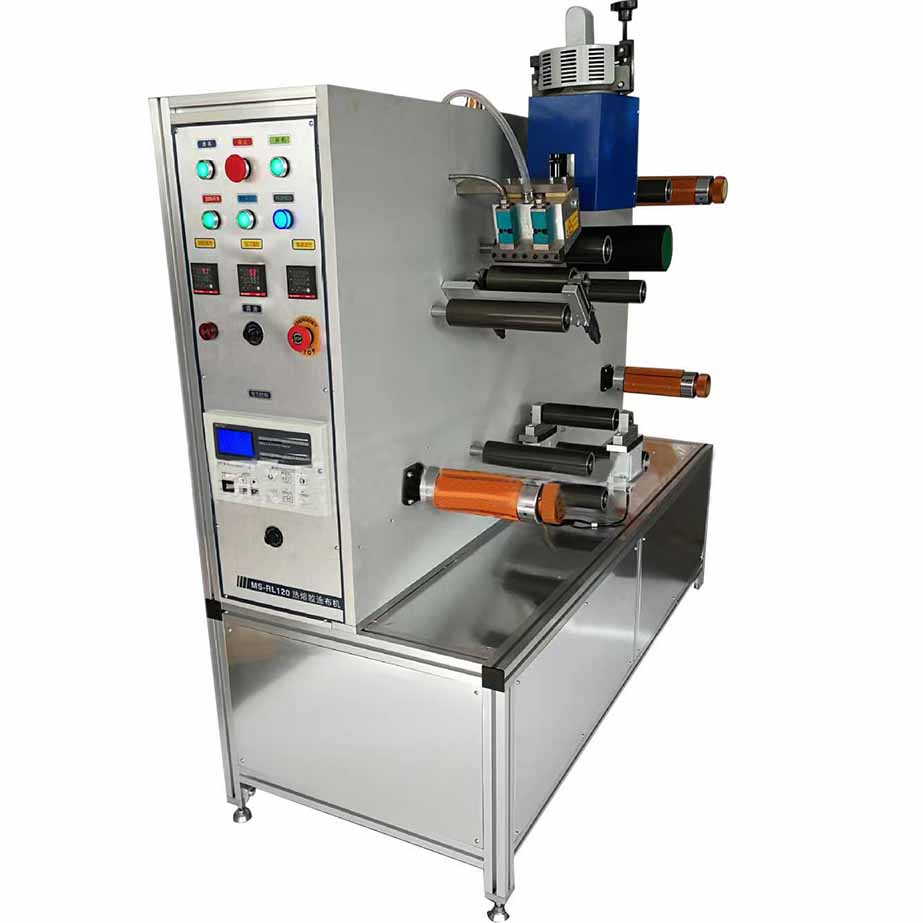

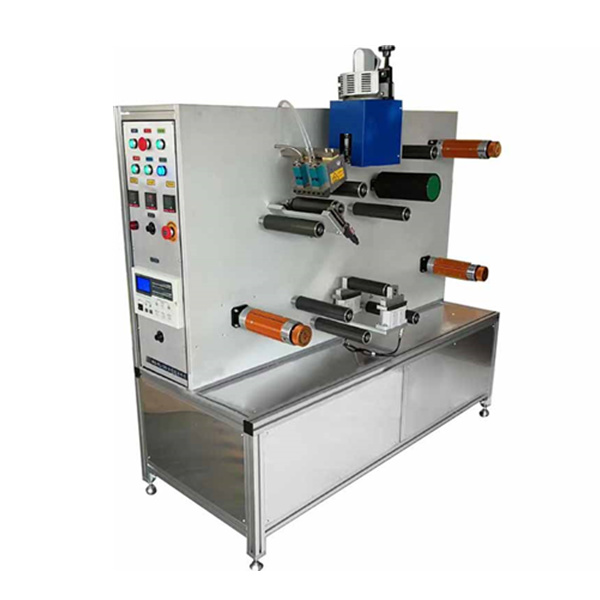

Small Lab Roll To Roll Hot-Melt Adhesive Coater
Equipment introduction

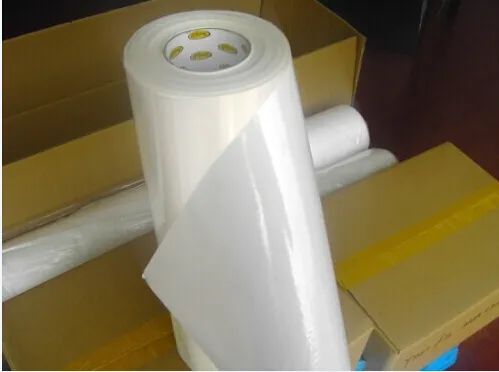

Small hot melt adhesive coater is suitable for roll to roll material coating, film covering and integrated automatic production hot melt adhesive coater. It is suitable for coating PET, cloth, paper, aluminum film, copper film and other roll packaging materials. The machine is designed with the advantages of full-automatic control, one button automatic tension control, automatic coating, automatic temperature constant, automatic film covering, automatic winding, etc.
Specification
|
Control system |
Integrated key panel |
|
Coating method |
Roll to roll |
|
Apply wide width |
120mm（10-120mm） |
|
Coating head |
Extrusion type (thermostat/constant temperature) |
|
Molten cylinder capacity |
1KG (Temperature adjustment/constant temperature) |
|
Retracting and retracting bracket |
Manual expansion shaft |
|
Discharge winding diameter |
380MM |
|
Winding diameter |
380MM |
|
Film coated coil diameter |
380MM |
|
Lamination station |
Automatic film coating |
|
Tension control |
Fully automatic constant pressure |
|
Temperature control |
Room temperature ~220 degrees |
|
Air pressure |
07mpa |
|
Motor control |
Variable frequency motor |
|
Speed |
1-10 m/min |
|
Power supply |
220V 50Hz |
|
Power |
1000w |
|
Dimension |
1500*620*1380mm(LWH) |
