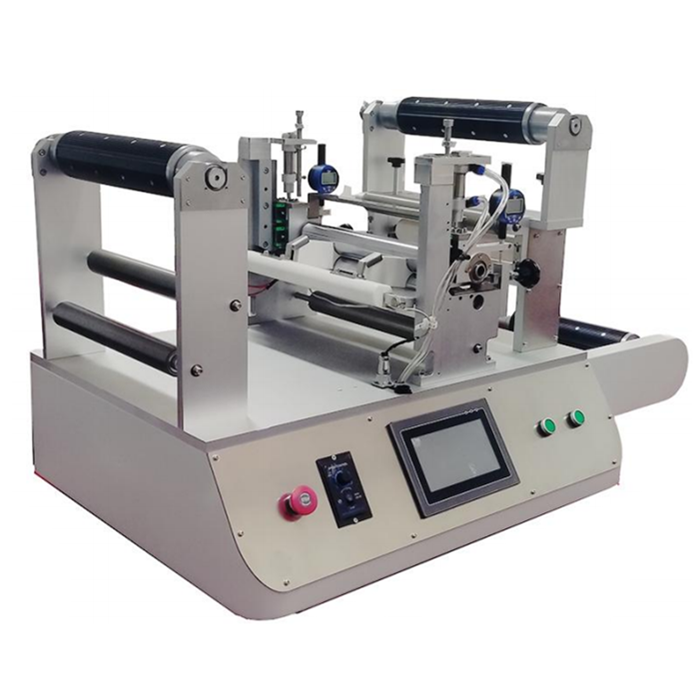

Customizable Small Automatic Rewinding And Unwinding Coater Single Side Coating Machine
Applicable scope of laminating machine
Is a suitable for commercial, office, computer inkjet, trademark production, printing and packaging, electronics and other industries of cold mounting economic laminating machine. Its laminating products are extensive, which can be used to protect the surface of the product and the laminating of the product; Products include such as packaging box, advertising painting, tag listing, PVC sign sheet, glass sheet, all kinds of product lenses, metal sheet, acrylic, PC board, PVC panel, metal sheet, UV sheet, light guide plate, stainless steel, aluminum plate, film and other sheet surface cold mounting film.
Role

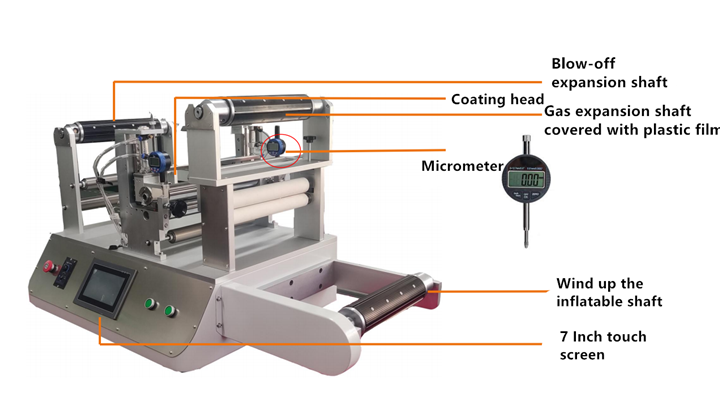

In order to avoid pollution, corrosion and scratch in the process of production and processing, transportation, storage and use, and protect the original smooth and shiny surface and lens from burst, etc. This series of machines is composed of rubber sticks, frames, power transmission and control devices, film brackets, etc. It has the characteristics of smooth coating, no wrinkles, no bubbles, simple operation and long service life.
Specification
|
Coating accuracy |
Thickness accuracy +5um/ customizable |
|
Temperature sensing accuracy of hopper |
No heating/heating 0-300℃ accuracy 0.3%FS/ sh 1℃ |
|
Cover film configuration |
Pressure (customizable) No pressure |
|
Receiving configuration |
The outside diameter of the balloon shaft can be customizedφ75 |
|
Speed |
0-15m/min Adjust the precision ≤0.2% according to the glue curing time |
|
Roll-in and roll-out configuration |
Bearing 20kg rolling material diameter ≤300mm; Wide width: can be customized 300 or 500mm |
|
Mode of operation |
Manual/automatic |
|
Power supply |
Basic voltage: single-phase 220V1.5KW(Change voltage according to demand) |
|
Corona machine |
0-3000Woptional |
