Small Laboratory Precision Slot Die Coating Machine

Slot-die coating is the gold standard for scalable thin-film processing. The method is commonly used in manufacturing, and can achieve high coating speeds with excellent accuracy and very little solution waste.

Please send your inquiry to joyhuang@simymachine.com

  • Item No.:

    SIMY-SLP
  • Lead Time:

    10 days
  • Payment:

    Credit Card, Paypal, T/T , Western Union, LC
  • Warranty Period:

    1 year
  • Customizable:

    Yes
  • Product Detail

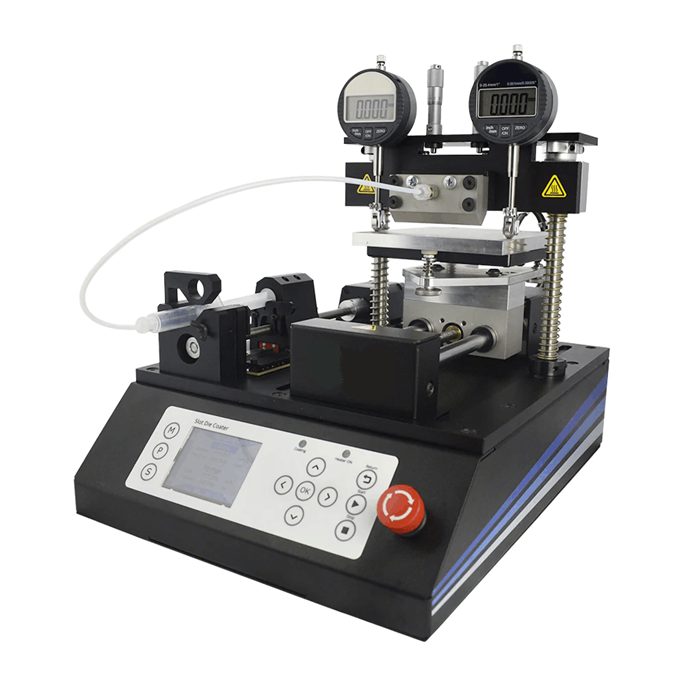

Small Laboratory Precision Slot-Die Coating Machine

What is Slot-Die Coating?

Compatible with both roll-to-roll and sheet-to-sheet deposition processes, slot-die coating is one of the best techniques available for scalable thin-film deposition. It gives highly accurate film uniformity, has a wide processing window, and is an extremely reliable method for wet thin film coating. The theory behind slot-die coating is very straight-forward; as a pre-metered technique, control of thickness is simply governed by the solution flow rate and substrate speed.

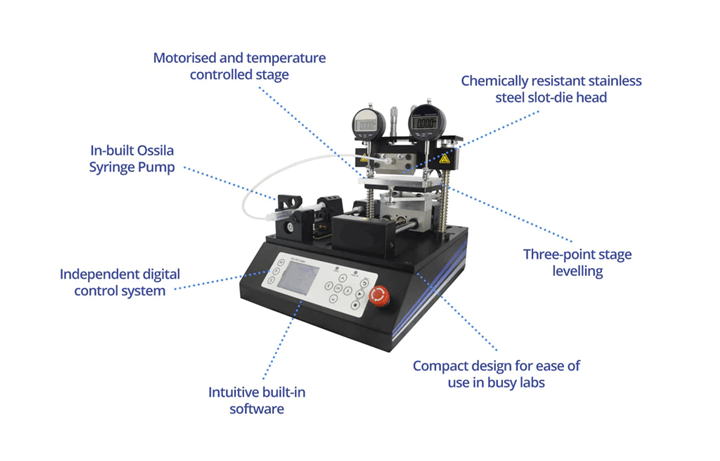

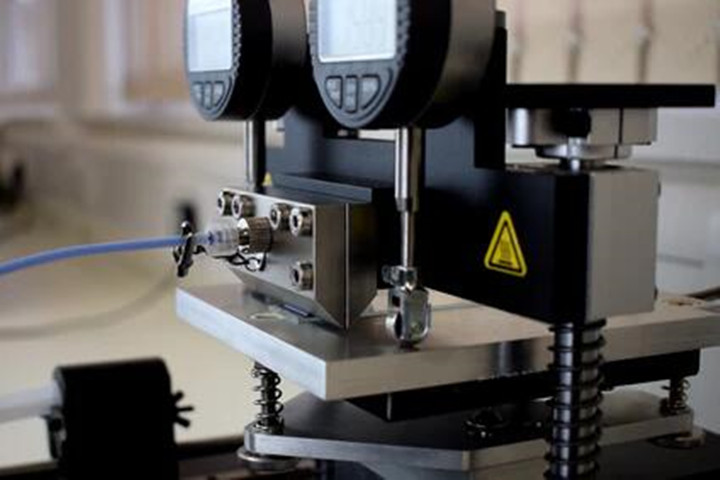

The most important part of any slot-die coating machine is the head, which features a narrow slot through which the solution flows. The rate of flow is precisely controlled to ensure an even coating. TheSIMY- Slot-Die Coater uses a syringe pump to do this, and is capable of producing coatings with variations lower than 5% across large areas and a variation of 0.05% over 100 mm. The wide processing window ensures stable defect-free deposition for various solution viscosities, and the presence of any coating defects can be eliminated by varying several geometric parameters, which do not themselves alter the coating thickness.


Slot-Die Coating Applications

There are a significant number of applications for slot-die coating, including:

· Organic Photovoltaics

· Organic Field-Effect Transistors

· Conductive Polymers

· Nanowires and Nanotubes

· 2D Materials

· Organic and Perovskite Light-Emitting Diodes

· Perovskite Photovoltaics

· Electrolytes and electrodes for Li-ion batteries

· Dye-Sensitized Solar Cells

Slot-die coating is the gold standard for scalable thin-film processing. The method is commonly used in manufacturing, and can achieve high coating speeds with excellent accuracy and very little solution waste. The SIMY-Slot-Die Coater brings this to the lab.

Slot-Die Coating in Research

Although slot-die coating is an extremely powerful technique, it is primarily considered to be an industrial method. As such, most slot-die coaters are designed to cater to industry rather than academia, and even relatively simple systems come at a high price. These systems are often larger and more complex than what is required by researchers who are just starting to develop the processing techniques required for depositing thin films.

The SIMY-Slot-Die Coater gives researchers access to a slot-die coating, enabling them to optimise ink formulation and processing parameters without the need for large print runs. Ultimately, this helps ensure that their findings can be scaled-up for real-life applications and makes slot-die coater ideal for pilot-level production and scale-up process feasibility tests.


Relevant products

Precision Flat Slot Die Coater                 Customizable Slot Die Coater

Slot Die Hotmelt Adhesive Coater                Double Layer Slot Die Coater

Related products
Hot-Melt Adhesive Coater Small Lab Roll To Roll Hot-Melt Adhesive Coater
Small hot melt adhesive coater is suitable for roll to roll material coating, film covering and integrated automatic production hot melt adhesive coater. Please send your inquiry to joyhuang@simymachine.com
UV Coating Machine Desktop UV Coating Machine Roller UV Coater
The UV coating process involves applying a liquid coating to the surface of the printed material and then exposing it to UV light to cure the coating. Please send your inquiry to joyhuang@simymachine.com
Leather Coating Machine Small Proofing Machine for Leather Experimental Coating Artificial Leather Making Machine
Two times of coating: the first time of grain glue, the second time of hand glue. Efficient production of high-quality artificial leather. Please send your inquiry to joyhuang@simymachine.com
Automatic film coating machine Experimental Small Coating Machine Wire Rod Coating Testing Machine Automatic Film Coating Machine
Laboratory small coating machine can be used in paper, plastic, metal, PVC, PET, cloth, aluminum alloy plate and other plane materials coating experiments. Widely used in various fields, such as agriculture, building materials, environmental protection, biological industry. Please send your inquiry to joyhuang@simymachine.com
Sheet Roller Coater Sheet Coater Wire Rod/Roller Coater
This series coating-machine is mainly suitable for the production of transfer film, transfer paper coating, aluminized paper coating, decorative paper, thermal paper, trademark paper, adhesive tape, lithium battery electrode and electronic circuit board and other products with paper, metal foil, film, nylon and non-woven fabric,widely used in vario1

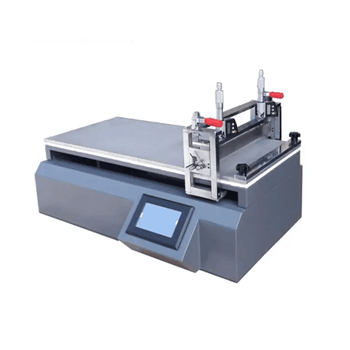

Vacuum Suction Sheet Coating Machine Self-Selected Coating Head Stainless Steel Vacuum Suction Sheet Coating Machine
