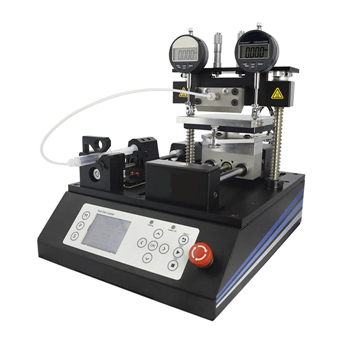

Precision Flat Slot Die Coating Machine for OLED Film Research

This is a precision flat slot die with a 100m width coating head.  It is an excellent tool to research film coating for OLED, perovskite solar cells, fuel cell proton exchange membrane, and the battery electrode.

Please send your inquiry to joyhuang@simymachine.com

  • Item No.:

    SIMY-PFS
  • Lead Time:

    10 days
  • Payment:

    Credit Card, Paypal, T/T , Western Union, LC
  • Warranty Period:

    1 year
  • Customizable:

    Yes
  • Product Detail

Precision Flat Slot Die Coating Machine for OLED Film Research


Product Description

This is a precision flat slot die with a 100m width coating head.  It is an excellent tool to research film coating for OLED, perovskite solar cells, fuel cell proton exchange membrane, and the battery electrode.


Specifications

Working Power

110V - 240V AC 50/60Hz for worldwide use

Driving by 24VDC motor, which can be used under Ar atmosphere glovebox.

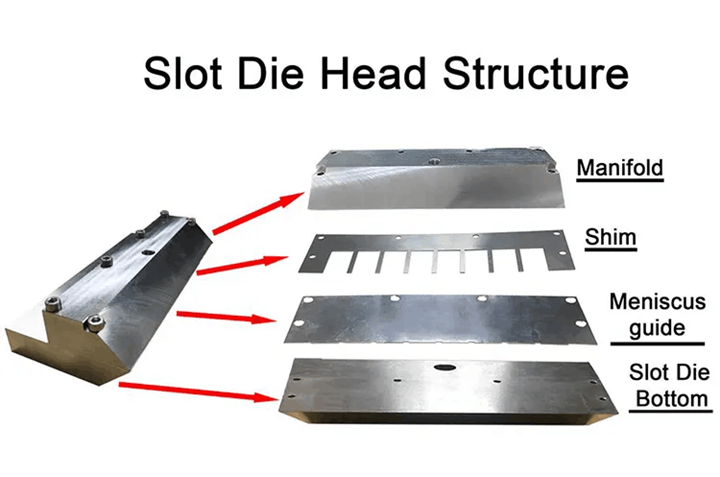

Slot Died head

100mm width slot die head capacity

50 mm and 25 mm width slot coating head is available at the extra cost

Min. coating thickness: 5 microns  ( depended on slurry viscosity)

Syringe Pump

Built-in syringe pump with the variable speed at the range from 0.01mm/s to  5.0 mm /s

Three syringe containers are included with 10ml,20ml,30ml respectively.

Micrometer Head


Two-micrometer heads are built-in travel rod of the coater to adjust the gap between slot die and substrate

Digital micrometer head is available as an option at extra cost

Travel Speed & Length

Travel Speed: 1 - 10 mm/sec variable via touch screen control panel

Max. Coating area: 100 W x 100mm L

Heated Vacuum Chunk

Vacuum chuck made of aluminum alloy with the small hole

The small vacuum pump is built inside coater driven by 24DC motor

Vacuum chuck Area:  150mm (L) x 130mm (W)

Heating elements are installed inside chuck which can reach 120ºC Max.

Precision digital temperature controller with +/- 1ºC accuracy

One high temperature temped glass plate is put on the vacuum chuck, and substrate will be put on the top

Control Panel

4" color touch screen panel to set coating speed, heating temperature, and slurry pump speed

Product Dimensions

L440mm x W340mm x H300mm

Warranty

One year limited warranty with lifetime support

Net Weight

26 kg
