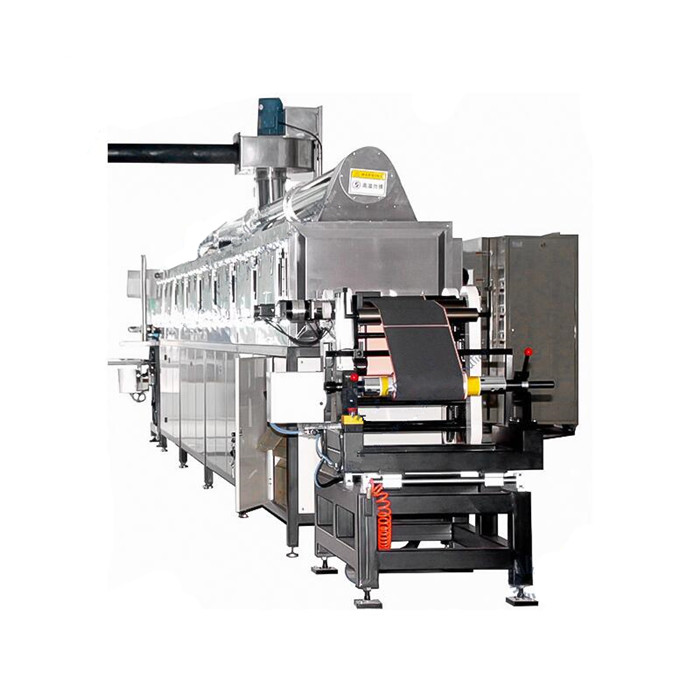

Fully Automatic Slot Die Coating Machine
Equipment use
Fully automatic coating machine for battery cathode and anode electrode making , suitable for a variety of material systems. Equipment features: adopt imported extrusion die head; die head position adopts high-precision servo full closed loop control; oven uses electric heating anti-ri.
Equipment features

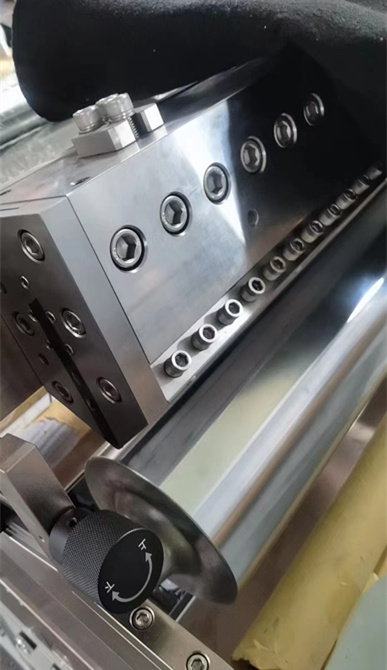

Adopt imported extrusion die head; die head position adopts high-precision servo full closed loop control; oven uses electric heating anti-riot oven (positive electrode), each oven door has a perspective window; electrode tension control, constant tension release roll, constant tension coating, drying, taper tension winding; centralized control of system parameters, human-machine interface adopts touch screen and button mode, hierarchical control, process parameters can be locked, stored and recalled.
Specifications
|
Foil thickness |
Aluminum foil (AL)11~30μm;Copper foil (Cu)6~30μm |
|
Foil width |
Aluminum foil (AL) 300-680mm;Copper foil (Cu)300-680mm |
|
Slurry viscosity |
1500~20000 cps |
|
Coating thickness |
50-150um (single side dry thickness) |
|
Coating width |
Maximum 650mm |
|
Mechanical speed |
2-50m/min |
|
Oven |
3m/zone, a total of 12 zones |
|
Temperature in the drying tunnel |
70-150℃ |
Relevant products

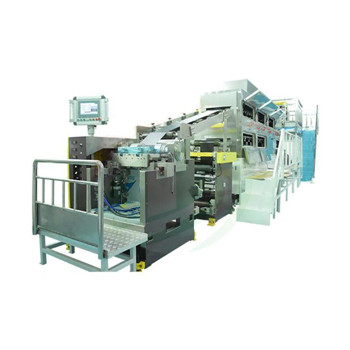

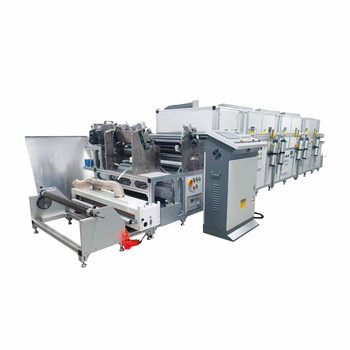

Slot Die Hotmelt Adhesive Coater Double Layer Slot Die Coater

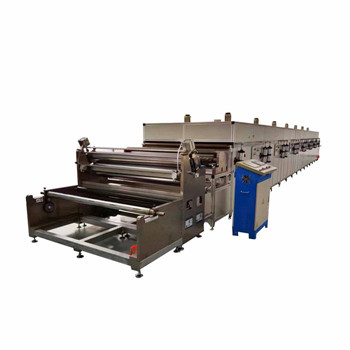

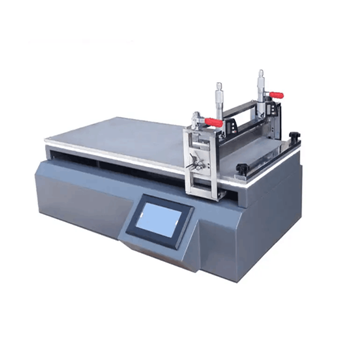

Customizable Slot Die Coater Precision Flat Slot Die Coater
