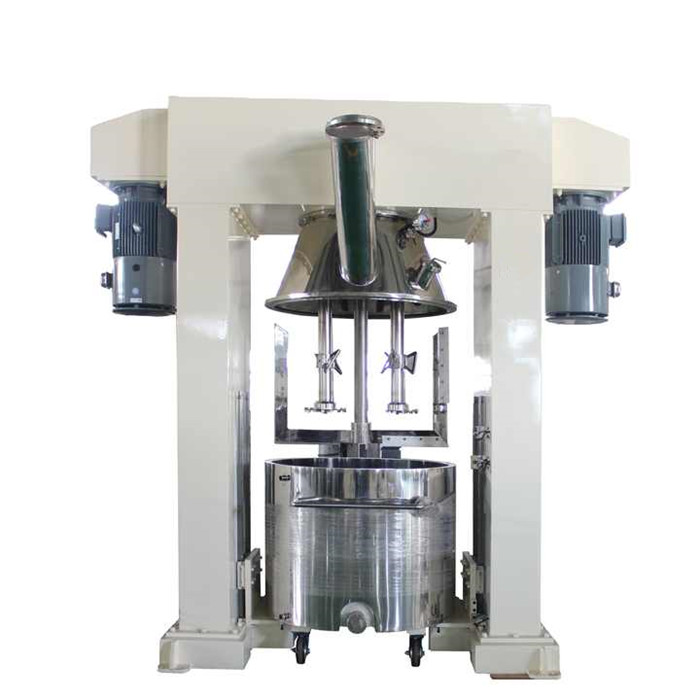

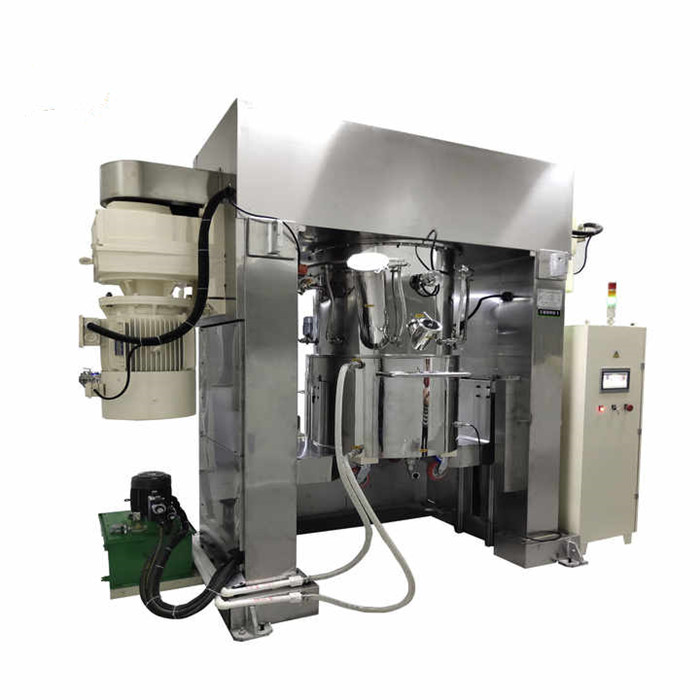

Silicon Polyurethane Sealant Viscous Liquid Vacuum Lift Double Planetary Mixer

Silicon Polyurethane Sealant Viscous Liquid Vacuum Lift Double Planetary Mixer

Product introduce

1. High line speed: The line speed can reach 25m/s, shorten the dispersing time. The particle size of battery slurry is small and has high uniformity, solving the problem of polymerization;
2. It adopts SKF Sweden's import angular contact ball bearing. the vertical and horizontal loading is bigger than the deep groove ball bearing. the carrying capacity is much higher, and bears higher rotating speed, a large increase in the mixing speed, and using life( The using life is more than 3 years under 21m/s and continuous 24hrworking);
3.0-0 assembling: precision assemble, the process tolerance of core parts is less than 30um (mixing shafts, dispersing shafts, and each hole). thus ensuring concentricity and flatness, archive the 0-0 assembling of core parts. The running is more stable, the noise outside I rang is lower than 70 dB (A);
4. High tightness, no air leakiness, and oil leakiness: 2 sets of mechanical seal plus soft. hard seals etc. the planetary
transmission box adopts a complete structure, a New design of bearing position, reasonable distribution of the bearing limit, and reduced the wearing of bearing. The load vacuum keeps above -0.092 for 24 hours, ensuring that no air leakiness and oil leakiness during the mixing
5. The gap betweentank and paddles: paddles to paddles, paddles to tank wall, paddles to tank bottom, the gap is small, scraper design under the mixing paddles,high roundness inner the tank. The deviation is less than 0.2mm;
6. Large torsion output: precision casting mixing paddles SS316 stainless steel (adopts special steel for machines bigger than 650L, the material can restore itself there is micro deformation, the mixing paddles won't deform under long time big torque running), the torque output is simulation calculated by computer.High strength, suitable for high viscosity, high solid content Positive and negative pole slurry of Lithium battery (Lithium iron phosphate, ternary, ternary high nickel, Potassium manganate, Lithium Cobaltate, etc) suitable for different process technology.

Specification
