High Viscosity Slurry Planetary Mixer High-Capacity 2-2000 L
Product introduce

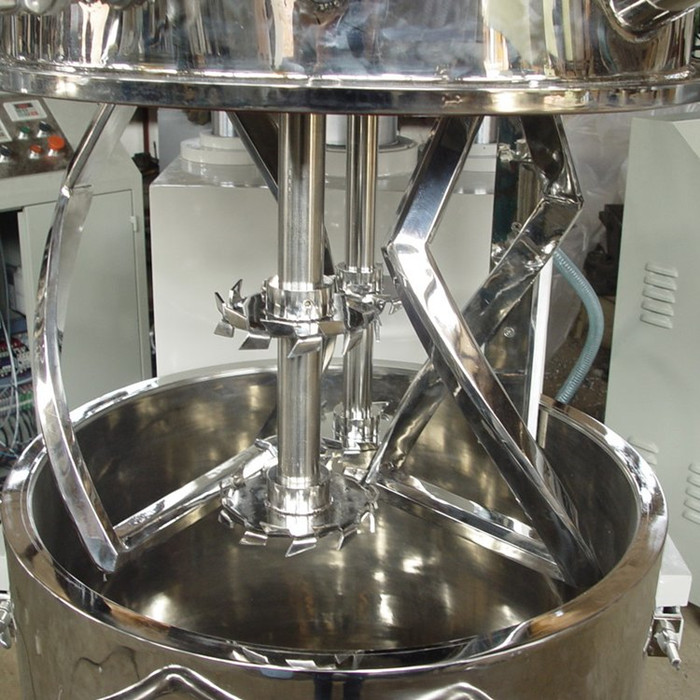

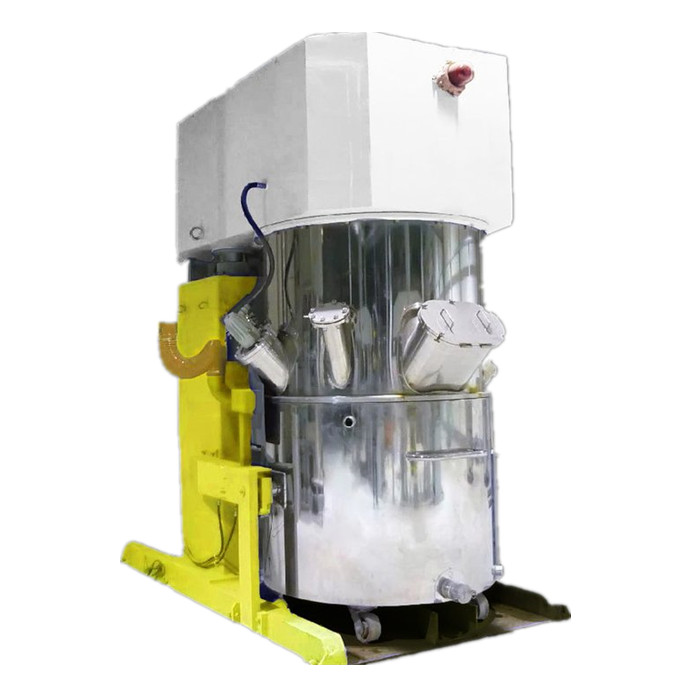

The planetary mixer is a planetary motion, efficient, and dead center free homogeneous mixing equipment. The blades of the planetary mixer rotate around the central axis of the material cylinder as a whole, while also rotating around their own axis at different speeds, causing complex movements of the material in the cylinder, thereby quickly achieving a homogeneous mixing effect. The planetary mixer is suitable for the homogeneous stirring, polymerization, sulfurization, sulfonation, dispersion, dissolution, and tempering of multi-component solid-solid, solid-liquid, and liquid-liquid materials required by the food or chemical industry. The planetary mixer is mainly used to produce 10000CP~600000CP paste like materials, such as facial cleanser, toothpaste, solder paste, lubricating grease, ink, paint, pigment, lithium battery, glass adhesive, polyurethane sealant, and other high viscosity materials.
Specification
|
Model |
Feeding volume
(L)
|
Planetary motor
(KW)
|
Revolution speed
(rpm)
|
Stirring rotation speed
(rpm)
|
Vacuum degree |
|
SIMY-2L |
1.2 |
0.75 |
0～28 |
0~100 |
-0.096 |
|
SIMY-5L |
3 |
1.5 |
0～28 |
0~100 |
-0.096 |
|
SIMY-20L |
12 |
4 |
0～28 |
0～100 |
-0.096 |
|
SIMY-50L |
30 |
5.5 |
0～28 |
0～100 |
-0.096 |
|
SIMY-100L |
60 |
11 |
0～28 |
0~100 |
-0.096 |
|
SIMY-200L |
120 |
15 |
0～22 |
0～80 |
-0.096 |
|
SIMY-300L |
180 |
18.5 |
0～22 |
0～80 |
-0.096 |
|
SIMY-500L |
300 |
30 |
0～22 |
0～80 |
-0.096 |
|
SIMY-1000L |
600 |
45 |
0～22 |
0～80 |
-0.096 |
|
SIMY-1500L |
900 |
55 |
0～22 |
0～80 |
-0.096 |
|
SIMY-2000L |
1200 |
75 |
0～22 |
0～80 |
-0.096 |
