5L Laboratory Battery Slurry Stirrer Planetary Vacuum Mixer for Cylindrical Battery

This machine is a high-efficiency equipment that integrates vacuum mixing and dispersion.

Please send your inquiry to joyhuang@simymachine.com

  • Item No.:

    SIMY-LBS
  • Lead Time:

    10 days
  • Payment:

    Credit Card, Paypal, T/T , Western Union, LC
  • Warranty Period:

    1 year
  • Customizable:

    Yes
  • Product Detail

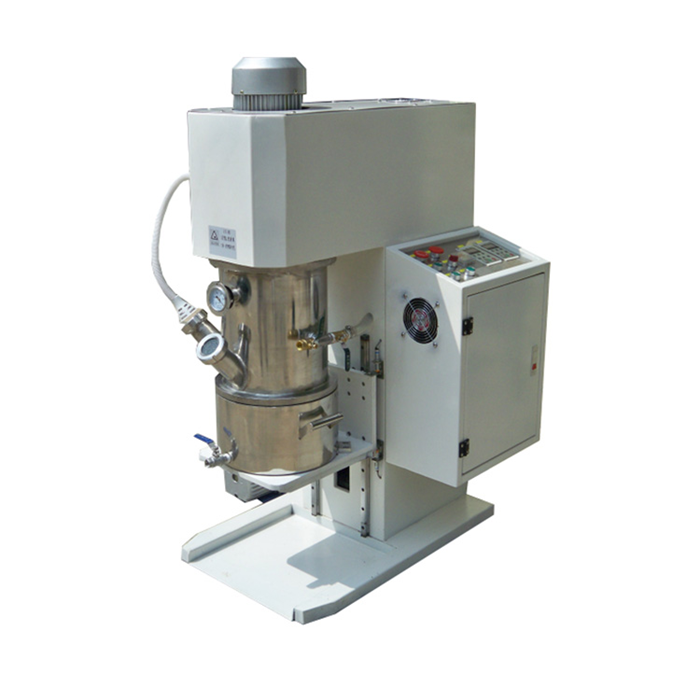

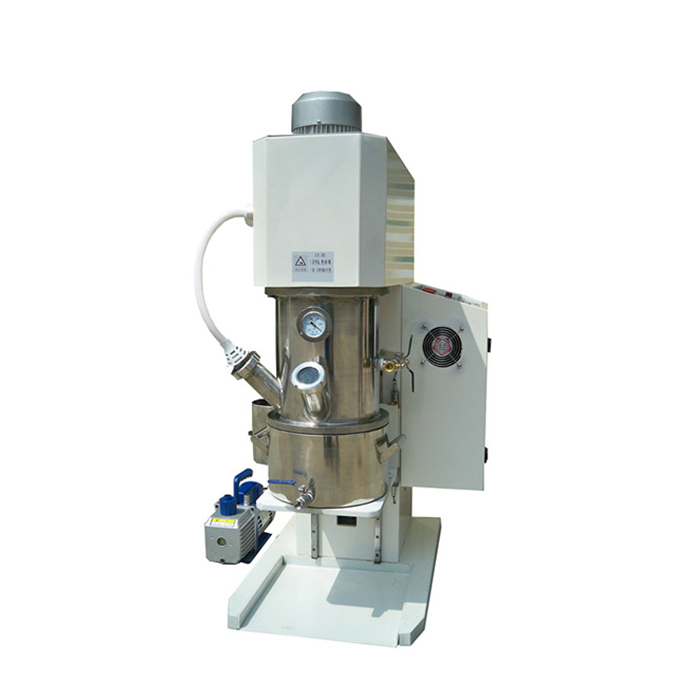

5L Laboratory Battery Slurry Stirrer Planetary Vacuum Mixer for Cylindrical Battery


Product introduce

This machine is a high-efficiency equipment that integrates vacuum mixing and dispersion. It is suitable for the battery cathode and anode electrode slurry mixing process in the lithium battery experiment process. Also, it is widely used in solder paste, silica gel, chemical industry, etc.

Specification

Power

3.5KW, 220V AC

The rotation speed

0-1400 rpm/min

Speed regulation

by frequency converter

Revolution speed

0-70 rpm/min

Effective volume

5L

Designed volume

9L

Tank opening and closing method

Geared motor driven irrigation and lifting, with water jacket.

Inside dimensions of tank

Φ260mm*180mm

Timing function

Time can be set arbitrarily 0-99 (H) set time

Other

To stop the operation automatically and maintain the vacuum state
With a mechanical vacuum meter on it

Dimension

About 1300mm*1100mm*700mm

Net Weight

About 350kg
