Beeswax Wrapper Coating Machine on Cotton for Beeswax Wraps Making
Functional description and technological process
1.1 Function description: This coater coats cotton fabric with beeswax oil, etc., and forms environmentally friendly packaging wrappers after curing in a drying oven.
1.2 Equipment technological process
1.2.1. Unwinding of coated substrate (tension control)→→Manual stop, cutting and reloading→→Drawing before coating→→Comma blade coating→→Reserved thickness measurement installation location→→ guide roller oven →→Deviation deviation at the oven exit→→Laminating unit→→Drawer roll discharge
1.2.2. Compound unwinding (overall edge correction)→→Manual cutting and replacement→→Laminating unit
1.2.3. Laminating unit →→Rewinding and cutting piece (optional)
30L hot melt tank automatically melts and mixes raw materials such as honey wax, cocoa butter, etc.
The temperature of the material tank will also melt the raw materials, ensuring uniform coating.
The dried wax wrapper can be directly wound or cut in size.
Specification Parameters
|
Control system |
self-developed PLC touch screen |
|
Coating width |
100-1000mm (customizable) |
|
Coating method |
Doctor blade |
|
Drying method |
Air-cooled dry |
|
Cooling oven length |
|
|
Temperature |
normal temperature ~120 degrees |
|
Coating speed |
0-5 meters/min (customizable) |
|
Tension control |
Automatic tension |
|
Winding device |
Automatic winding |
|
Cutter(optional) |
Flat cutter |
|
Heated cylinder |
30L |
|
Power supply |
220V, 50/60Hz, 5000-8000W |

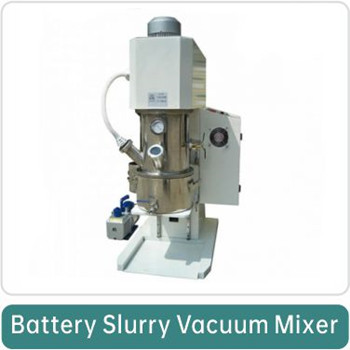

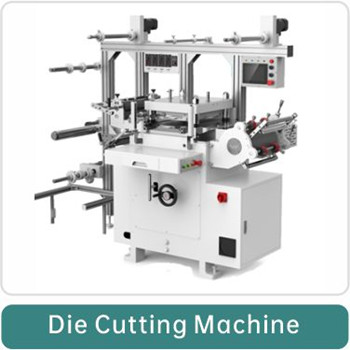

You might also need the following compatible upstream and downstream machines.
