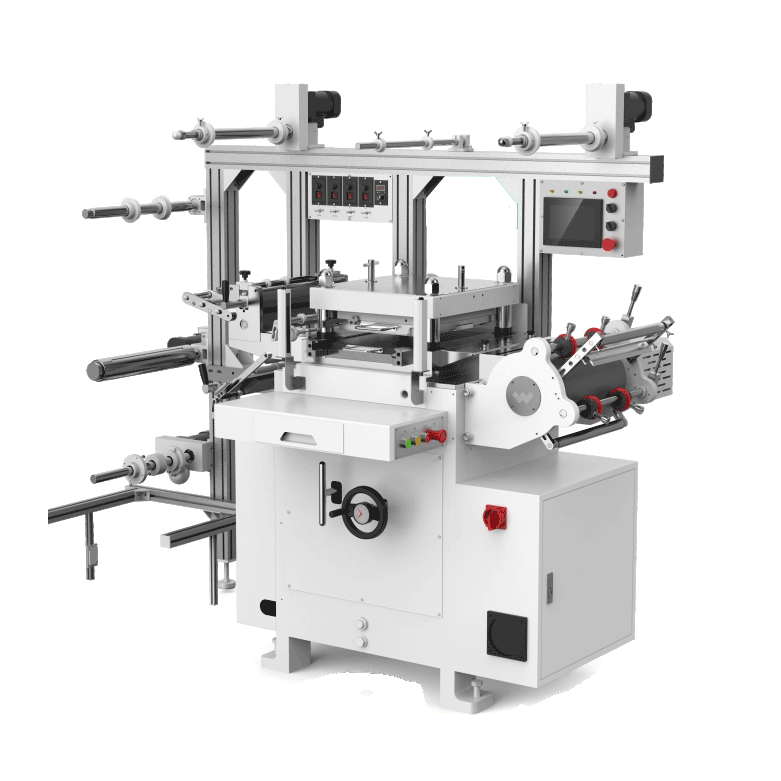

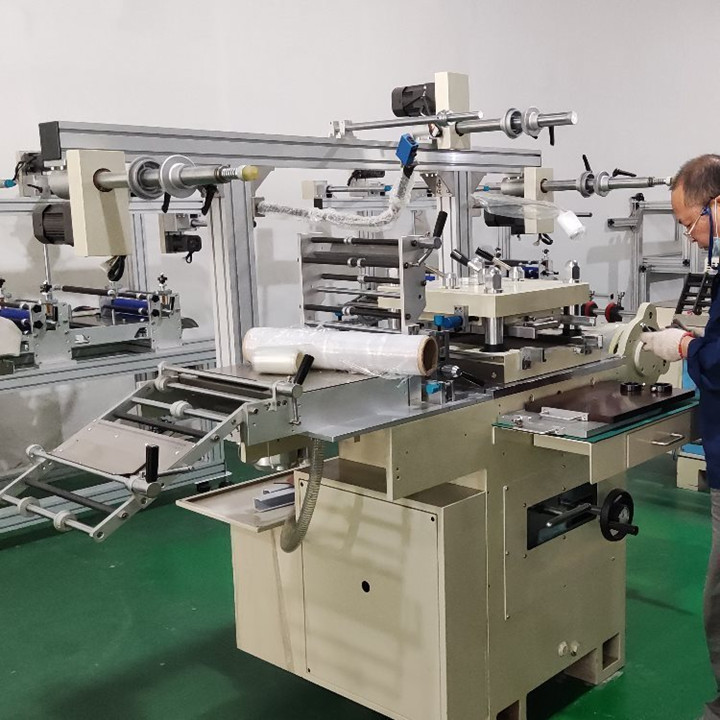

Paper, Film, Adhesive Label Die Cutter Foams Die Cutting Machine
Product introduce
This series of die-cutting machines allows the production of stamped parts and labels from any roll material such as paper, film, Adhesive labels laminates, and foams up to 10 mm in height. Suitable for steel rule dies or wood dies.
This robust machine consisting of a solid cast frame. The speed can be controlled electronically.
After reaching a preset number of labels or running meters, the machine stops automatically.
Specification
480 Die-cutter
Item
Order number
Project name
Unit
The number of content
Machine configuration and parameters
1
Feed width
MM
480
2
Maximum mode cut area
MM
480*450
3
Maximum running speed
PCS/H
18000
4
Rated running speed
PCS/H
1500-12000
5
Module stroke
MM
20
6
Schedule adjustment
MM
4.5
7
Pressure flatness
MM
±0.01
8
Material pulling accuracy
MM
±0.1
9
Outline dimension
MM
2200*1400*1900
10
Machine net weight
Kg
2300
11
Upper template size (thick)
MM
490*460*36.5
12
Upper Template Size (thin)
MM
490*460*20.5
13
Lower template size
MM
490*460*20
14
Aggregate capacity
KW
6.7
17
Module maximum pressure
T
10
15
lubricating system
Automatic cycle oil supply
16
Applicable to knife mode
Wood knife mold, rubber board mold, rot
Erosion die, engraving die, steel die
