High Speed Adhesive Label Die Cutting Machine

Die cutting for paper self-adhesive trademarks, nylon film trademarks, and laser anti-counterfeiting trademarks.

Please send your inquiry to joyhuang@simymachine.com

  • Item No.:

    SIMY-DLIC
  • Lead Time:

    10 days
  • Payment:

    Credit Card, Paypal, T/T , Western Union, LC
  • Warranty Period:

    1 year
  • Customizable:

    Yes
  • Product Detail

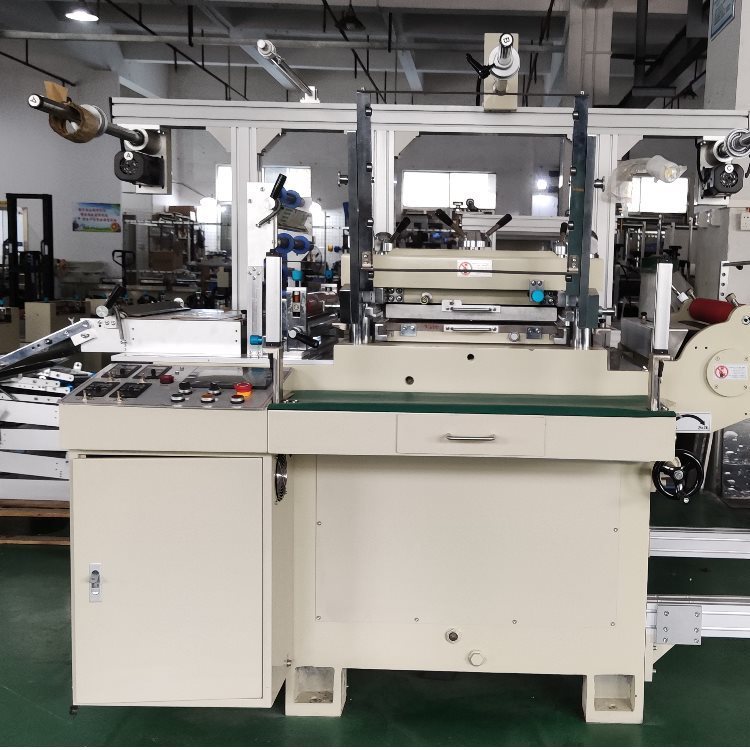

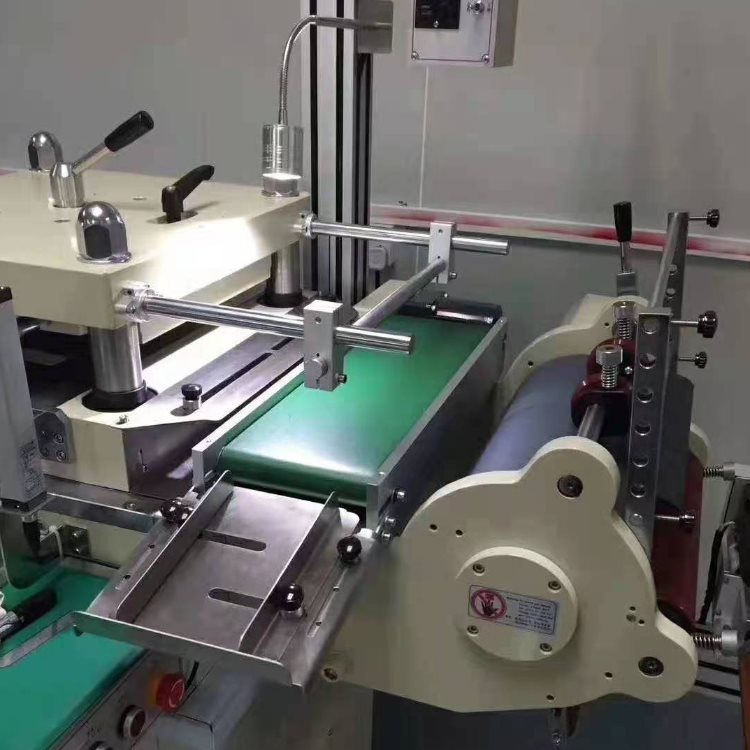

High Speed Adhesive Label Die Cutting Machine


Product introduce

1, Suitable for a variety of roll, sheet material bonding, and stamping.
2, Can be customized according to customer requirements of the secondary positioning die-cutting function.
3, Can carry out two die cutting punches, which in the electronics industry and printing industry has been widely used.
4, The use of a computer servo CNC system to pull, feed, can be made full break, half break punch, waste, high precision, low noise, fast speed, with anti-scratch function.

Applicable scope

Die cutting for paper self-adhesive trademarks, nylon film trademarks, and laser anti-counterfeiting trademarks. This machine is supporting equipment for high-speed drum trademark printing machines, flexographic printing machines, continuous screen printing machines, gravure printing machines, and anti-counterfeiting trademark molding machines. It is also an ideal model for various trademark brush factories, suitable for die-cutting and molding in the electronics industry and adhesive tape product industry.

Specification

350 Dual servo standard die-cutter

Item

Order number

Project name

Unit

The number of content

Machine configuration and parameters

1

Feed width

MM

360

2

Maximum mode cut area

MM

350*300

3

Maximum running speed

PCS/H

24000

4

Rated running speed

PCS/H

1500-24000

5

Module stroke

MM

20

6

Schedule adjustment

MM

7

7

Pressure flatness

MM

±0.01

8

Material pulling accuracy

MM

±0.1

9

Outline dimension

MM

2000*1250*1800

10

Machine net weight

Kg

1850

11

Upper template size (thick)

MM

400*310*33.6

12

Upper Template Size (thin)

MM

400*310*18

13

Lower template size

MM

460.5*300*20

14

Aggregate capacity

KW

5

17

Module maximum pressure

T

8

15

Lubricating system



Automatic cycle oil supply

16

Applicable to knife mode



Wood knife mold, rubber board mold, rot

Erosion die, engraving die, steel die
