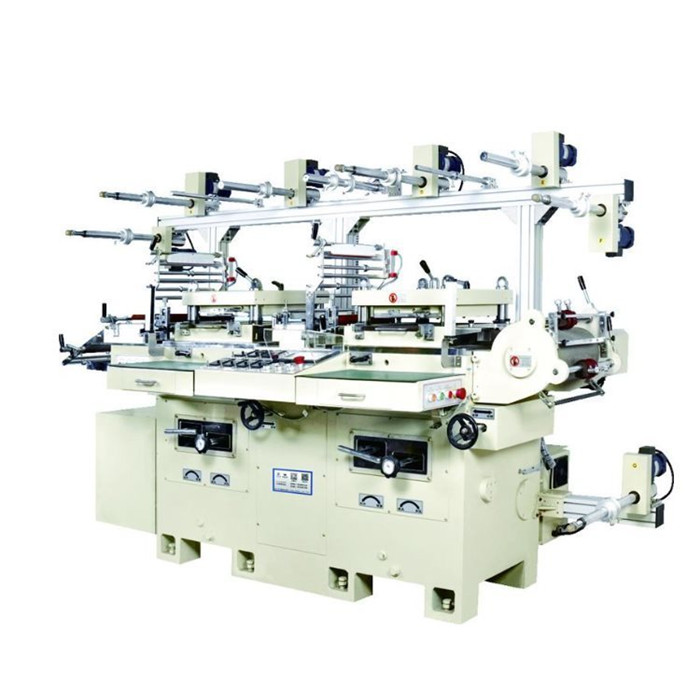

CNC Double Seat Die Cutting Machine
Product introduce
Suitable for laminating and punching various roll and sheet materials. Using a computer servo CNC system for material pulling and feeding, it can be used for full break, half break punching, waste disposal, high accuracy, low noise, fast speed, and has anti scratch function. It can perform secondary die-cutting and stamping, and is widely used in the electronics and printing industries. Customizable secondary positioning die cutting function according to customer needs.
Application
1. For various electronic products such as electrical special adhesive pads, silicone stickers, Velcro, conductive adhesive, strong double-sided adhesive, 3M, Sony special adhesive, backlight screen electronics, IT film switches, and adhesive products used in the automotive manufacturing industry.
2. Dust proof materials: makeup cotton, camera cotton, high-density sponge, filter screen, non-woven fabric.
3. Shockproof products: rebound rubber pad, rubber, transparent foot pad, PORON pad, 3M, vinyl EVA, high foaming.
4. Insulation EMI: Fireproof fast bus paper, aluminum foil, copper foil, PVC, PET, kraft paper, sponge sheath, pearl sheath.
5. Heat resistant and insulation materials: silicone sheet, transparent mica sheet, fiberglass, insulation cotton (cloth).
Specification
Dual servo standard die-cutter
Item
Order number
Project name
Unit
The number of content
Machine configuration and parameters
1
Feed width
MM
310
2
Maximum mode cut area
MM
300*270
3
Maximum running speed
PCS/H
24000
4
Rated running speed
PCS/H
1508 24000
5
Module stroke
MM
20
6
Schedule adjustment
MM
7
7
Pressure flatness
MM
±0.01
8
Material pulling accuracy
MM
±0.1
9
Outline dimension
MM
2000*1200*1900
10
Machine net weight
Kg
1550
11
Upper template size (thick)
MM
350*270*33.6
12
Upper Template Size (thin)
MM
350*270*18
13
Lower template Size
MM
420.5*270*18
14
Aggregate capacity
KW
5
17
Module maximum pressure
T
5
15
lubricating system
Automatic cycle oil supply
16
Applicable to knife mode
Wood knife mold, rubber board mold, rot
Erosion die, engraving die, steel die

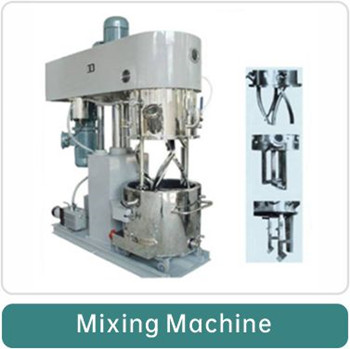

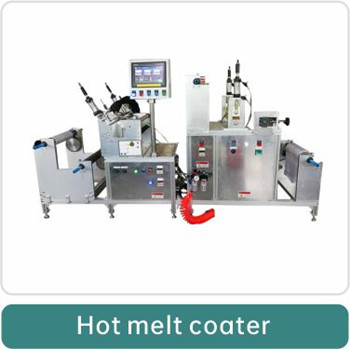

You might also need the following compatible upstream machines.
