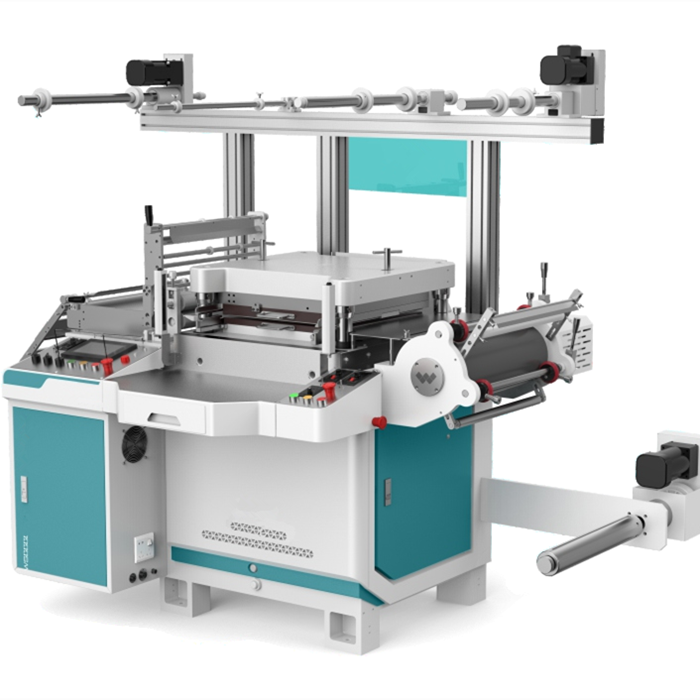

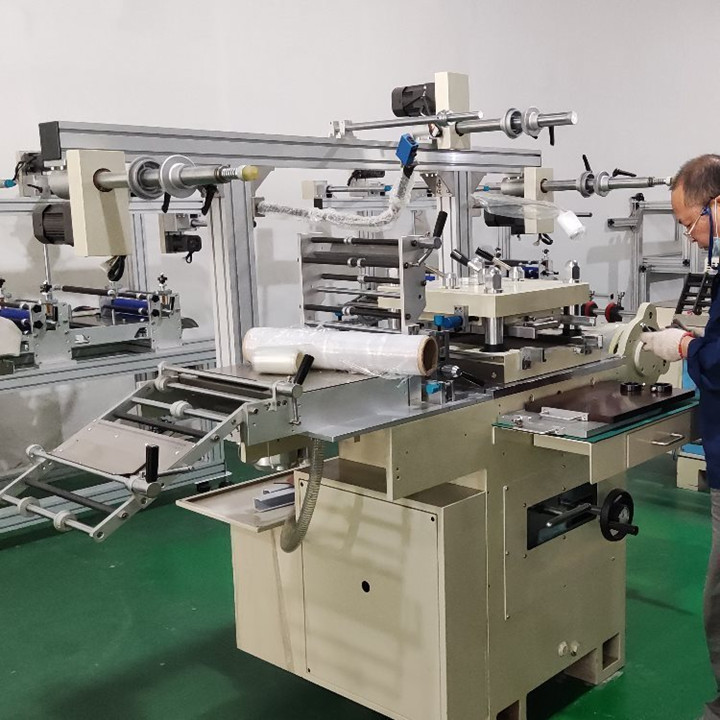

Intelligent High-speed Automatic Pressure Standard (Sleeve Hole) Die Cutter
Product introduce
It is suitable for the machining of backlight, copper aluminum foil, OCA optical glue, optical film, Mera and other materials.
1, Suitable for a variety of roll, sheet material bonding, and stamping.
2, Can be customized according to customer requirements of the secondary positioning die-cutting function.
3, Can carry out two die cutting punches, which in the electronics industry and printing industry has been widely used.
4, The use of a computer servo CNC system to pull, feed, can be made full break, half break punch, waste, high precision, low noise, fast speed, with anti-scratch function.
Specification
480 Die-cutter
Item
Order number
Project name
Unit
The number of content
Machine configuration and parameters
1
Feed width
MM
480
2
Maximum mode cut area
MM
480*450
3
Maximum running speed
PCS/H
18000
4
Rated running speed
PCS/H
1500-12000
5
Module stroke
MM
20
6
Schedule adjustment
MM
4.5
7
Pressure flatness
MM
±0.01
8
Material pulling accuracy
MM
±0.1
9
Outline dimension
MM
2200*1400*1900
10
Machine net weight
Kg
2300
11
Upper template size (thick)
MM
490*460*36.5
12
Upper Template Size (thin)
MM
490*460*20.5
13
Lower template size
MM
490*460*20
14
Aggregate capacity
KW
6.7
17
Module maximum pressure
T
10
15
lubricating system
Automatic cycle oil supply
16
Applicable to knife mode
Wood knife mold, rubber board mold, rot
Erosion die, engraving die, steel die
