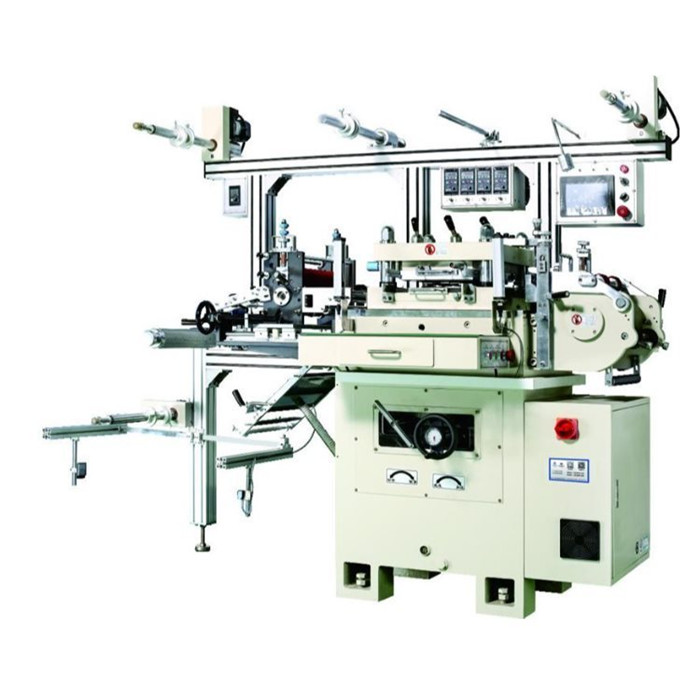

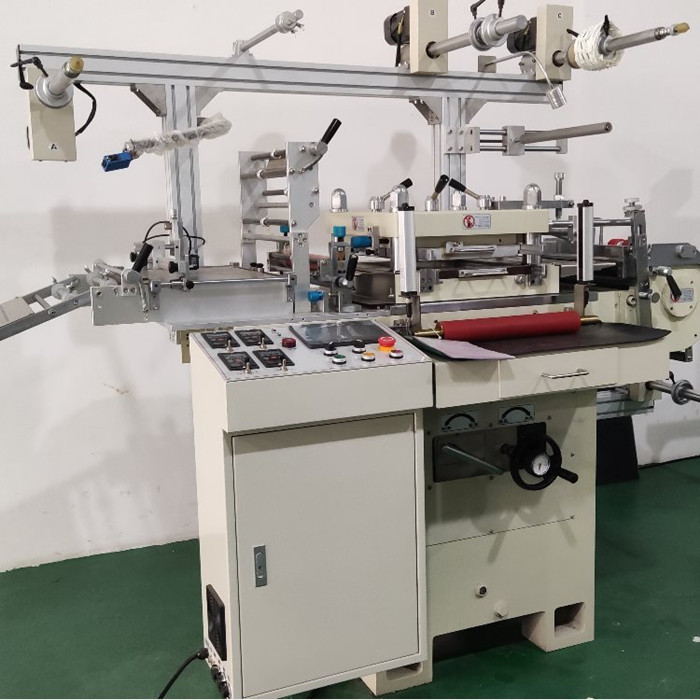

Paper Blank Label Die Cutter
Product introduce
1, Suitable for a variety of roll, sheet material bonding, and stamping.
2, Can be customized according to customer requirements of the secondary positioning die-cutting function.
3, Can carry out two die cutting punches, which in the electronics industry and printing industry has been widely used.
4, The use of a computer servo CNC system to pull, feed, can be made full break, half break punch, waste, high precision, low noise, fast speed, with anti-scratch function.
Specification
350 Dual servo standard die-cutter
Item
Order number
Project name
Unit
The number of content
Machine configuration and parameters
1
Feed width
MM
360
2
Maximum mode cut area
MM
350*300
3
Maximum running speed
PCS/H
24000
4
Rated running speed
PCS/H
1500-24000
5
Module stroke
MM
20
6
Schedule adjustment
MM
7
7
Pressure flatness
MM
±0.01
8
Material pulling accuracy
MM
±0.1
9
Outline dimension
MM
2000*1250*1800
10
Machine net weight
Kg
1850
11
Upper template size (thick)
MM
400*310*33.6
12
Upper Template Size (thin)
MM
400*310*18
13
Lower template size
MM
460.5*300*20
14
Aggregate capacity
KW
5
17
Module maximum pressure
T
8
15
lubricating system
Automatic cycle oil supply
16
Applicable to knife mode
Wood knife mold, rubber board mold, rot
Erosion die, engraving die, steel die
