Rotary Die-cutting System Machine
Product introduce

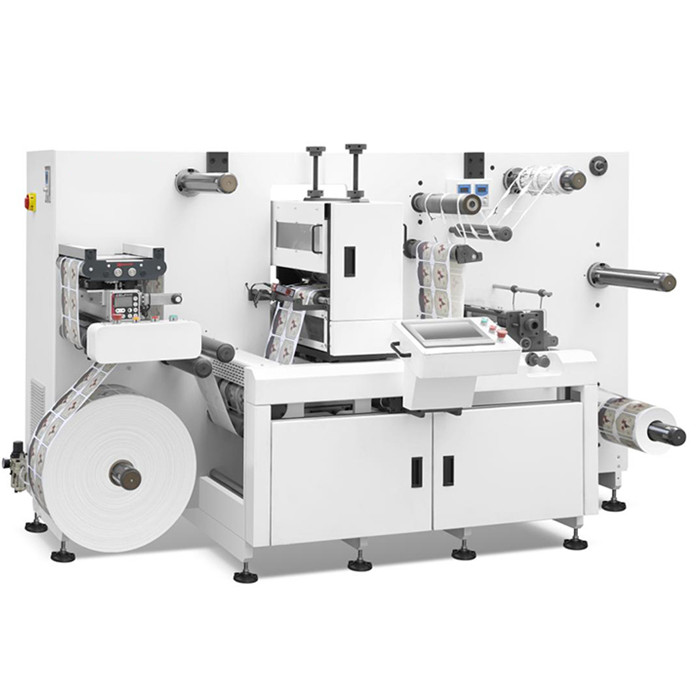

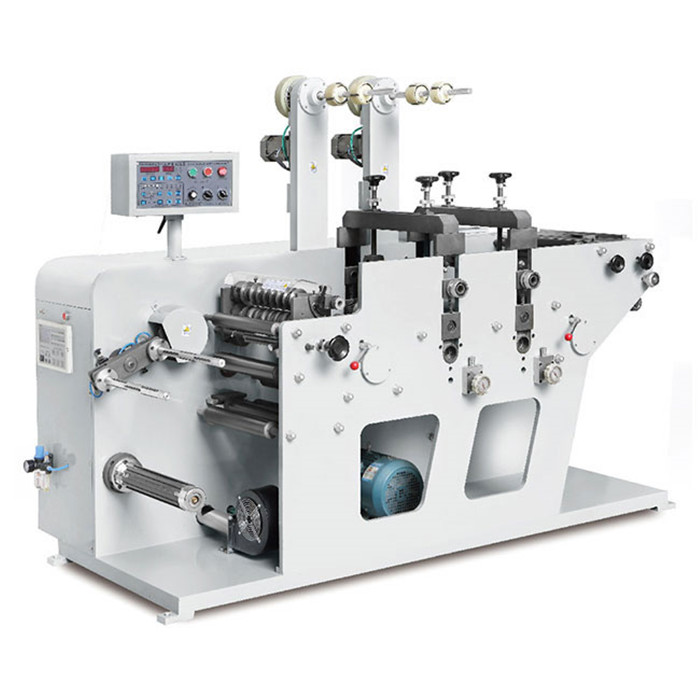

This is a label rotary die cutting machine combining slitting and rewinding functions, enabling the labels to be die-cut, slit and rewind in one machine. This label converting equipment is designed with automatic counting of labels and length, web guiding and more functions, it is typically suitable for die cutting and slitting of plain self-adhesive labels.
This label rotary die cutter can be offered with dual rotary die cutting station to accomplish front or back cutting through one process, significantly enhancing production efficiency and lowering manufacturing cost.
Specification
Model
320B
420B
Slitting speed
120m/min
120m/min
Max.web width
320mm
420mm
Max unwind diameter
550mm
550mm
Max rewind diameter
480mm/220mm(with turret
480mm/220mm (with turret
Slitting accuracy
±0.10mm
±0.10mm
Main motor powe
1.5kw
1.5kw
Dimension
1100*900*1300mm
1100*1000*1300mm
Machine weight
500kg
600kg
