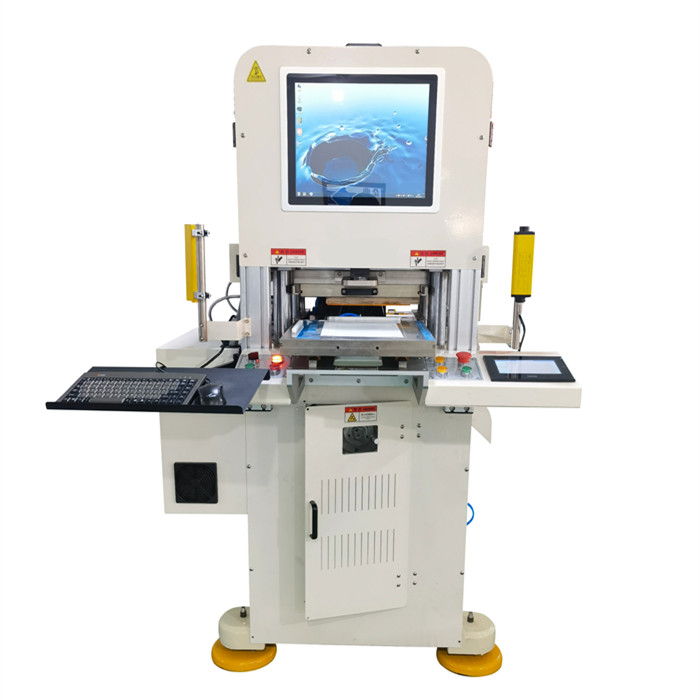

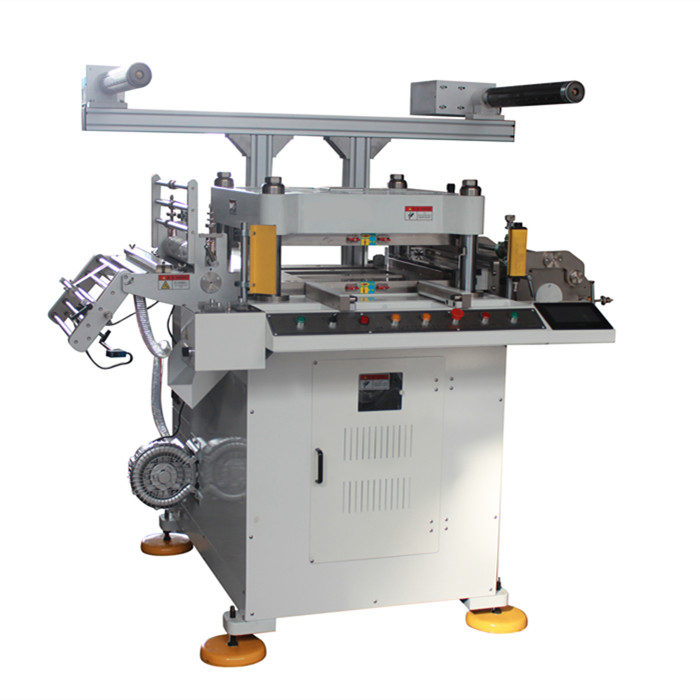

Sheeting or Roll Die-Cutting Machine for Laminating and Punching
Product introduce
Application: Multiple fields including mobile phone protective film, printing and packaging, electronic products, computers, LCDs, household appliances, automobiles, double-sided tape, metal products, etc.
Product Features
Professional die-cutting and processing industry equipment, with high precision, reliable performance, durability, safety, and easy implementation of multiple automatic nesting, achieve a nesting accuracy of 0.03mm and semi-cutting without adjustment.
The punching speed reaches 300spm. The 260spm hardware mold and installation are standardized, and efficient processing of backlight module products such as black and white glue is achieved through fast loading and adjustment. The high-quality professional assembly line has a production capacity of up to 10000 pieces per hour.
Specification
Model
320B
420B
Slitting speed
120m/min
120m/min
Max.web width
320mm
420mm
Max unwind diameter
550mm
550mm
Max rewind diameter
480mm/220mm(with turret
480mm/220mm (with turret
Slitting accuracy
±0.10mm
±0.10mm
Main motor powe
1.5kw
1.5kw
Dimension
1100*900*1300mm
1100*1000*1300mm
Machine weight
500kg
600kg

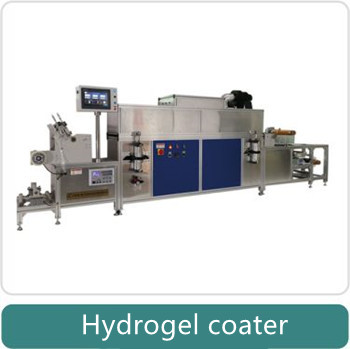

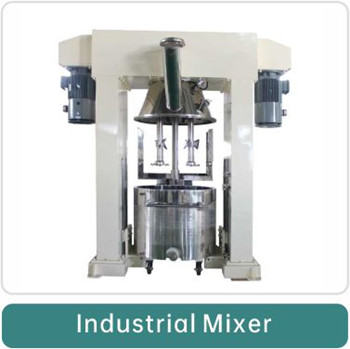

You might also need the following compatible upstream machines.
