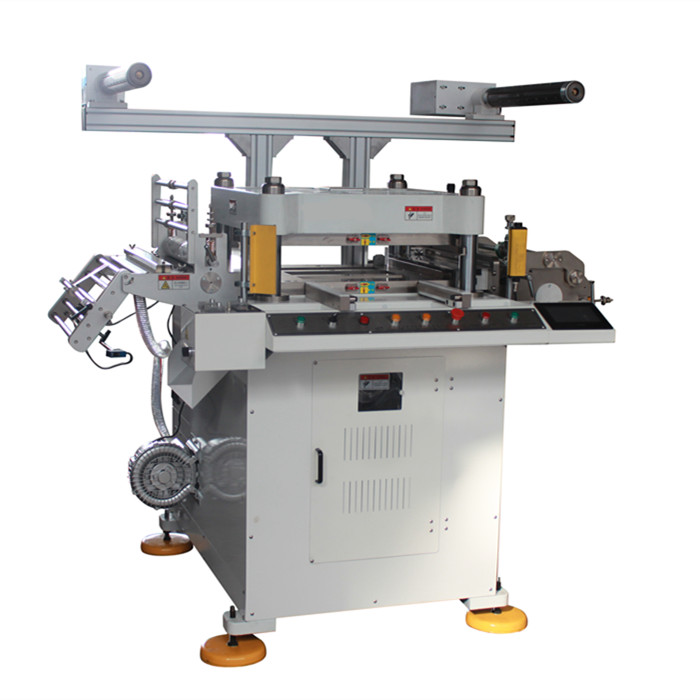

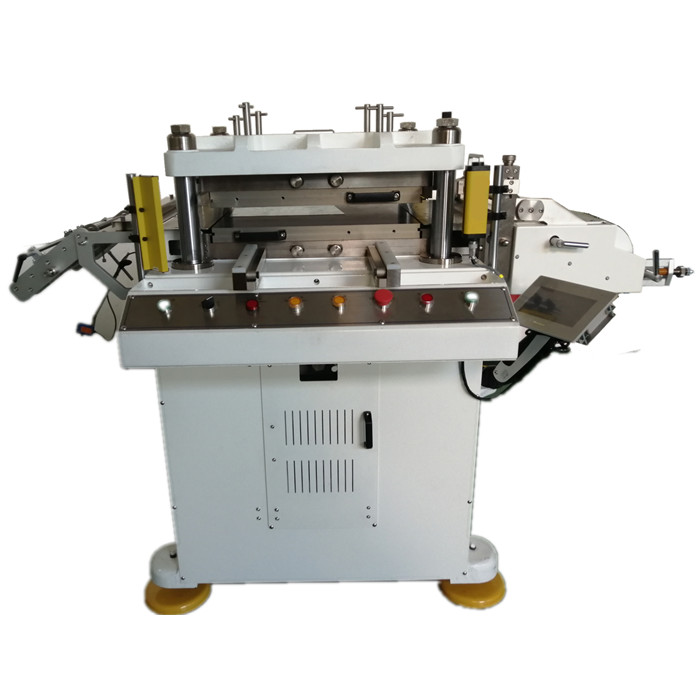

Roll To Roll Self Adhesive Die Cutting Machine of Printing Machinery
Product introduce
This equipment can be used to finish laminating, die cutting, waste discharging, sheeting, winding, and other processes. Most of these working procedures are completed automatically and is thus very convenient. Our product can cut materials with the maximum length of 290mm and width of 300mm. The maximum cutting speed is 170 times per minute. This die cutter is suitable to be used with various web printing and laser molding machines. It is the ideal die cutting and molding equipment for manufacturers in label printing, electronics and adhesive products industries.
Application: Multiple fields including mobile phone protective film, printing and packaging, electronic products, computers, LCDs, household appliances, automobiles, double-sided tape, metal products, etc.
Specification
Cutting Speed
20-170time/min
Max.Diameter of Unwinding
500mm
Max.Web Width
320mm
Max.Width of Die Cutting
300mm
Max.Length of Die Cutting
290mm
Positioning Accuracy
±0.1mm
Total Power
2.7kw
Power Supply
220y±5%
Overall Dimensions
2800x1100x1600mm
Machine Weight
About 1500kg

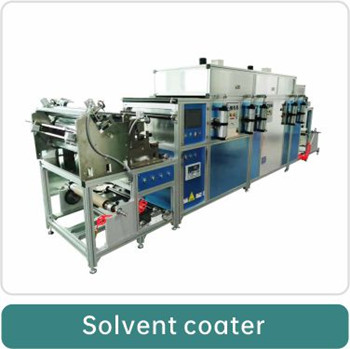

You might also need the following compatible upstream machines.
