Label Flatbed Die Cutter

It is suitable for the machining of backlight, copper aluminum foil, OCA optical glue, optical film, Mera and other materials.


Please send your inquiry to joyhuang@simymachine.com

  • Item No.:

    SIMY-ADIC
  • Lead Time:

    10 days
  • Payment:

    Credit Card, Paypal, T/T , Western Union, LC
  • Warranty Period:

    1 year
  • Customizable:

    Yes
  • Product Detail

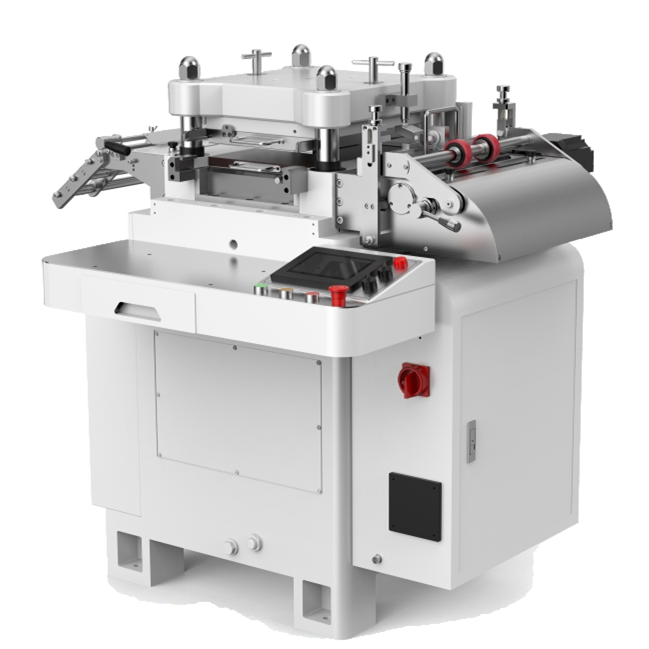

Label Flatbed Die Cutter


Product introduce


It is suitable for the machining of backlight, copper aluminum foil, OCA optical glue, optical film, Mera and other materials.


1, high material pulling precision, high socket accuracy;

2. Die-cutter memory function, parameter setting saving, quick reading;

3, using the full servo transmission system design, the machine noise is small;

4, the operating pressure of the machine is stable, using automatic continuous lubrication;

5, electric voltage regulation, fast mode adjustment, time-saving, simple, efficient.



Specification

350 Dual servo standard die-cutter

Item

Order number

Project name

Unit

The number of content

Machine configuration and parameters

1

Feed width

MM

360

2

Maximum mode cut area

MM

350*300

3

Maximum running speed

PCS/H

24000

4

Rated running speed

PCS/H

1500-24000

5

Module stroke

MM

20

6

Schedule adjustment

MM

7

7

Pressure flatness

MM

±0.01

8

Material pulling accuracy

MM

±0.1

9

Outline dimension

MM

2000*1250*1800

10

Machine net weight

Kg

1850

11

Upper template size (thick)

MM

400*310*33.6

12

Upper Template Size (thin)

MM

400*310*18

13

Lower template size

MM

460.5*300*20

14

Aggregate capacity

KW

5

17

Module maximum pressure

T

8

15

lubricating system



Automatic cycle oil supply

16

Applicable to knife mode



Wood knife mold, rubber board mold, rot

Erosion die, engraving die, steel die
