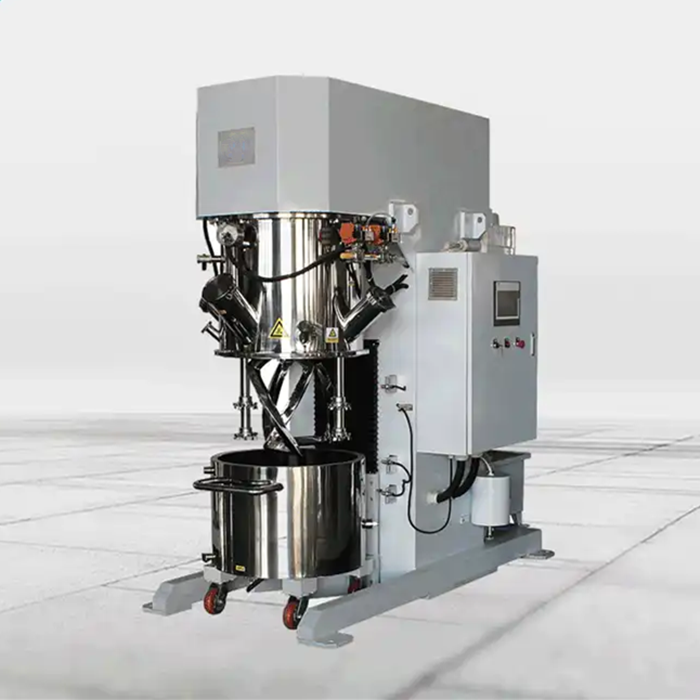

Slurry Battery Mixer/Solder Paste Mixing Planetary Mixer Machine
Product introduce
Combining the advantage of the traditional double planetary mixer and high-speed dispersion mixer, the double planetary dispersing power mixer is an efficient new model and has wide use in the new energy currently.
Based on the original planetary power mixer and the features of lithium batteries and capacitance slurry, we developed the enhanced planetary power mixer with high speed and greater torque. It is applied to the dry power process of the production of lithium-ion cathode slurry, and lithium-ion anode slurry. During the design process, we fully considered the reasonable speed, mixing power, dispersing line speed, and reasonable shape of the twisted stirrer. Our design has reduced the resistance of highly viscous material, the distribution of turbulence intensity in the vessel, and so on. In this way, we get the more efficient and stable double planetary power mixer to process the high-viscosity slurry.
Working principle

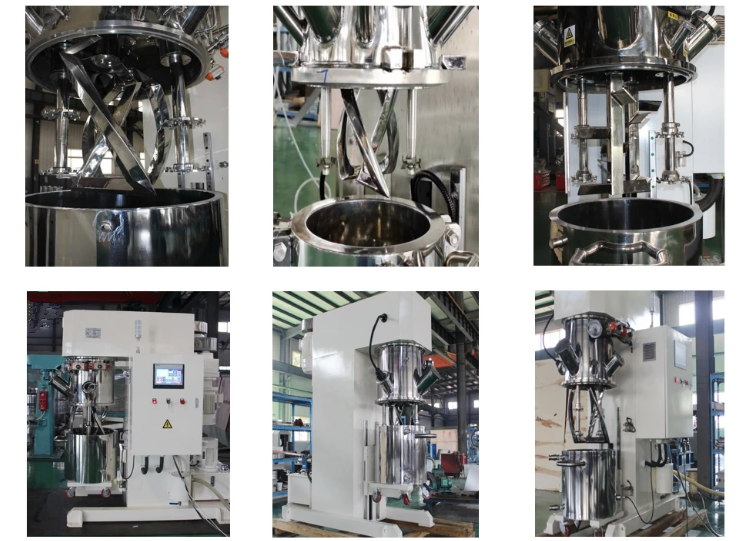

While running a double planetary Vacuum power mixer, Two parallel mixing paddles run in accord with the set fixed rotation ratio, high speed rotating on its axis at the same time of orbital revolution. There is a scraper that runs together with the paddles’ orbital revolution in the mixing tank, which moves the material to the paddles from the tank wall, To archive the different shearing, The direction of both orbital revolution and rotating on its axis can be fore ward and reversal; Another two high speed dispersing discs with separate driving device run in the mixing tank together with the orbital revolution, high-speed dispersing, emulsification, The speed of high speed dispersing disc is adjusted by frequency inverter, The speed can be set in accord with demand;
The material can be completely well-distributed emulsifying under this mixing mode, suitable for the dispersing and mixing solid-solid, solid-liquid, and liquid-liquid materials.
Configuration Choice
Power: 380V, 50HZ, or according to customer requirements
Contact material: SS304 stainless steel, SS316 stainless steel
Closed form: mechanical seal, packing seal, skeleton oil seal
Speed control mode: frequency control
Closed type: vacuuming
Viscosity range: 1000-3000000 cps
Mixer: door frame, twisted, multi-layer paddle, claw
Diffuser: matching according to customer needs
Environmental requirements: explosion-proof
Extruder: Match according to customer needs
Heating method: electric heating steam heating hot water circulation heating hot oil circulation heating
Specification
Items↓ Model→ | 30L | 60L | 100L | 200L |
Tank working Capacity/L | 30L | 60L | 100L | 200L |
Tank Design Size/L | 44L | 88L | 149L | 287L |
Tank Size/mm | 400*350 | 500*450 | 650*450 | 750*650 |
Revolution Motor/Kw | 3 | 7.5 | 11 | 22 |
Revolution Speed/rpm | 0-43 | 0-36 | 0-30 | 0-28 |
Mix Speed/rpm | 0-84 | 0-53 | 0-46 | 0-39 |
Disperse Motom/Kw | 5.5 | 11 | 15 | 30 |
Disperse Speed/rpm | 0-5500 | 0-4500 | 0-3700 | 0-2800 |
Disperse plate linear Velocity(m/s) | 0-23 | |||
Suttle/Kg | 980 | 1700 | 2700 | 4200 |
Measurement/mm (L*W*H) | 1700*950*1900 | 1950*1200*2150 | 2300*1300*2400 | 2500*1400*3000 |
