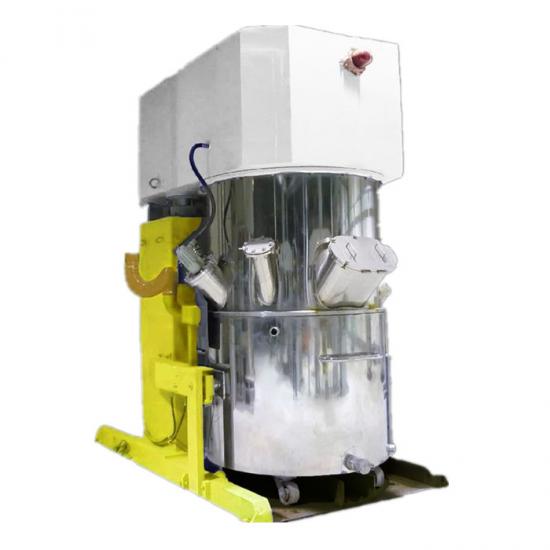

Full Ex-proof Vertical Planetary Kneader Mixer For Rocket Propeller Material Kneading Machine
Product introduce
Kneaders are used to work elasto-viscous products with a high solid content. Kneaders are designed in both vertical and horizontal configurations and can work in a batch or continuous mode. Considerations for choosing a suitable kneader include the solid content and viscosity of the product to be processed, desired production capacity, and ease of cleaning. Kneaders are used in the food industry to process high-viscosity materials such as chewing gum, dough, and toffee, and in the chemical industry for the processing of rubber, silicone, adhesives, and resins. Talk to us; our experts will help you to choose the best kneader for your application.
Working principle
During the running of a double planetary Vacuum power mixer, Two parallel mixing paddles run in accord with the set fixed rotation ratio, high speed rotating on its axis at the same time of orbital revolution. There is a scraper that runs together with the paddles’ orbital revolution in the mixing tank, which moves the material to the paddles from the tank wall, To archive the different shearing, The direction of both orbital revolution and rotating on its axis can be forward and reversal; Another two high speed dispersing discs with separate driving device run in the mixing tank together with the orbital revolution, high-speed dispersing, emulsification, The speed of high speed dispersing disc is adjusted by frequency inverter, The speed can be set in accord with demand;
The material can be completely well-distributed emulsifying under this mixing mode, suitable for the dispersing and mixing of solid-solid, solid-liquid, and liquid-liquid materials.
Specification
Items↓ Model→ | 30L | 60L | 100L | 200L |
Tank working Capacity/L | 30L | 60L | 100L | 200L |
Tank Design Size/L | 44L | 88L | 149L | 287L |
Tank Size/mm | 400*350 | 500*450 | 650*450 | 750*650 |
Revolution Motor/Kw | 3 | 7.5 | 11 | 22 |
Revolution Speed/rpm | 0-43 | 0-36 | 0-30 | 0-28 |
Mix Speed/rpm | 0-84 | 0-53 | 0-46 | 0-39 |
Disperse Motom/Kw | 5.5 | 11 | 15 | 30 |
Disperse Speed/rpm | 0-5500 | 0-4500 | 0-3700 | 0-2800 |
Disperse plate linear Velocity(m/s) | 0-23 | |||
Suttle/Kg | 980 | 1700 | 2700 | 4200 |
Measurement/mm (L*W*H) | 1700*950*1900 | 1950*1200*2150 | 2300*1300*2400 | 2500*1400*3000 |
