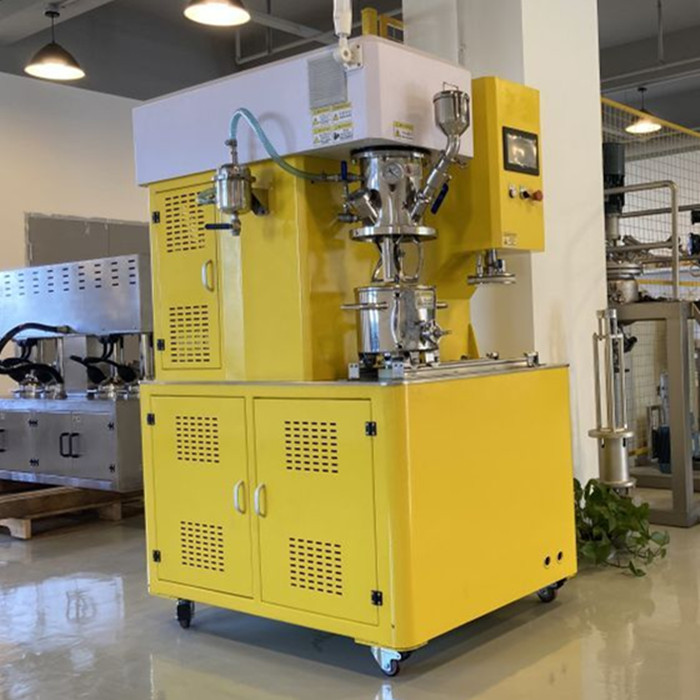

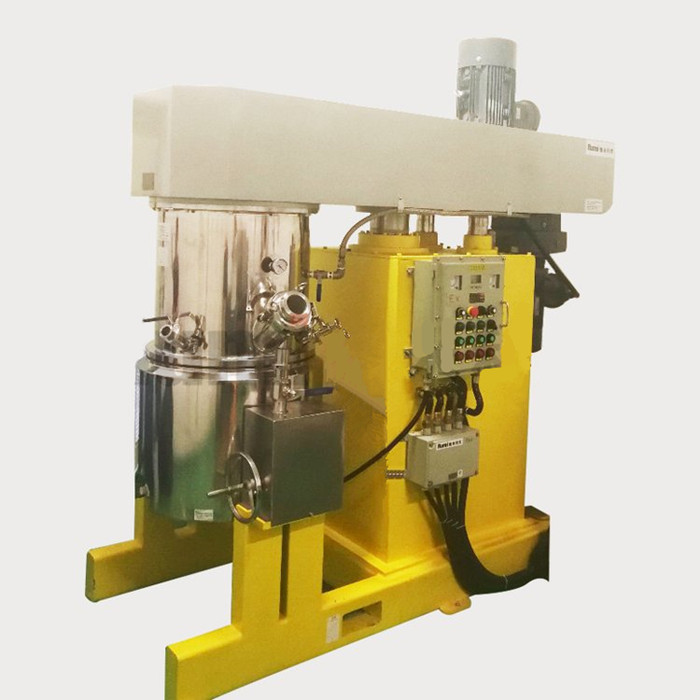

High-capacity 2000 L Glue Stainless Steel Planetary Mixer
Product introduce
The planetary mixer is suitable for the homogeneous mixing, polymerization reaction, sulfurization, sulfonation, dispersion, dissolution, and tempering of multi-component solid-liquid and liquid-liquid materials, especially for the production of 10000CP~3000000CP paste materials. The SIMYJ series planetary mixer is mainly used for producing silicone sealant, silicone structural adhesive, neutral glass adhesive, neutral mold resistant adhesive, neutral weather resistant adhesive, vulcanized silicone rubber, liquid silicone, battery paste, etc.
1. Energy: Various battery pastes and pastes (lithium batteries, nickel chromium batteries, nickel hydrogen batteries, fuel cells, power batteries, etc.);
2. Electronic and electrical appliances: solder paste, ceramic paste, magnetic materials, silicone ink, electronic adhesive, PVC plastic, electronic and electrical component sealing adhesive, hot melt adhesive, various precious metal powders and pastes;
3. Chemicals: various sealants, adhesives (silicone sealant, polysulfide sealant, polyurethane sealant, hollow glass sealant, waterproof sealant, structural sealant, anaerobic adhesive, stone adhesive, mold adhesive, etc.), synthetic resin rubber, ink, putty, grinding agent (paste), wax products, synthetic rubber, synthetic resin, various powder materials, ceramic pigments;
4. Pharmaceuticals: various soft ointments, high polymer gel (medical patches, children's antipyretic patches, cold quick patches, ice patches, eye patches), dental products;
5. Cosmetics and daily chemicals: skin cream, lipstick, lipstick, lotion, gel, facial mask, eye black, foundation make-up, nail polish, toothpaste, soap;
6. Food: Various mixtures of paste and paste, seasonings, jam, chocolate syrup.
Product features
1. The planetary mixer is an efficient, multifunctional, and mandatory mixer that typically uses a frame, cylinder head, and mixing blades to lift and lower, while the material cylinder moves.
2. Vacuum resistance: enables the material to operate under vacuum;
3. The kettle body can be heated by electric, steam, water, and oil circulation. The temperature detection device on the transmission shaft ensures that the temperature error of the material is less than ± 1 ℃, and the jacket, bottom jacket, and the coil and guide plate inside the jacket can achieve cooling;
4. The inner wall of the kettle is finely processed by a large vertical lathe, and then automatically polished by a large polishing machine to ensure that the movable scraper (suitable for sealant) on the planetary frame completely scrapes off the materials on the inner wall of the kettle when rotating;
5. In the kettle, the Fried Dough Twists frame type (the distance between the paddle and the paddle, and between the paddle and the barrel wall is 3-4mm) agitator paddle (multi paddle) rotates itself at the same time of revolution to make the materials flow up, down and around, so that the mixing (mixing) effect can be achieved in a very short time;
6. The revolution and rotation of the stirring slurry inside the kettle are all controlled by variable frequency speed regulation (variable frequency motor), and different speeds can be selected according to different processes and viscosities. The speed measurement system directly provides the speed of different stirring paddles at that time.
7. Planetary mixers are usually equipped with YLJ series hydraulic extruders to achieve the extrusion of paste like materials.
3D simulation diagram
Specification
Model |
Feeding volume
(L)
|
Planetary motor
(KW)
|
Revolution speed
(rpm)
|
Stirring rotation speed
(rpm)
|
Vacuum degree |
SIMY-2L |
1.2 |
0.75 |
0~28 |
0~100 |
-0.096 |
SIMY-5L |
3 |
1.5 |
0~28 |
0~100 |
-0.096 |
SIMY-20L |
12 |
4 |
0~28 |
0~100 |
-0.096 |
SIMY-50L |
30 |
5.5 |
0~28 |
0~100 |
-0.096 |
SIMY-100L |
60 |
11 |
0~28 |
0~100 |
-0.096 |
SIMY-200L |
120 |
15 |
0~22 |
0~80 |
-0.096 |
SIMY-300L |
180 |
18.5 |
0~22 |
0~80 |
-0.096 |
SIMY-500L |
300 |
30 |
0~22 |
0~80 |
-0.096 |
SIMY-1000L |
600 |
45 |
0~22 |
0~80 |
-0.096 |
SIMY-1500L |
900 |
55 |
0~22 |
0~80 |
-0.096 |
SIMY-2000L |
1200 |
75 |
0~22 |
0~80 |
-0.096 |
