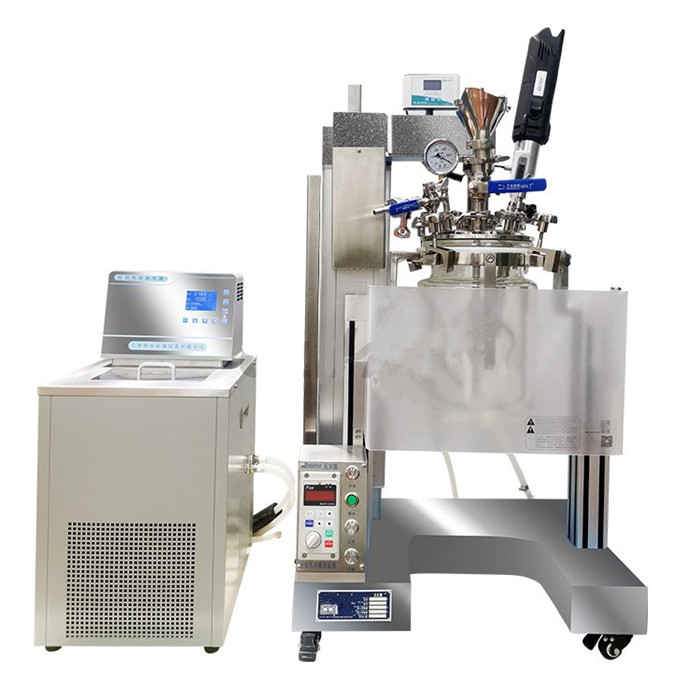

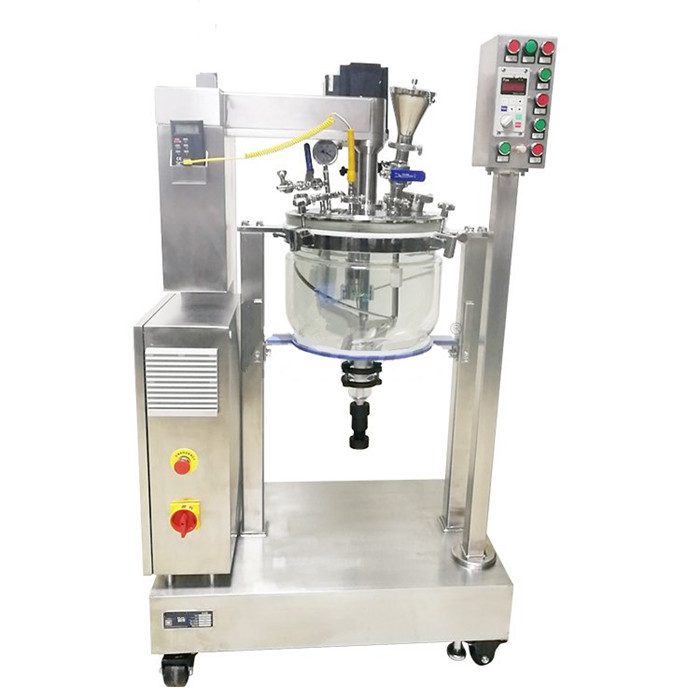

Laboratory Vacuum Dispersion Mixer for Mixing Lithium Battery Slurry
Product introduce
This machine can achieve the dispersion, emulsification, homogenization, and mixing of materials in a vacuum or pressure environment. It can be equipped with various mixers (optional), high shear homogenizing emulsifying machines (optional), as well as reliable vacuum sealing systems and temperature control systems. Multiple sensing and detection systems can simulate industrial production in laboratory environments. It is a good choice for conventional complete laboratory equipment and meets the simulation conditions of the complete equipment.
Specification
|
Model: |
SIMY-1S |
SIMY-2S |
SIMY-5S |
SIMY-10S |
|
Source: |
220V/50/60Hz |
|||
|
Small mixing volume: |
300ml |
500ml |
1000ml |
3000ml |
|
Small milk |
500ml |
1000m |
2000m |
5000ml |
|
Large processing volume |
1000ml |
2000m |
5000ml |
100000ml |
|
Working temperature: |
120° (optional high temperature) |
|||
|
Heating method: |
Water bath, oil bath cycle |
|||
|
Vacuum: |
0.096 Mpa (positive pressure optional) |
|||
|
Treatment viscosity: |
70000CP (130000CP is optional) |
|||
|
Power of mixer: |
120W |
120W |
180W |
180W |
|
Mixer speed |
0~200rpm (super high speed optional) |
|||
|
Oar leaf configuration: |
Anchor type scraping wall mixing paddle (screw type optional |
|||
|
Scratch material: |
Silicone rubber (PTFE hard wall optional) |
|||
|
Power of emulsisification homogenizer: |
500W |
500W |
1050W |
1050W |
|
Speed of the emulsion homogenizer: |
10000~28000rpm |
5000~25000rpm |
||
|
RPM display: |
LCD display (digital display timing) |
LCD display (digital display timing) |
||
|
Emulsification head Model: |
20BCS |
20BCS |
25BCS |
30BCS |
|
Reactor cap opening: |
Homogeneous machine port + feeding port + temperature measuring port + vacuum port + 3 standby ports |
|||
|
Support lifting mode: |
Electric lift |
|||
|
Support lift formation: |
230mm |
230mm |
280mm |
280mm |
|
Contact material material: |
SUS316L Stainless steel + PTEF + boron-silicon glass sandwich container |
|||
|
Material of the reactor body: |
Silicon and boron glass sandwich container (SUS316L stainless steel container optional) |
|||
|
Vacuum outlet diameter |
10mm |
|||
|
Seam inlet and outlet: |
12mm |
|||
