Battery Paste, Electronic Paste, Lithium Battery Paste Planetary Mixer

This mixer is widely used in battery paste, electronic slurry, lithium battery slurry.

Please send your inquiry to joyhuang@simymachine.com

  • Item No.:

    SIMY-BPE
  • Lead Time:

    10 days
  • Payment:

    Credit Card, Paypal, T/T , Western Union, LC
  • Warranty Period:

    1 year
  • Customizable:

    Yes
  • Product Detail

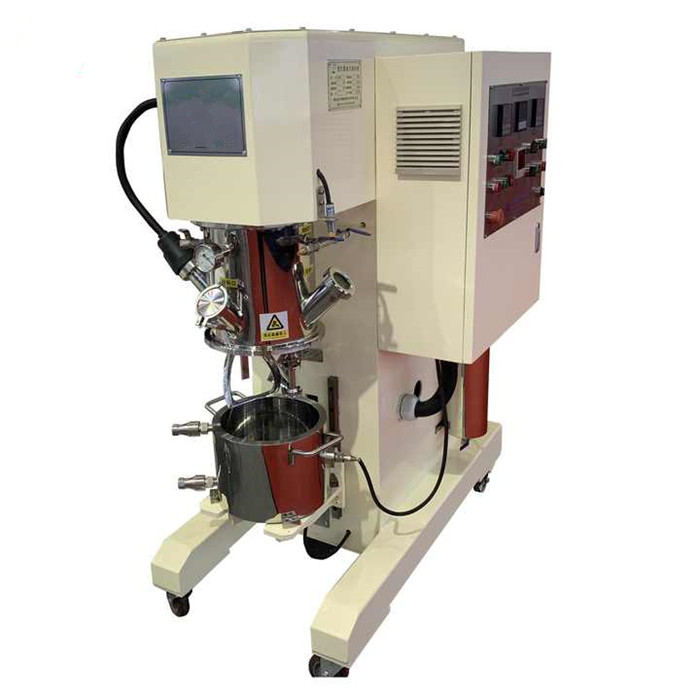

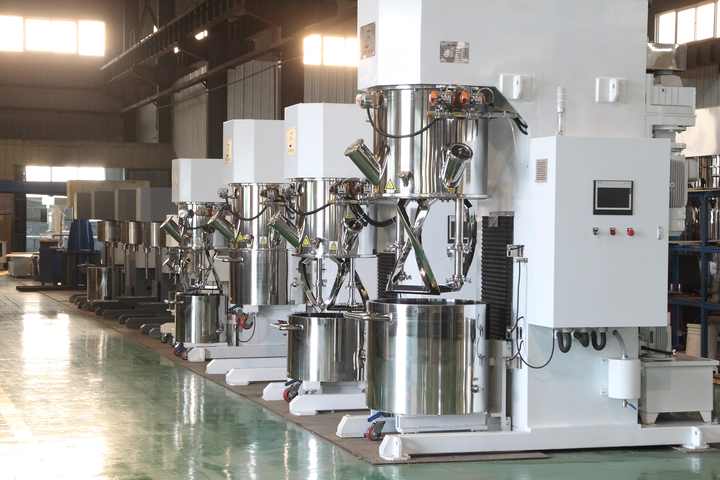

Battery Paste, Electronic Paste, Lithium Battery Paste Planetary Mixer


Product introduce

Combining the advantage of the traditional double planetary mixer and high-speed dispersion mixer, the double planetary dispersing power mixer is an efficient new model and has wide use in the new energy currently.

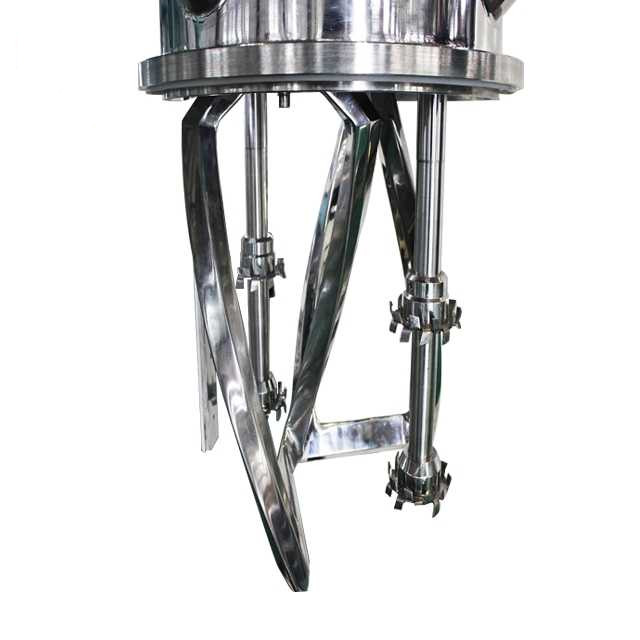

Based on the original planetary power mixer and the features of lithium batteries and capacitance slurry, we developed the enhanced planetary power mixer with high speed and greater torque. It is applied to the dry power process of the production of lithium-ion cathode slurry, and lithium-ion anode slurry. During the design process, we fully considered the reasonable speed,  mixing power, dispersing line speed, and reasonable shape of the twisted stirrer. Our design has reduced the resistance of highly viscous material, the distribution of turbulence intensity in the vessel, and so on. In this way, we get the more efficient and stable double planetary power mixer to process the high-viscosity slurry.


Application

The double planetary mixer adopted advanced technology, which is widely used in dispersing mixing middle or high viscosity liquid-liquid/solid-solid/liquid-solid material, such as adhesives, sealant, silicone rubber, glass glue, solder paste, battery paste, electronic slurry, lithium battery slurry, polyurethane, coating, pigment, dyestuff, synthetic resin rubber, ointment, etc for electronics, chemical, pharmaceutical, construction and agricultural industries, which the viscosity is appr. from 5000cp to 1000000cp.


Specification

Items↓                               Model→ 30L 60L 100L 200L
Tank working Capacity/L 30L 60L 100L 200L
Tank Design Size/L 44L 88L 149L 287L
Tank Size/mm 400*350 500*450 650*450 750*650
Revolution Motor/Kw 3 7.5 11 22
Revolution Speed/rpm 0-43 0-36 0-30 0-28
Mix Speed/rpm 0-84 0-53 0-46 0-39
Disperse Motom/Kw 5.5 11 15 30
Disperse Speed/rpm 0-5500 0-4500 0-3700 0-2800
Disperse plate linear Velocity(m/s) 0-23
Suttle/Kg 980 1700 2700 4200
Measurement/mm (L*W*H) 1700*950*1900 1950*1200*2150 2300*1300*2400 2500*1400*3000
