Lab Doctor Blade Bar Coating Machine

This is an automatic coating machine with integrated functions such as bar coating, doctor blade and heating.

Please send your inquiry to joyhuang@simymachine.com

  • Item No.:

    SIMY-LDB
  • Lead Time:

    10 days
  • Payment:

    Credit Card, Paypal, T/T , Western Union, LC
  • Warranty Period:

    1 year
  • Customizable:

    Yes
  • Product Detail

Lab Doctor Blade Bar Coating Machine


Product description

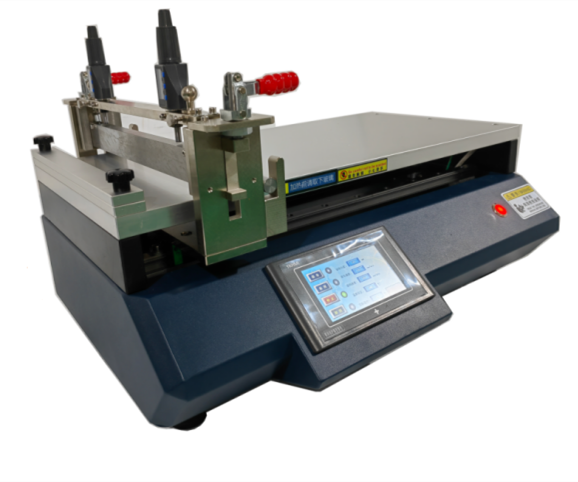

ZN320B is an automatic coating machine with integrated functions such as bar coating, doctor blade and heating. It is an ideal equipment for coating electrodes, glues and other high viscosity samples in the laboratory.


The biggest advantage of laboratory coater:

1. Wide range of application: can be in paper, plastic, metal, PVC, PET, cloth, aluminum alloy plate and other flat materials, uniform coating experiment. Repeated, continuous coating to produce a smooth, smooth and flawless test sample.
2. Good performance: it is convenient for the experimentalists to accurately coat on different substrates, reducing and eliminating the error caused by human factors such as coating speed and pressure.

3. Repeatable: can be freely repeated coating operation, does not affect the coating quality; Repeated, continuous coating to produce a smooth, smooth and flawless test sample.

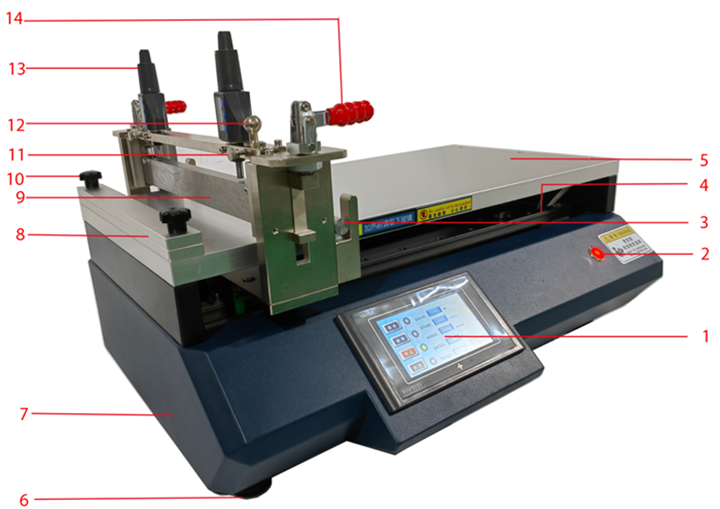

1. Control the touch screen,

2. Power indicator light,

3. Flatten the rod groove,

4. Guide rail,

5. Coating table,

6. Machine foot,

7. Fuselage,

8. Material pressing plate,

9. Scraper,

10. Press plate locking screw,

11. Set screws,

12. Pull buckle,

13. Dial indicator,

14. Scraper lifting hand.


Specification

Control system

 5 inch PLC touch screen

Coating method

 Doctor blade & bar can be used alternately

Heating

 Normal temperature ~ 160 degrees (constant temperature setting)

Effective coating range

 300*450mm

Coating thickness

 0.005-3MM

Automatic control

 Travel setting/speed setting/temperature setting

Vacuum function

 Optional

Suitable for

 Lithium battery, PET, aluminum foil, paper and other flat materials

Bar thickness (Optional)

 510152025303540455055606570758090100110120130140150200um
