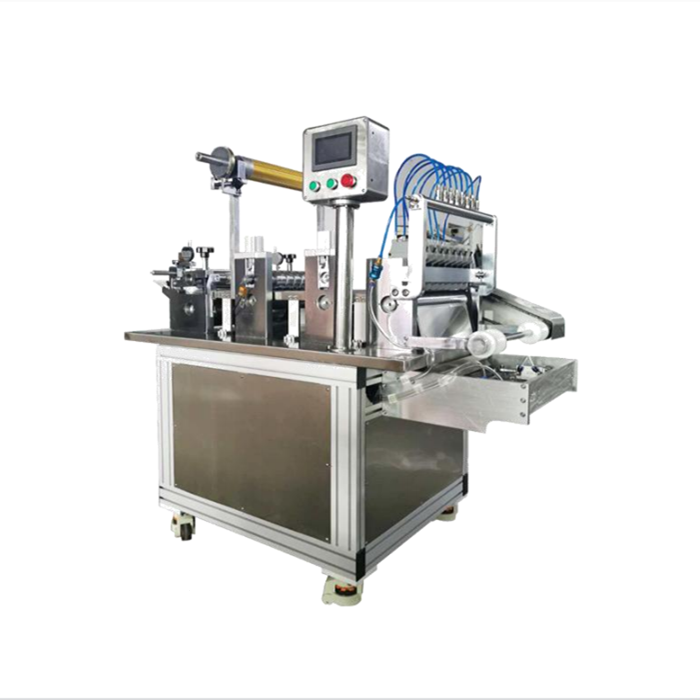

Laboratory Roll To Roll Coater
Product introduce

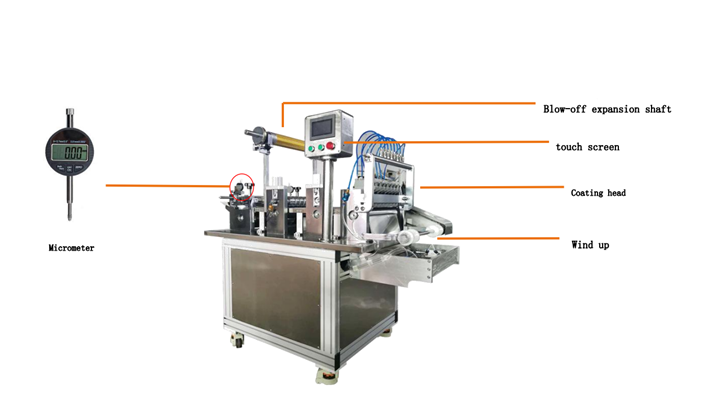

Lab coater with automatic rewinding, automatic tension control, automatic deviation correction, PID temperature control system, high integration of mechanical structure and high integration of closed-loop control system, has high precision, high efficiency, easy to operate and simply maintain
Can customize the coating head with scraper continuous or intermittence coating, Main used for pilot production.
Specification
|
Coating accuracy |
Thickness accuracy +5um/ customizable |
|
Temperature sensing accuracy of hopper |
No heating/heating 0-300℃ accuracy 0.3%FS/ sh 1℃ |
|
Cover film configuration |
Pressure (customizable) No pressure |
|
Curing temperature range |
Can be customized 0-300℃ |
|
Receiving configuration |
The outside diameter of the balloon shaft can be customized q75 |
|
Rectify deviation |
Customizable 300 or 500mm |
|
Tension |
Independent electronic tension controller |
|
Speed |
0-30m/min According to the glue curing time adjustment precision servo control ≤0.2% |
|
Roll-in and roll-out configuration |
Bearing 100kg roll diameter ≤500mm; Wide width: can be customized 300 or 500mm |
|
Mode of operation |
Manual/automatic/cut-off alarm |
|
Power supply |
Basic voltage: single-phase 220V 4.5KW(Change voltage according to demand) |
|
Corona machine |
0-300Woptional |

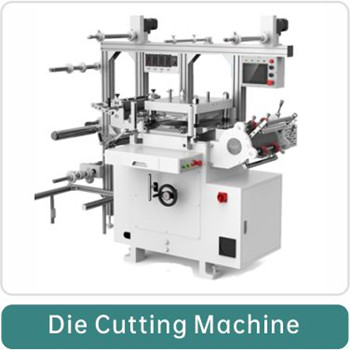

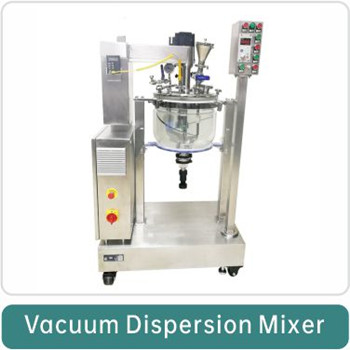

You might also need the following compatible upstream and downstream machines.
