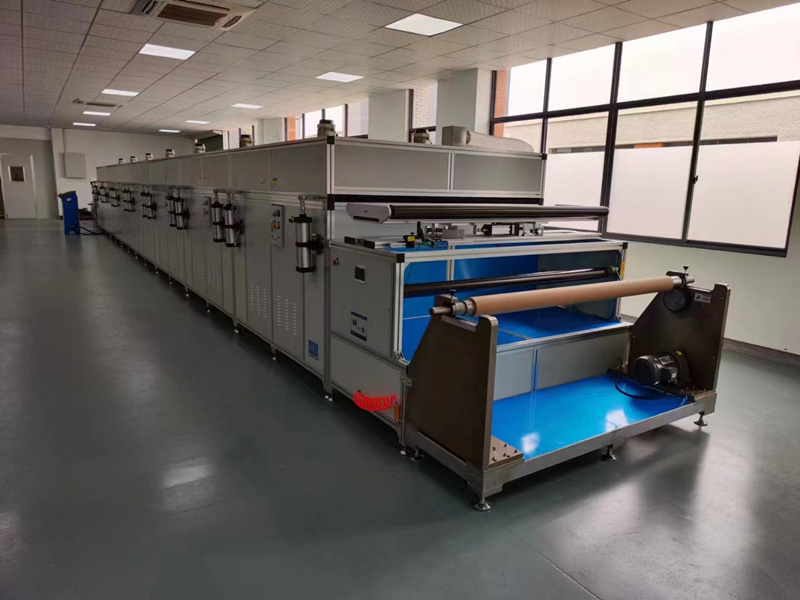

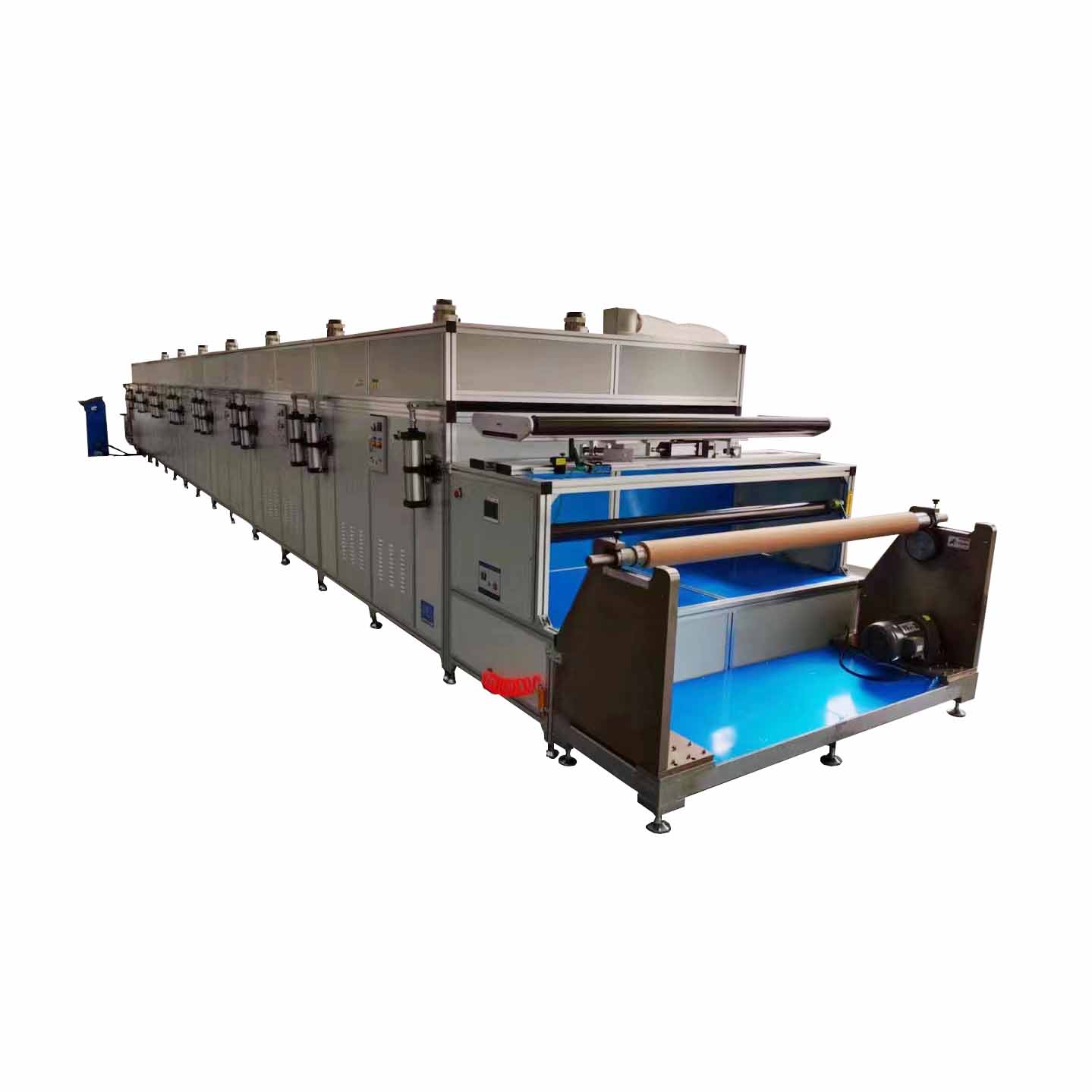

Non-woven Fabrics Double Rolls Extrusion Impregnation Double-sided Coating Machine
The coating machine is used for double-sided efficient coating of glass fiber cloth non-woven fabrics.
Parameters can be customized.
Adopting double roller extrusion impregnation double-sided coating, the coating effect is perfect and the efficiency is high.
Specification
|

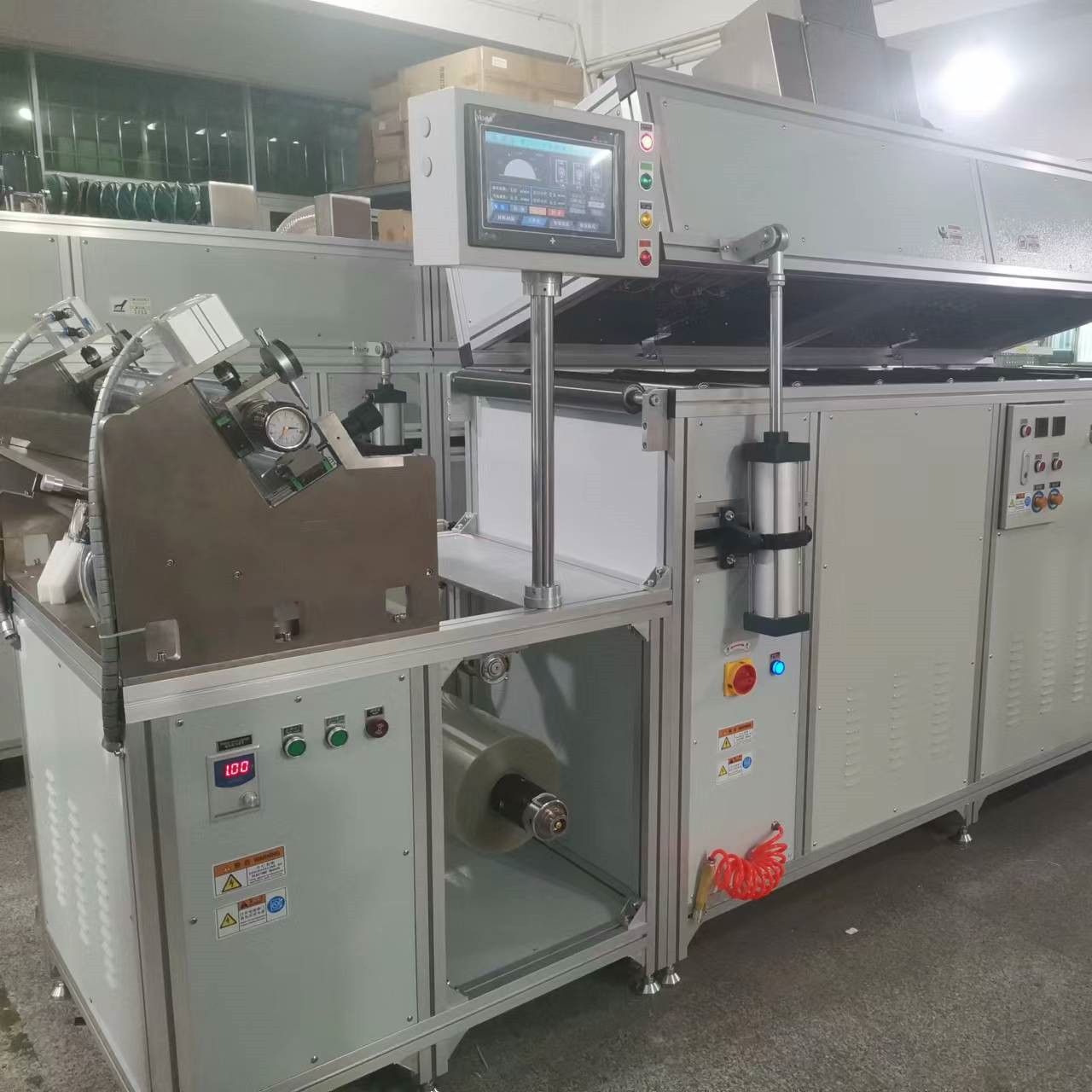

Control system |
independently developed |
|
Coating width |
200mm-1500mm |
|
Coating method |
Double roller extrusion impregnation double-sided coating |
|
Coating thickness |
0.005-5MM (uniformity ± 3%) |
|
Thickness adjustment |
digital micrometer |
|
Heating channel |
drying channel 2-20 meters (1 meter per section) (customizable) |
|
Heating control |
thermocouple sensor |
|

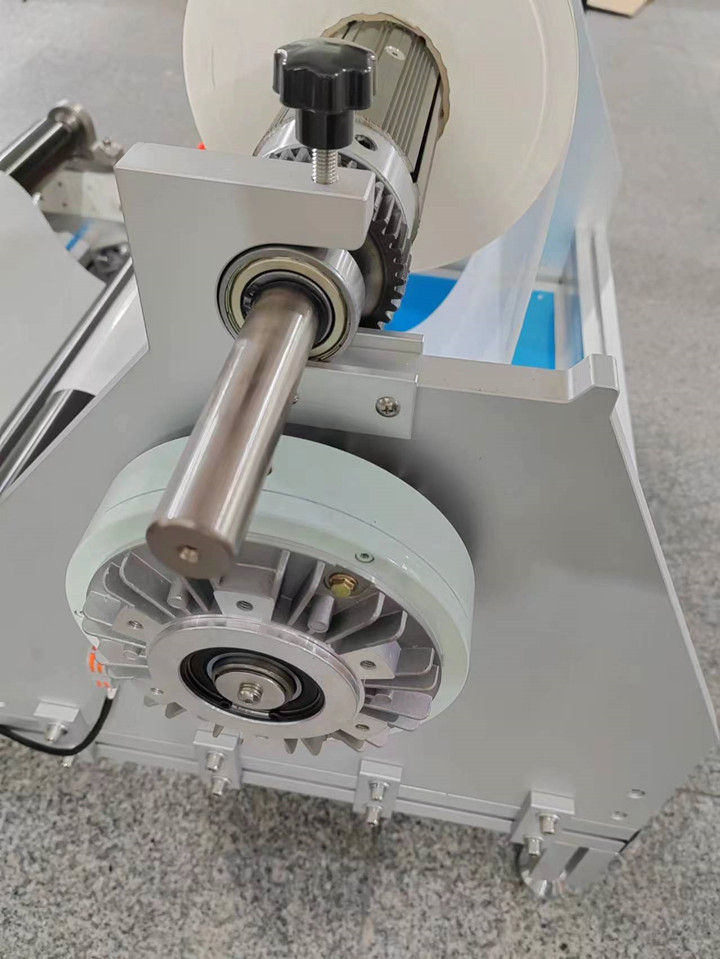

Tension control |
Adjustable tension |
|
Deviation correction device |
fully automatic deviation correction for feeding/receiving |
|
Drying duct fan |
adjustable speed |
|
Collecting and discharging diameter |
Collecting and discharging material diameter 300mm (customizable) |
|
Rear lamination |
finished lamination (steel pipe+rubber hose) |
|
Wind speed control |
with wind filtering at the outlet of the drying tunnel (uniform wind speed) |
|
Coating speed |
1-20 meters/minute (adjustable according to the drying condition of the adhesive) |
|

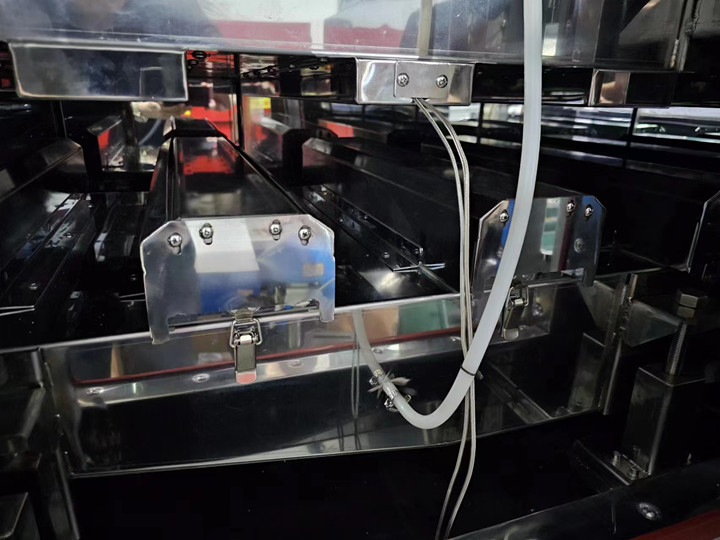

Drying passage roller |
304 stainless steel |
|
Drying channel material |
304 stainless steel (box) |
|
Heating method |
stainless steel heating tube |
|
Oven temperature |
room temperature -160 degrees (can be kept at a constant temperature) |
|
Drying track structure |
Tiled |
|
Waste heat recovery |
with automatic waste heat collector |
|
Glue supply method |
pressure bucket |
|
Expansion axis |
3-inch gas expansion axis |
|
Drying channel lifting |
cylinder lifting |
|
Exhaust system |
centrifugal fan (external interface 100MM) |
|
Equipment power supply |
380V Control AC24V |
|
Equipment power |
12KW (peak) |

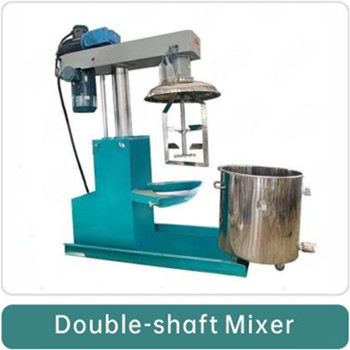

You might also need the following compatible upstream and downstream machines.
