Large 100-2000 L Three Axis Multifunctional Dispersion Mixer

The three-axis multifunctional mixing mixer is an industrial-grade model developed based on the dual-axis mixer, which integrates strong mixing, dispersion, and emulsification homogenization.

Please send your inquiry to joyhuang@simymachine.com

  • Item No.:

    SIMY-AX
  • Lead Time:

    10 days
  • Payment:

    Credit Card, Paypal, T/T , Western Union, LC
  • Warranty Period:

    1 year
  • Customizable:

    Yes
  • Product Detail

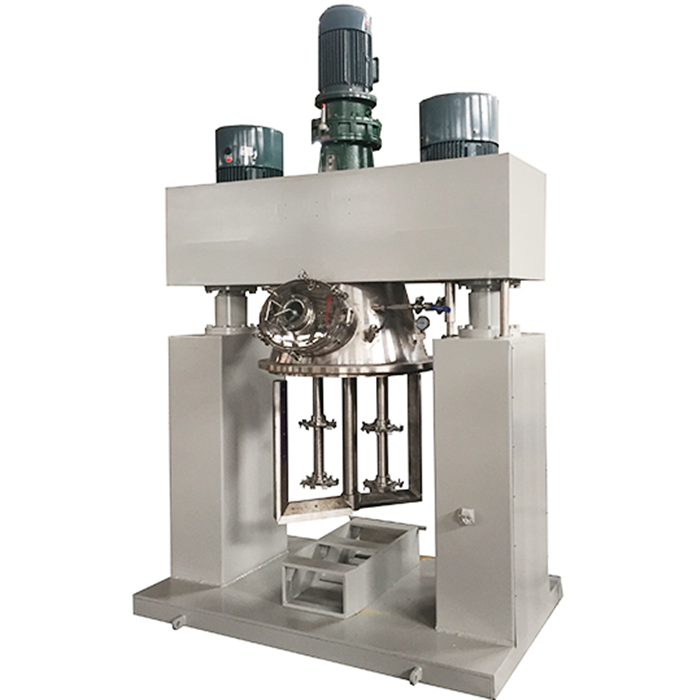

Large 100-2000 L Three Axis Multifunctional Dispersion Mixer


Product introduce

The three-axis multifunctional mixing mixer is an industrial-grade model developed based on the dual-axis mixer, which integrates strong mixing, dispersion, and emulsification homogenization; This equipment has a strong non-standard degree and can be selected in various blade forms based on the characteristics of the material. The conventional blade forms include anchor type, butterfly type, frame type, spiral type, horn type, etc; The high-speed part is equipped with high-speed dispersion heads and emulsification homogenization heads, widely used in industries such as food, medicine, cosmetics, adhesives, etc; For materials with temperature requirements, suitable mold temperature machines can be equipped for independent operation and high-temperature control accuracy.

Working principle

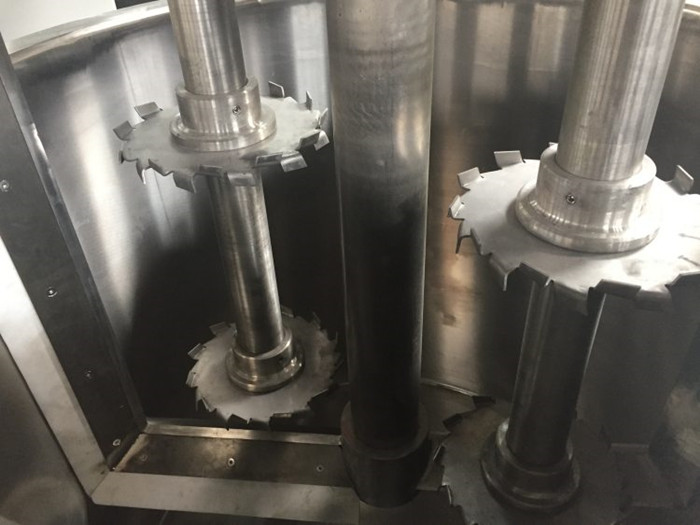

This machine usually adopts a dual hydraulic plunger system for lifting and lowering, and the transmission mechanism and mixing system adopt an integrated up-and-down lifting method. According to the different characteristics of the material, different mixing systems are used, which are generally divided into dispersion/drum mixing/dispersion, dispersion/mixing/emulsification, dispersion/mixing/emulsification, mixing/mixing/emulsification, and mixing/mixing/stirring, with strong non-standard characteristics and diverse combination forms; Three types of mixing modes are driven and controlled by three motors respectively; Under the drive of low-speed stirring blades, the material rotates and moves in circles along the axis. Under the high-speed centrifugal compression of local high-speed dispersion strong shear and high-speed homogenization emulsification head, the rapid mixing, crushing, dissolution, and even stirring of the material are achieved.

Application fields: Lithium battery paste, sealant, silicone, adhesive, ink, food, medicine, cosmetics, new energy materials, and other industries.

Applicable materials: dispersion and mixing of solid-liquid and liquid-liquid phases, mixing of various fluids with viscosity less than 2 million CPS and solid content less than 80%.


Specification

Model

S650

S800

S1000

S1300

S1500

S2000

Design Volume (L)

650

800

1000

1300

1500

2000

Available capacity (L)

500

650

800

1000

1300

1600

Power of agitator (KW)

15

18.5

22

30

37

45

Stirring rotation speed (RPM)

0-51

0-51

0-51

0-41

0-41

0-41

Dispersed power (KW)

22

30

37

45

55

75

Dispersion rotation speed (RPM)

0-1500

0-1500

0-1500

0-1500

0-1500

0-1500

Emulsification power (KW)

22

30

37

45

55

75

Emulsiation Speed (RPM)

0-1500

0-1500

0-1500

0-960

0-960

0-960

Power of agitator (KW)

15

18

22

30

37

45

Stirring rotation speed (RPM)

0-150

0-150

0-150

0-150

0-150

0-150

Hydraulic power (KW)

5.5

5.5

7.5

7.5

11

11

Lifting stroke (mm)

1100

1100

1200

1300

1400

1600

Vacuum power (KW)

4

4

4

5.5

5.5

7.5

Vacuum degree (MPA)

≤-0.098
