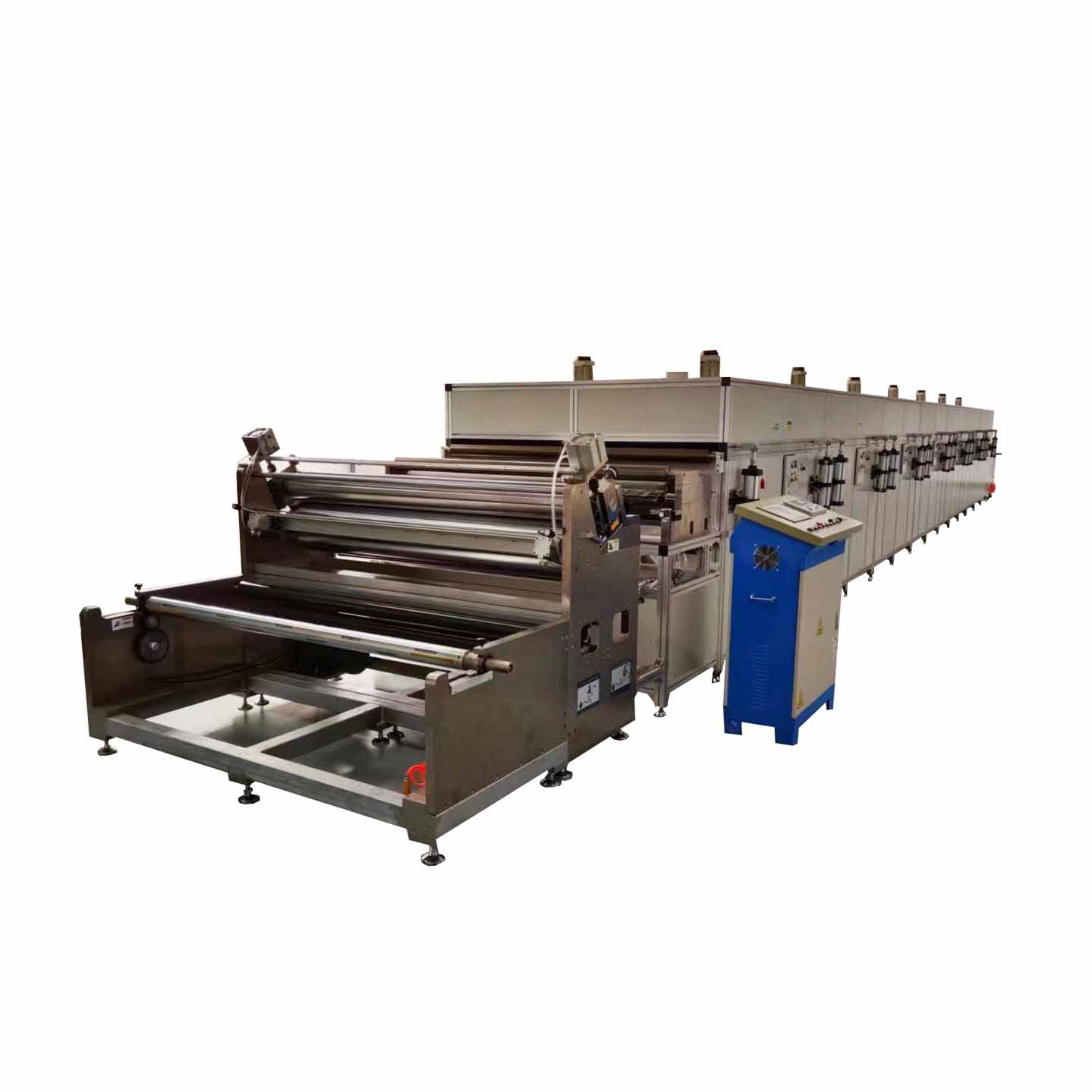

PET Optical Film Automatic Coating Machine
The coating machine is used for precise and efficient coating of PET optical film.
The coating width and speed can be customized.
Feature
Coating method: comma blade coater
There are electric heating at both end of the oven, thermostat control temperature
Frequency control, double frequency three motor control system, coating speed is adjustable.
Feeding part use magnetic powder brake to keep uniform and smooth tension, the air shaft is optional
Four shafts reciprocating rewinding part. (four rewinding shafts)
New EPC system at end of the oven.
This PET film coating machine also can be used to produce BOPP packing tape.
Application
Suitable for PET film glue coating.
Raw material: PET film, Solvent glue, Paper core.
specification
Coating width | 500mm-1000mm |
Oven length | 12M |
Voltage | 380V 50HZ |
Drying method | Electric |
PET thickness | 36micron |
Coating thickness | 70micron |
Coating speed | 0-30m/min |
Motor power | 1.1KW*3 |
Gross capacity | 15-25KW |
