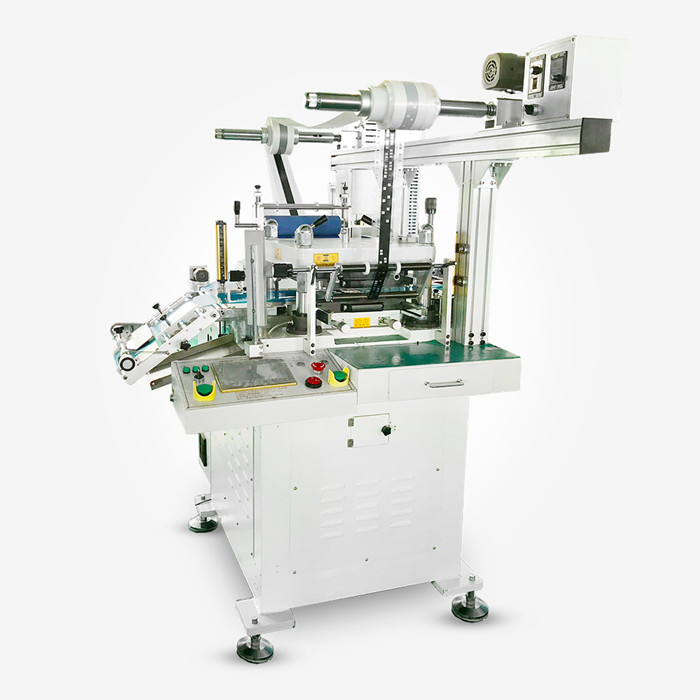

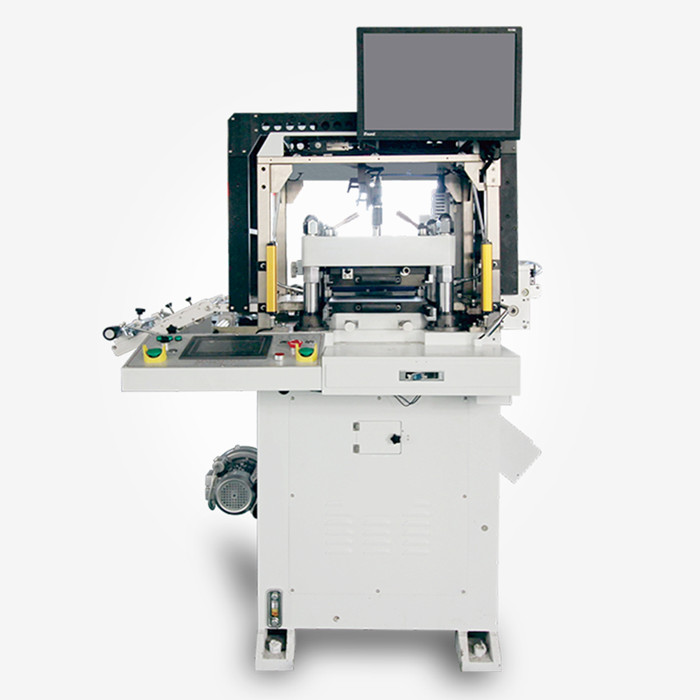

Visual Alignment Cross Asynchronous Die-Cutting Machine
Product introduce
This equipment can be used to finish laminating, die cutting, waste discharging, sheeting, winding, and other processes. Most of these working procedures are completed automatically and is thus very convenient.
Advantage:
1. Through the form of cross-cutting, in the process of die cutting process to solve the problem of material saving in the direction of product layout spacing.
2. Solve the problems of complicated processing methods in the layout of product materials on die-cutting parts by cross-cutting method.
3. Perfect the function of asynchronous die cutting, forming the process of asynchronous die uting in the whole process of die cutting accessories from the direction of material saving to layout saving.
4. The application of cross-asynchrony can solve the material wastage caused by product spacing.
Machine model
300E
350E
450E
Upper feeding width
280mm
330mm
440mm
Upper pulling accuracy
±0.08mm
±0.08mm
±0.1mm
Upper pulling speed
300pcs/min
300pcs/min
200pcs/min
Die cutting area
280mm*300mm
320mm*350mm
420mm*450mm
Overall pulling accuracy
±0.08mm
±0.08mm
±0.08mm
Overall punching accuracy
±0.05mm
±0.05mm
±0.05mm
Overall punching speed
300pcs/min
300pcs/min
200pcs/min
Use voltage
220V
380V
380V
Use power supply
0.6-0.8Mpa
0.6-0.8Mpa
0.6-0.8Mpa
Quality
1600kg
1800kg
2250kg
Appearance size
1400*1620*1700
1450*1620*1700
1500*1650*1700
