Vacuum Drying Oven with Leak Detection E4quipment
1.Correct usage method
It should be vacuumed before heating up. After reaching the rated temperature, if it is found that the vacuum degree has decreased, it is beneficial to add some more suction to extend the service life of the equipment.
Vacuum ovens are used in laboratories and production sites of scientific research institutions, professional colleges, industrial and mining enterprises, etc. to dry and heat treat items in a vacuum state.
Heating and drying items under vacuum has the following advantages
(1) Can reduce drying temperature
(2) Avoid heating some items to oxidize them
(3) Avoid heating air to kill biological cells
(4) No dust damage
2. Purpose
Widely used in research and application fields such as biochemistry, chemical engineering, healthcare, agricultural research, and environmental protection. Especially suitable for fast and efficient drying of materials with high drying sensitivity, easy decomposition, easy oxidation, and complex components.
3. Features:
The vacuum environment greatly reduces the boiling point of the liquid that needs to be expelled, and all vacuum drying can be easily applied to heat sensitive substances.
Widely used in industries such as chemical, electronics, food, light industry, pharmaceuticals, etc., it can dry materials in a vacuum state, with the advantages of fast drying speed, low pollution, and no damage to the internal quality of the dried items.
Specifications
|
Model |
Inside dimension |
External size |
Power specifications |
Maximum temperature |
Vacuum gauge |
Heating method |
Control method |
|
(W*()*H,mm) |
(W*()*H,mm) |
||||||
|
SIMY -A |
200*200*200 |
560*420*1260 |
AC220V 2KW |
200 |
SMC hand |
The inner bile and the outer hot air |
Manual control pumping |
|
SIMY -1 |
300*300*300 |
660*570*1360 |
AC220V 2.5KW |
200 |
|||
|
SIMY -2 |
400*400*400 |
750*560*1480 |
AC380V 3KW |
200 |
|||
|
SIMY -3 |
500*500*500 |
860*730*1480 |
AC380V 5KW |
200 |
|||
|
SIMY -4 |
610*610*610 |
970*850*1580 |
AC380V 6KW |
200 |
|||
|
SIMY -4F |
660*750*620 |
1110*1260*1680 |
AC380V 6KW |
200 |
Touch screen inside display |
The heat inside the furnace follows |
Touch screen +PLC |
|
SIMY -5F |
700*800*1000 |
1140*1030*1680 |
AC380V 9KW |
200 |
|||
|
SIMY -7F |
700*800*1500 |
1340*1030*2230 |
AC380V 9KW |
200 |
|||
|
SIMY -8F |
1200*1200*1500 |
1740*1520*2350 |
AC380V 10K W |
80 |
Water circulation heating |
||
|
SIMY -2F-2D |

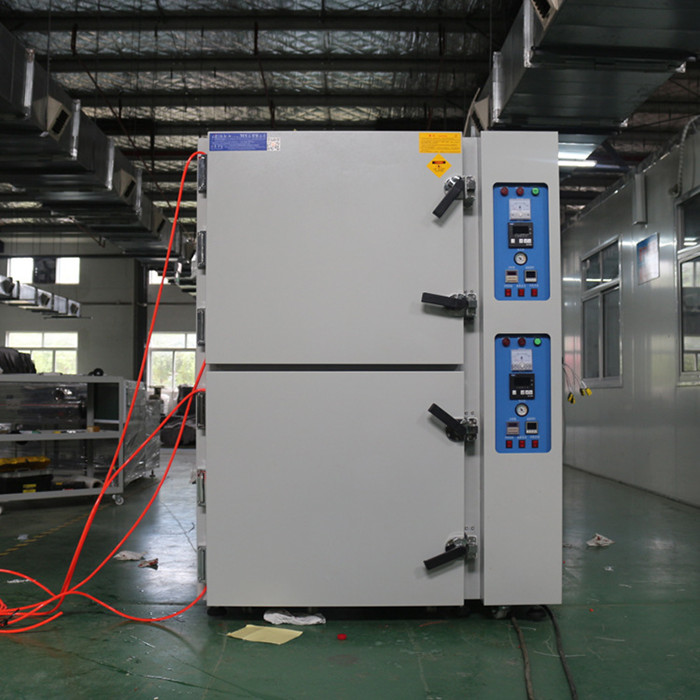

600 * 600 * 400 * 2 boxes |
1240*950*1780 |
AC380V 10K W |
200 |
The inner bile and the outer hot air |
||
|
SIMY -1F-3D |

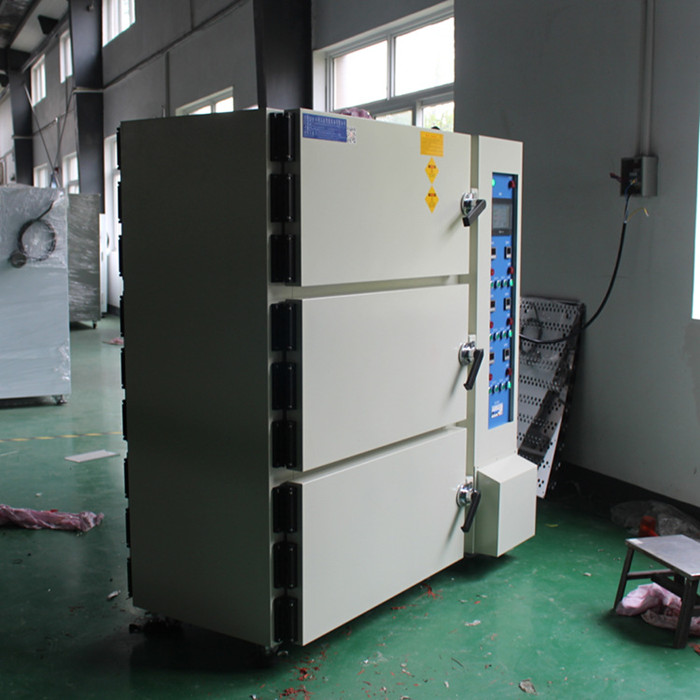

660 * 500 * 280 * 3 boxes |
1260*800*1920 |
AC380V 13.5KV |
150 |
Touch screen inside display |
Extra-biliary radiation |
Touch screen +PLC |
|
SIMY -2F-3N |
800 * 600 * 330 * 3 boxes |
1560*1080*1800 |
AC380V 16K W |
200 |
Touch screen inside display |
Extra-biliary radiation |
Touch screen + C |
|
SIMY -3F |
600*600*600 |
1380*1280*1680 |
AC380V 5KW |
200 |
Touch screen inside display |
The heat inside the furnace follows |
Eroching screen + PLC |
|
SIMY -3F-2D |
620 * 650 * 605 * 2 boxes |
1320*1000*2000 |
AC380V 12K W |
300 |
SMC hand |
Extra-biliary radiation |
Manual control pumping |
|
SIMY -3F-3D |
860 * 800 * 330 * 3 boxes |
1650*950*1980 |
AC380V 12K W |
200 |
Touch screen inside display |
The inner bile and the outer hot air |
Touch screen +PLC |
|
SIMY -3F-3DL |
800 * 610 * 280 * 3 boxes |
1520*778*1891 |
AC380V 9KW |
200 |
Touch screen inside display |
Extra-biliary radiation |
Touch screen +PLC |
|
SIMY -4F |
600*800*1000 |
900*1500*1150 |
AC380V 6KW |
200 |
Touch screen inside display |
Extra-biliary radiation |
Touch screen +PLC |
|
SIMY -5F |
700*800*1000 |
1060*1380*1780 |
AC380Y 7.2KW |
200 |
Touch screen inside display |
The heat inside the furnace follows |
Touch screen +PLC |
