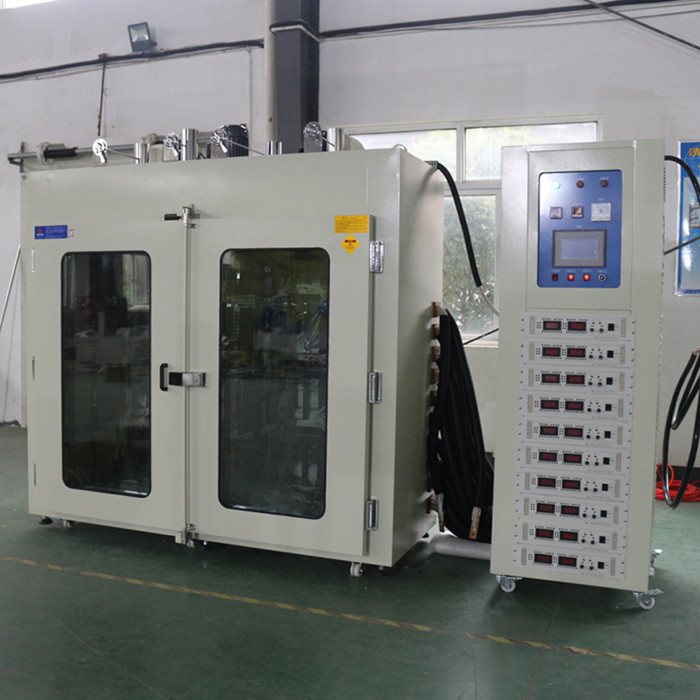

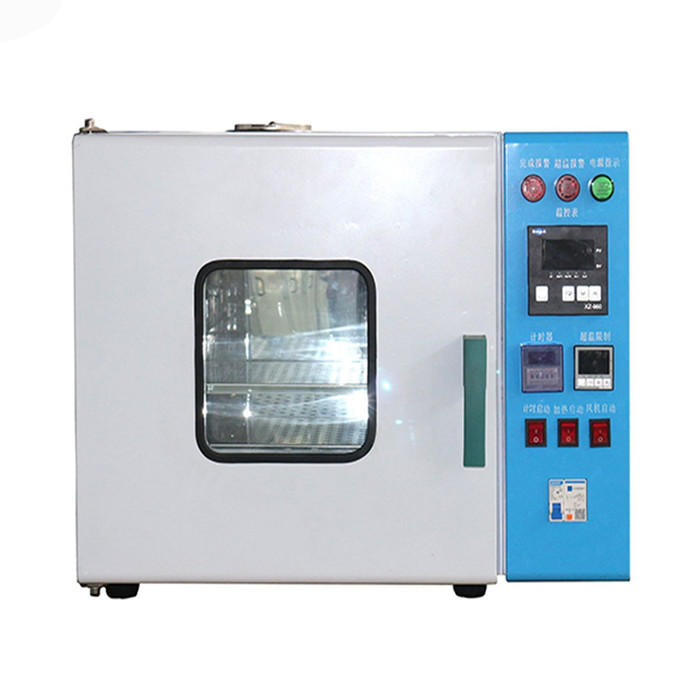

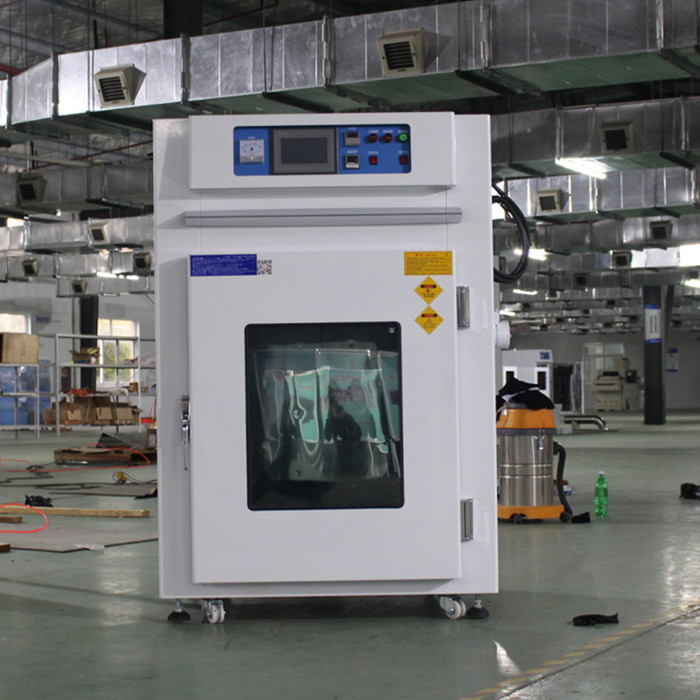

Aging Test Chamber Hot Air Aging Chamber
1. Introduction
The aging test chamber is a climate simulation test that simulates the various factors involved in the actual use conditions of a product to strengthen the process of testing the aging of the product under corresponding conditions.
Mainly providing users with different high-temperature environments, detecting the use status of products in high-temperature environments, quickly evaluating products or exposing their defects, and ensuring product quality.
2. Purpose:
Used to test the variability characteristics of plastic, rubber, leather, and cloth materials before and after heating.
3. Scope of application:
It is an essential testing equipment in the fields of aviation, automotive, home appliances, scientific research, and other fields, used to test and determine the parameters and performance of electrical, electronic, and other products and materials after high-temperature or constant temperature environmental changes during testing
4. Features:
- Made of mirror stainless steel gas welding, the box body is made of high-quality steel plate, with a beautiful and novel appearance.
- Using a microcomputer with over temperature deviation protection and digital display P I. D temperature controller with timing function, precise and reliable temperature control.
- The hot air circulation system is composed of fans that can continuously operate at high temperatures and suitable air ducts, improving the uniformity of temperature in the studio
- Adopting a new type of synthetic silicon sealing strip, it can operate at high temperatures for a long time, has a long service life, and is easy to replace
- The air intake and exhaust volume inside the box can be adjusted from the temperature control panel.
- The independent temperature limit alarm system automatically interrupts when the temperature exceeds the limit, ensuring the safe operation of the experiment without accidents.
Specifications
|
Type |
Model |
Inside dimension |
External size |
Power specifications |
Gate-type |
Maximum temperature /℃ |
Humidity uniformity |
|
(W*D*H,mm) |
(W'D'H,mm) |
||||||
|
Laboratory |
SIMY -27L-300 |
300*300*300 |
720*450*550 |
AC220V 1KVA |
simple gate |
Normal temp- -200℃ |
±1.5%℃ |
|
SIMY -42L-350 |
350*350*350 |
790*500*600 |
AC220V 2KVA |
simple gate |
Normal temp- -200℃ |
±1.5%℃ |
|
|
SIMY -64L-400 |
400*400*400 |
780*560*680 |
AC220V 2KVA |
simple gate |
Normal temp- -200℃ |
11.5%℃ |
|
|
SIMY -72L-450 |
450*400*400 |
B40*550*650 |
AC220V 3KVA |
simple gate |
Normal temp- -200℃ |
±1%℃ |
|
|
SIMY -125L-500 |
500*500*500 |
890*650*750 |
AC22UW 3.5KVA |
simple gate |
Normal wet- -200℃ |
± 1%℃ |
|
|
SIMY -150L-600 |
600*500*500 |
890*650*750 |
AC220V 4KVA |
simple gate |
Normal temp- -200℃ |
±1%℃ |
|
|
SIMY -216L-600 |
600*600*600 |
1000*750*850 |
AC380V 4.5KVA |
simple gate |
Normal temp- -200% |
±1%℃ |
|
|
Industrial |
SIMY -7 |
620*500*900 |
1100*790*1580 |
AC380V 6KVA |
simple gate |
Normal temp- -200℃ |
±1.5%℃ |
|
SIMY -3F |
500*600*750 |
900*795*1420 |
AC380V 6KVA |
simple gate |
Normal temp- -200℃ |
±2%℃ |
|
|
SIMY -3F-03 |
600*600*600 |
1060*840*1680 |
AC380V 5KVA |
simple gate |
Normal temp -150℃ |
±2%℃ |
|
|
SIMY -5 |
1000*600*1000 |
1400*920*1680 |
AC380V 9KVA |
double gate |
Normal temp- -200℃ |
±2%℃ |
|
|
SIMY -5F |
800*800*1200 |
1360*958*1880 |
AC380V 12KVA |
simple gate |
Normal temp- -200℃ |
±2%℃ |
|
|
SIMY -8F |
1000*1000*150 |
1560*1160*2290 |
AC380V 15KVA |
simple gate |
Normal temp- -150℃ |
±2%℃ |
|
|
SIMY -9F |
1800*800*1500 |
2500*950*1950 |
AC380V 10KVA |
double gate |
Normal temp- - -100℃ |
±2%℃ |
|
|
SIMY -10F |
2600*1300*1500 |
3320*1560*2290 |
AC380V 22KVA |
double gate |
Normal temp - -100℃ |
±2%℃ |
|
|
High temperature |
SIMY -2 |
500*500*600 |
980*860*1650 |
AC380V 3KVA |
simple gate |
Normal temp- -300℃ |
±2%℃ |
|
SIMY -2F5 |
500*500*600 |
980*860*1650 |
AC220V 2KVA |
simple gate |
Normal temp-300℃ |
±2%℃ |
|
|
SIMY -4 |
800*600*1000 |
1100*1060*1680 |
AC220V 6KVA |
simple gate |
Normal temp- -250℃ |
±1.5%℃ |
|
|
SIMY -5F |
800*800*1000 |
1080*960*1680 |
AC220V 10KVA |
simple gate |
Normal temp- -300℃ |
±2%℃ |
