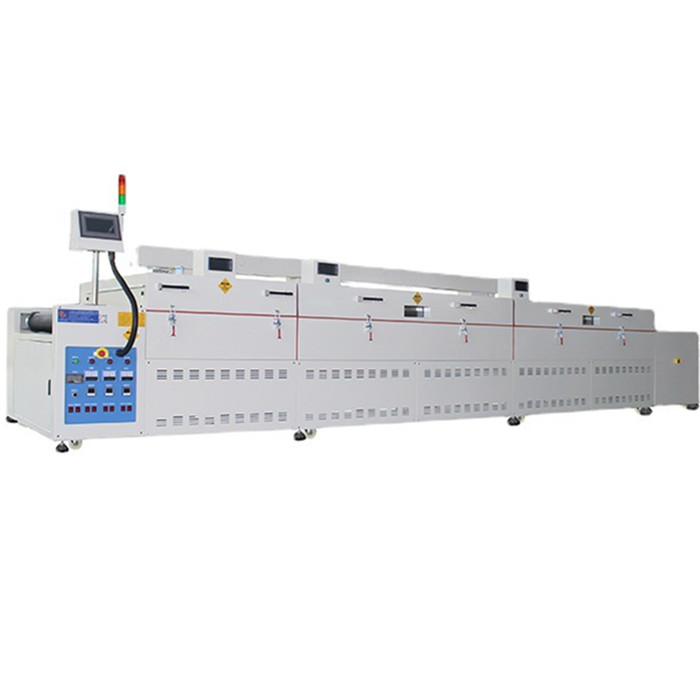

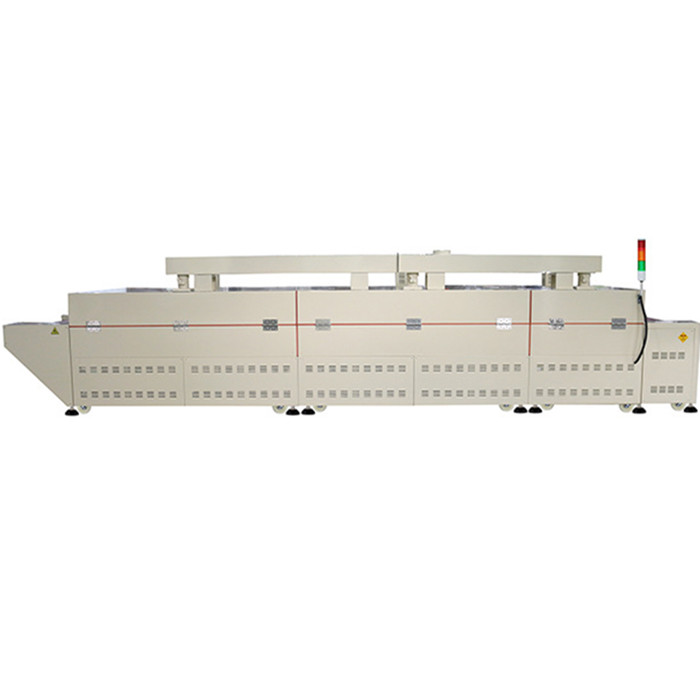

Blood Glucose Early Pregnancy Test Paper Industry Enzyme Medium and Low Temperature Drying Tunnel Oven
1. Introduction
This machine is suitable for medium to low temperature drying of blood glucose test paper, biological enzymes, etc.
2. Mechanical structure
2.1 Internal size: L6000mmxW10omm × H200mm
2.2 External dimensions: L7500mmxW1400mmxH1350mm
2.3 Material:
a. The outer box is made of SS41 # 1.2mm cold-rolled steel plate, which has undergone rust prevention treatment and is coated with anti-static powder paint, with wrinkles in beige color
b. The inner box is made of SUS430 # 1.0mm mirror stainless steel plate and sealed by argon arc welding
c. Install a filter at the air inlet and use a three pipe centralized exhaust system for exhaust
d. Clean design, dust-free. Suitable for use in clean production workshops. The rack is made of 50 * 50 * 1.5mm square pipes, with powder paint on the surface and side sealing plates on the rack. The machine is elegant and beautiful
f. The feeding section is 800mm long, the heating section is 6000mm long (divided into three heating sections, each section is 2000mm), and the discharge section is 700mm, with a total length of 7500mm.
g. 120k fiberglass insulation cotton is used, with an insulation coefficient of 0.039, an insulation layer of 80mm, a gas layer of 30mm, and an external temperature of ≤ room temperature+10 ℃
h. Install one glass window for each heating section, with built-in lighting for easy observation of the furnace situation
i. The control panel is located in the feeding section of the machine, and the conveying direction is facing the control panel from left to right.
J. The electric support rod of the heating section is designed with a lift up design, which is convenient for maintenance and cleaning.
