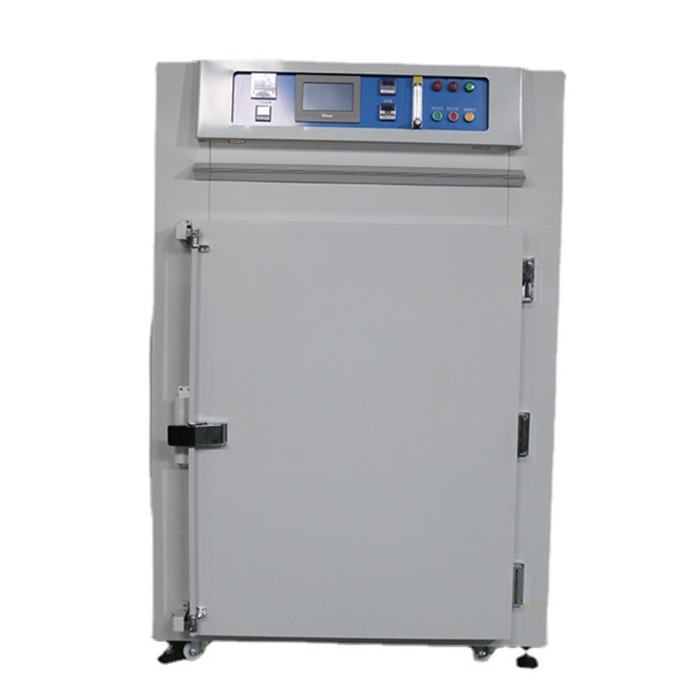

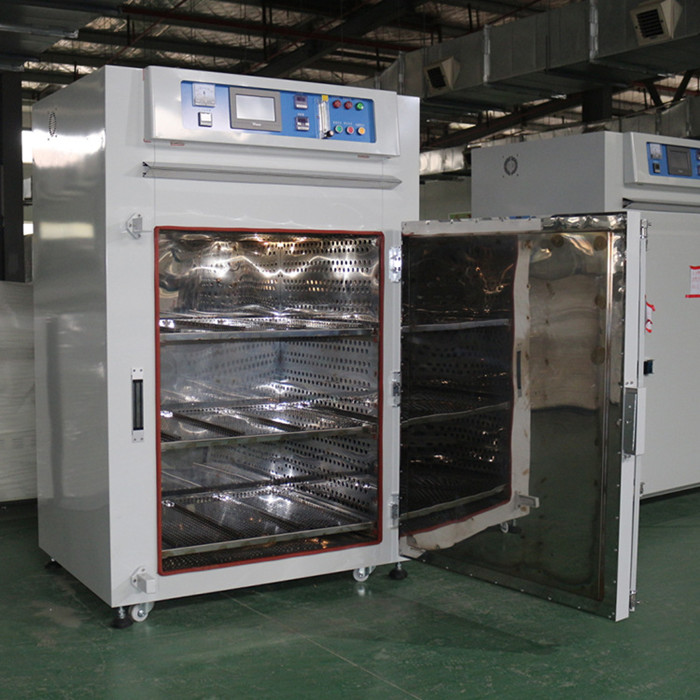

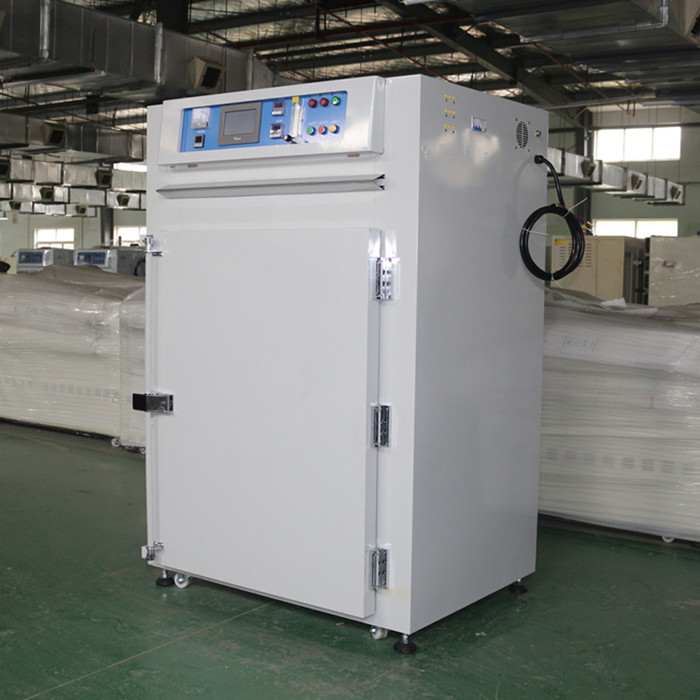

Small Nitrogen Filled Oven Half Body Nitrogen Conduction Oven
Product introduce
Nitrogen filled ovens, also known as inert atmosphere protection ovens, are used for baking, drying, preheating, tempering, aging and other purposes in industries such as semiconductors, chips, new energy batteries, photovoltaic modules, LED optoelectronics, precision metals, medical equipment, automotive components, communication equipment, chemical industry, etc. This industrial nitrogen filled drying oven is a new type of electric blast drying oven that can create an oxygen free, clean, and constant temperature environment. It is filled with nitrogen while heating, suitable for baking and heating high-temperature and easily oxidized products.
Equipment features:
1) The exterior is treated with SECC steel plate and refined powder baking paint; The interior is made of SUS stainless steel;
2) New high-temperature resistant long shaft motor;
3) Turbofan;
4) Sillcon packing;
5) Overtemperature protection: Overload automatic power outage system;
6) Circulation system: forced horizontal air supply circulation;
7) Heating system: PID+S.S.R;
8) Temperature controller: PID microcomputer control, fully automatic constant temperature, rapid temperature compensation function;
9) Timer: Temperature to time, hour to power off alarm indication;
10) Nitrogen charging device: gas pressure reducing valve, inert gas flow control, inlet and outlet pipeline
Specifications
By using specialized detection instruments: vacuum (-95KPA) or nitrogen (-18KPA) output signals and send them to the PLC, which completes the following functions: vacuuming, filling nitrogen, vacuuming, and filling nitrogen (repeated circulation);
1. Three independent dual channel temperature detection
2. Temperature setting range: room temperature -150 ℃
3. Vacuum degree: -0.095-0.1Mp
4. Temperature uniformity inside the vacuum box: ± 3% ℃
5. Box wall feel temperature:<35 ℃
6. Three temperature zones are equipped with independent high flow hot air circulation, which does not interfere with each other
7. Working power supply: three-phase five wire system, AC380V
8. Maximum power consumption: 18Kw
9. The net weight of the machine is approximately 730KG
10. Heating time: room temperature~90 ℃, about 30 minutes required. Heating tube power: 5KW (per layer)
