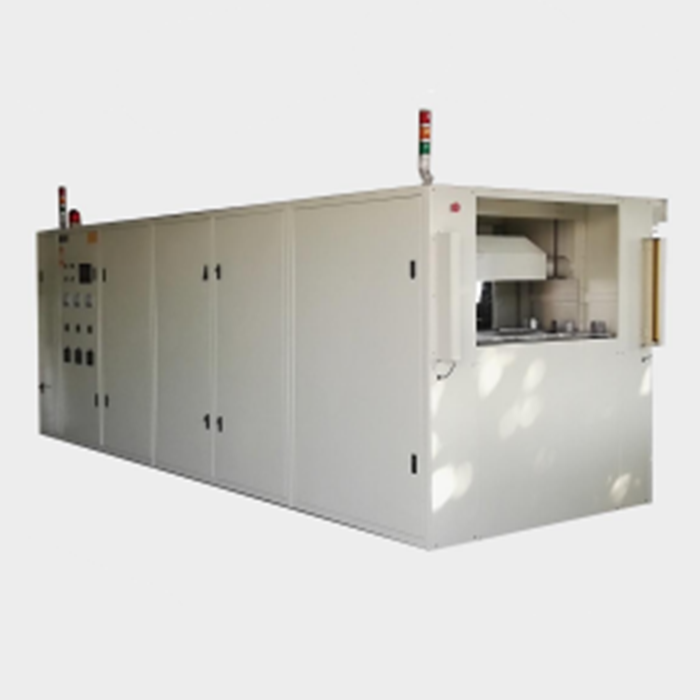

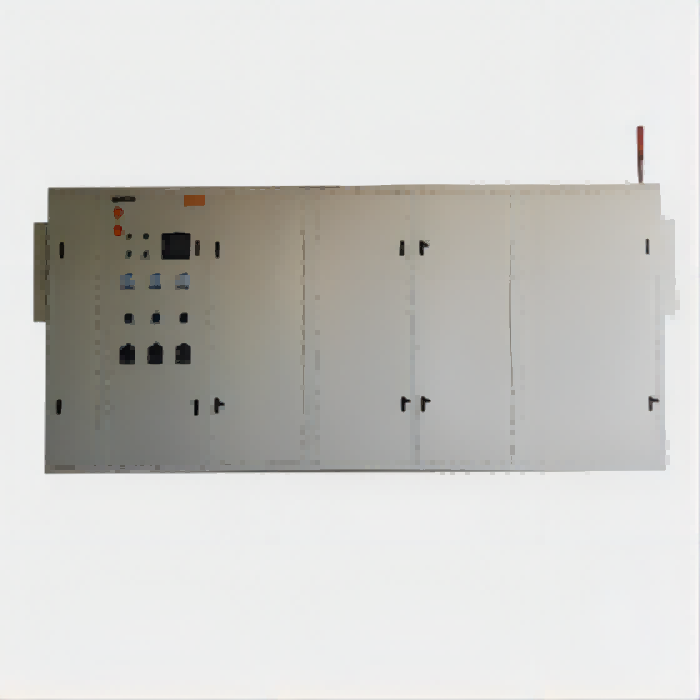

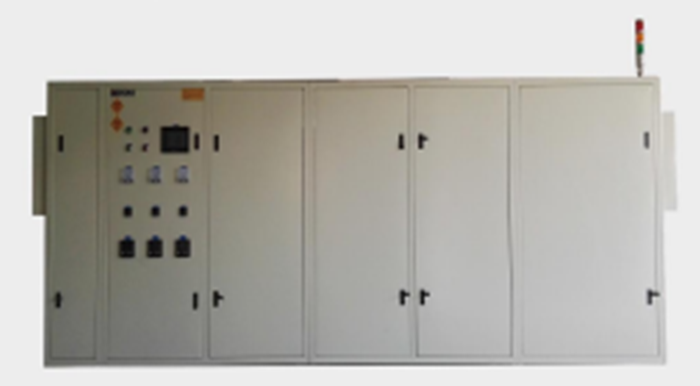

Air suspension hot air dryer
Application scope: Mainly used in the production process of optical thin materials such as flexible copper clad panels (FCCL, automotive insulation film, automotive explosion-proof film, high-end tape, etc.), the substrate enters the drying furnace after being coated, and is suspended in the box by air flow for drying.
Features: Because the substrate is suspended in the box, it does not directly contact the box, effectively avoiding material scratches and scratches, improving product quality, and increasing production efficiency by at least 2 times.
Specifications
Power supply: AC380V 350HZ 38KVA
Inner size: W1100mmxL6000mmxH750mm
External dimensions: W1550mmxL8000mmxH1950mm
Machine structure:
1. The input section is 1000mm and the discharge section is 1000mm.
2. Heating section length 6000mm (divided into 3 heating sections, each section length 2000mm)
3. Transportation network width is 800mm
4. Entrance and exit height is 100mm
5. Upper, middle and lower three-layer transport.
Temperature parameters:
1. Temperature range: normal temperature ~200℃, normal temperature ~150℃takes about 20 minutes
2. Thermocontroller: temperature controller, number setting, PID automatic calculation, LED display.
3. Temperature control accuracy of the temperature controller:±0.5%FS
4. Temperature control uniformity:±2% (empty furnace test)
Functional features:
1. Fast drying permeability and uniform temperature.
2. SCR control, with small temperature fluctuation buffer.
3. Clean type design, suitable for dust-free workshop use.
4. Multi-layer heat insulation design, good sealing, low temperature outside.
5. The interior of the wall machine is made of mirror stainless steel plate sealed by argon welding, which is beautiful in appearance.
