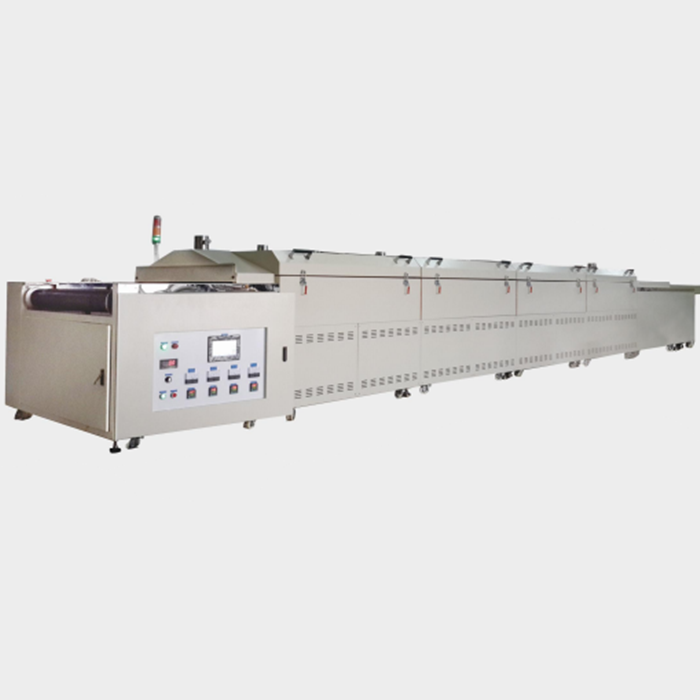

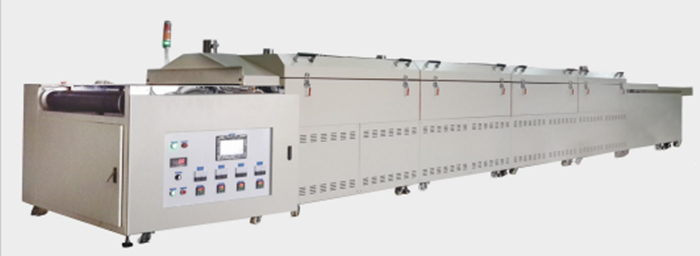

Tunnel type hot air IR dryer
Equipment Usage
This equipment is mainly designed for precision product industries such as TP, LCD, COVERLENS, OGS, light guide plates, FLM films, etc. It is mainly dedicated to the application fields of Touch Plane silver paste baking, FILM aging baking, CG ink/mirror silver/IR oil curing baking processes.
Specifications
Model
Power
Heat
The feeding section is long
Heated section length
Length of cooling section
The effluent section is long
Entry and exit
Transmission network
Temperature
IR-8-4
380V
IR
1200
6000
1000
800
50
Teflon
Normal temperature of-200℃
1R-9-4
380V
IR
1300
4700
1500
900
50
Teflon
Normal temperature of-200℃
IR-10-3
380V
IR
500
5000
500
200
Teflon
Normal temperature of-200℃
IR-10-4
380V
IR
1100
6000
1100
1000
50
Teflon
Normal temperature of-200℃
IR-10-6
380V
IR
1000
10000
1000
1000
50
Stainless steel chain network
Normal temperature of-200℃
1R-8-3
380V
IR
800
3500
600
300
350
Stainless steel chain plate
Normal temperature of-200℃
IR-16-9
380V
IR
2950
24000
2500
100
Stainless steel mesh
And-400℃ at normal temperature
IR-11-3
380V
IR
6500
5000
500
50
Teflon
Normal temperature of-200℃
IR-14-15
380V
IR
1000
30000
100
Chain
Normal temperature of-200℃
way
(mm)
(mm)
(mm)
(mm)
altitude (mm)
scope
(Including 500 preheating)
+ teflon
