Solar Photovoltaic Glass Oven, LCD Hot Press Industrial Oven
1. Application
Suitable for hot press curing of LCD glass frame adhesive.
2. Machine design

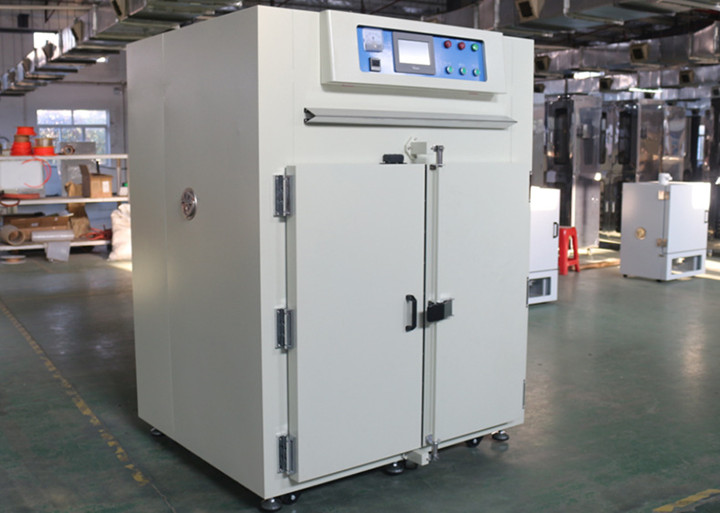

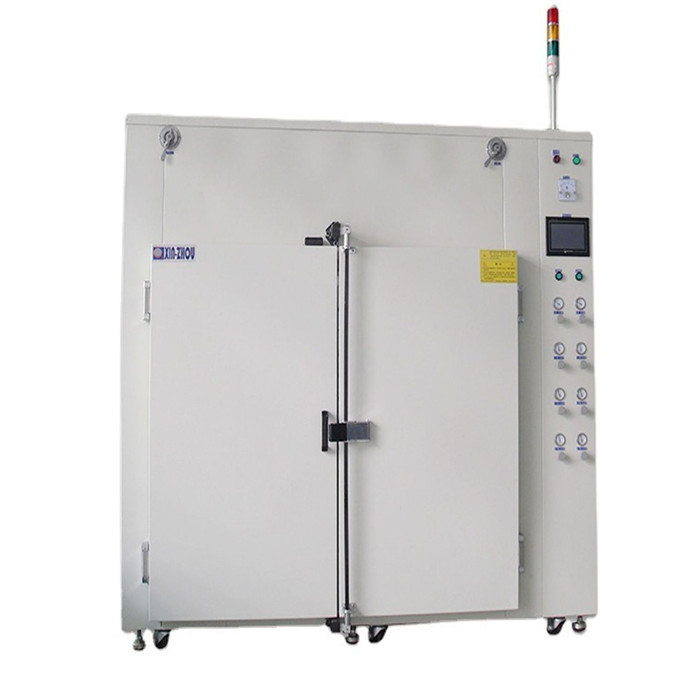

Adopting a double door design, the control box is located on the right side of the machine.
The interior is made of SUS430 # stainless steel plate,
The exterior is made of SS41 # steel plate, which has undergone rust prevention treatment and is painted in beige color.
Using 100K advanced insulation cotton with tin thin cotton and asbestos board for insulation, with a insulation thickness of 100mm.
Using high-temperature resistant silicone adhesive for tightening.
Adopting a double door with a center pillar and a center pillar of 150mm, with a left card type right explosion-proof door buckle.
3. Temperature controller
Adopting Taiwan P961 multi stage temperature automatic controller (digital display and setting, LED display, SSR output, PID automatic calculation high-precision controller, with two sets of programs, each set of 8-stage settings, with an accuracy of ± 0.3%).
OMRON9999 timer, digital setting and display, when the temperature reaches the timer, it will switch to electric heating → BZ alarm, over temperature → BZ alarm.
4. Air supply system
Double sided horizontal forced circulation air supply, uniform heating temperature.
Adopting a long axis motor specifically designed for hot air ovens.
Adopting a powerful multi wing wind wheel and stainless steel wind hood.
