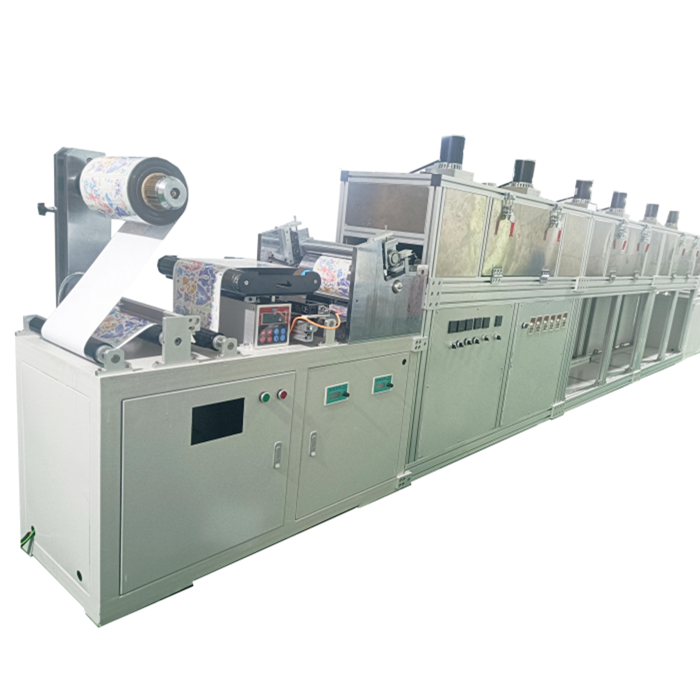

Extruded Slit Coater Air-Cooled Transfer Coate
Product functional features
1.Slit coating as a pre-metered coating method, the slit coiner is very efficient in terms of material usage and has a very low level of ink loss compared to other deposition methods such as rotary coating or spraying and screen printing.
2.The system uses the coating die to move precisely with respect to the substrate. By controlling the rate, precision metering and pumping the process fluid, the liquid chemical material is extruded from the gap between the upper and lower dies and coated on the moving substrate (glass, stainless steel and plastic, etc.) to form a film. The thickness of the coating can be calculated directly from the liquid flow rate and the moving speed of the substrate, and its advantages are high uniformity of the coating, wide range of applicable coating viscosity, fast coating speed, and can produce a large area of the coating.
3.A variety of specifications and sizes can be customized, a variety of humanized configuration can be selected: heating table, special gas shower system, multi-size tool head, multi-specification gasket, etc., to meet the various needs of customers, customized high precision professional equipment for customers.
Specification
Coating accuracy |
Thickness accuracy +5um/ customizable |
Temperature sensing accuracy of hopper |
No heating/heating 0-300℃ accuracy 0.3%FS/ sh 1℃ |
Cover film configuration |
Pressure (customizable) No pressure |
Curing temperature range |
Can be customized 0-300℃ |
Receiving configuration |
The outside diameter of the balloon shaft can be customized q75 |
Rectify deviation |
Customizable 300 or 500mm |
Tension |
Independent electronic tension controller |
Speed |
0-30m/min According to the glue curing time adjustment precision servo control ≤0.2% |
Roll-in and roll-out configuration |
Bearing 100kg roll diameter ≤500mm; Wide width: can be customized 300 or 500mm |
Mode of operation |
Manual/automatic/cut-off alarm |
Power supply |
Basic voltage: single-phase 220V 4.5KW(Change voltage according to demand) |
Corona machine |
0-3000Woptional |

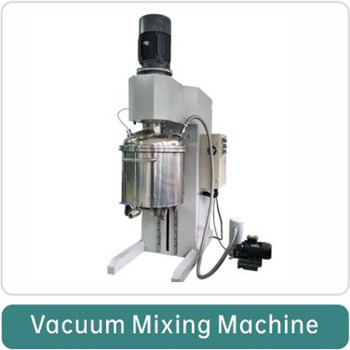

You might also need the following compatible upstream and downstream machines.
