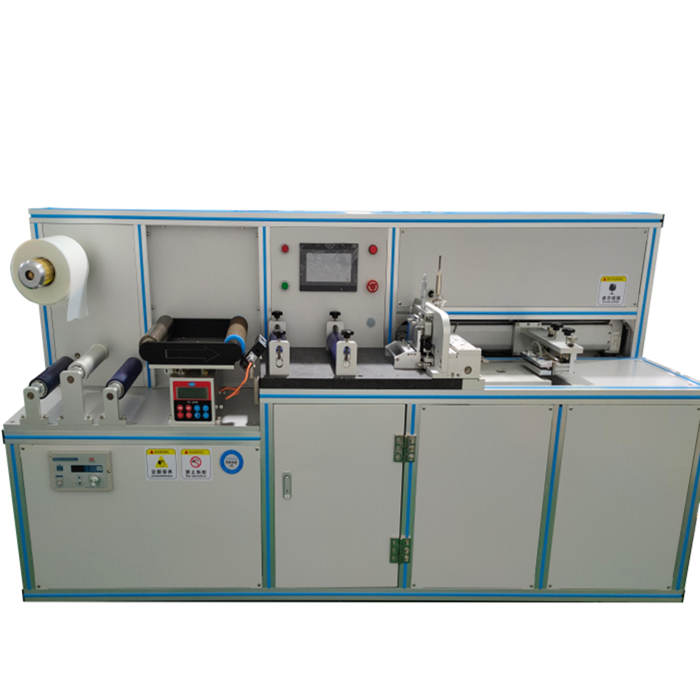

Multi-Function Film Coating Machine Lithium Battery Diaphragm Coating Machine
Product description
Lithium battery diaphragm coater, can be continuous and intermittent coating and other types of coating requirements. Equipment coating precision, consistency and stability, widely used in lithium-ion battery, graphene film, optical film, ceramic film, tape and a variety of functional film industry.
Specification
|
Coating accuracy |
Thickness accuracy +5um/ customizable |
|
Temperature sensing accuracy of hopper |
No heating/heating 0-300℃ accuracy 0.3%FS/ sh 1℃ |
|
Cover film configuration |
Pressure (customizable) No pressure |
|
Curing temperature range |
Can be customized 0-300℃ |
|
Receiving configuration |
The outside diameter of the balloon shaft can be customized q75 |
|
Rectify deviation |
Customizable 300 or 500mm |
|
Tension |
Independent electronic tension controller |
|
Speed |
0-30m/min According to the glue curing time adjustment precision servo control ≤0.2% |
|
Roll-in and roll-out configuration |
Bearing 100kg roll diameter ≤500mm; Wide width: can be customized 300 or 500mm |
|
Mode of operation |
Manual/automatic/cut-off alarm |
|
Power supply |
Basic voltage: single-phase 220V 4.5KW(Change voltage according to demand) |
|
Corona machine |
0-300Woptional |

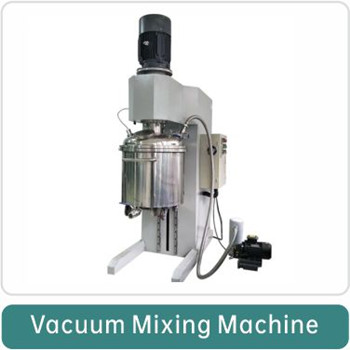

You might also need the following compatible upstream and downstream machines.
