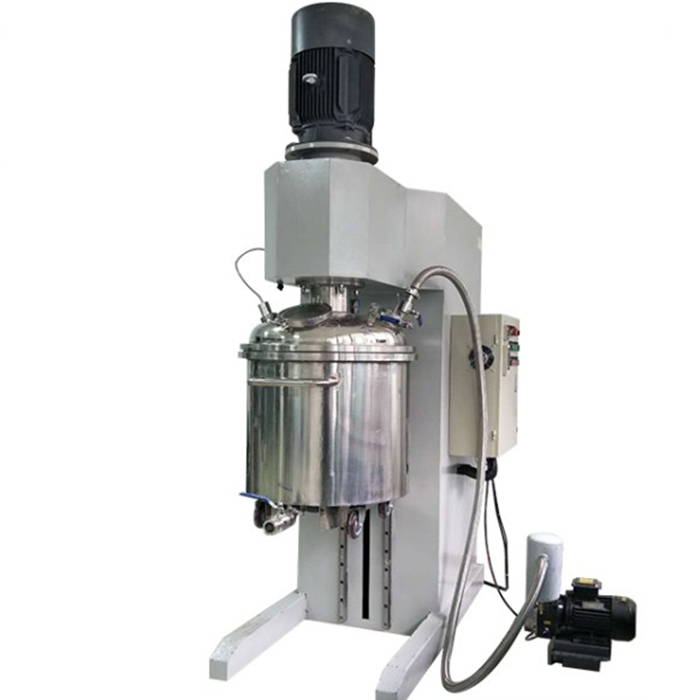

100-800 L Concentric Dual Axis Multifunctional Vacuum Dispersion Mixer
Product introduce
The concentric dual axis multifunctional vacuum dispersion mixer is an industrial grade model specially provided by Baomian Enterprise for materials with a viscosity between 10000 cps and 1 million cps that require strong stirring and dispersion. It has a high cost-effectiveness; This equipment has a strong non-standard degree and can be selected in various blade forms based on the characteristics of the material. The conventional blade forms include anchor type, butterfly type, frame type, spiral type, horn type, etc; For materials with temperature requirements, suitable mold temperature machines can be equipped for independent operation and high temperature control accuracy.
Working principle
This machine uses two motors to provide power, and the high-speed dispersed shaft transmission uses belts or synchronous belts for transmission, with minimal power loss. It is equipped with a high-end frequency converter for speed regulation, and the dispersed disc operates at high speed and performs strong shearing function under the drive of the high-speed shaft; The low-speed shaft is driven by a chain wheel with a high transmission ratio and is equipped with a fixed speed reducer, which can transmit large torque and drive the mixing shaft to move in a circular direction along the axis. The mixing blade is equipped with a wall scraping device to achieve wall adhering movement without dead angles on the inner wall of the barrel; The equipment transmission mechanism and mixing system are operated by a hydraulic plunger system for overall lifting and lowering.
Specification
|
Model |
J-T100 |
J-T150 |
J-T200 |
J-T250 |
J -T300 |
J-T500 |
J-T650 |
J-T800 |
|
Design Volume (L) |
100 |
150 |
200 |
250 |
300 |
500 |
650 |
800 |
|
Available capacity (L) |
80 |
120 |
160 |
200 |
240 |
400 |
500 |
650 |
|
Mixing work (KW) |
2.2 |
3 |
4 |
5.5 |
7.5 |
11 |
15 |
18.5 |
|
Stir speed (RPM) |
0-85 |
0-85 |
0-85 |
0-65 |
0-65 |
0-65 |
0-52 |
0-52 |
|
Disted work (KW) |
5.5 |
7.5 |
7.5 |
11 |
11 |
18.5 |
22 |
30 |
|
Breaking-off rotational speed (RPM |
0-1500 |
0-1500 |
0-1500 |
0-1500 |
0-1500 |
0-1500 |
0-1500 |
0-1500 |
|
Hydraulic power master (KW) |
1.1 |
1.5 |
1.5 |
1.5 |
2.2 |
3 |
3 |
4 |
|
Lifting stroke (mm |
700 |
800 |
800 |
900 |
900 |
1000 |
1100 |
1100 |
|
Vacuum power (KW) |
15 |
1.5 |
2.2 |
2.2 |
2.2 |
3 |
3 |
4 |
