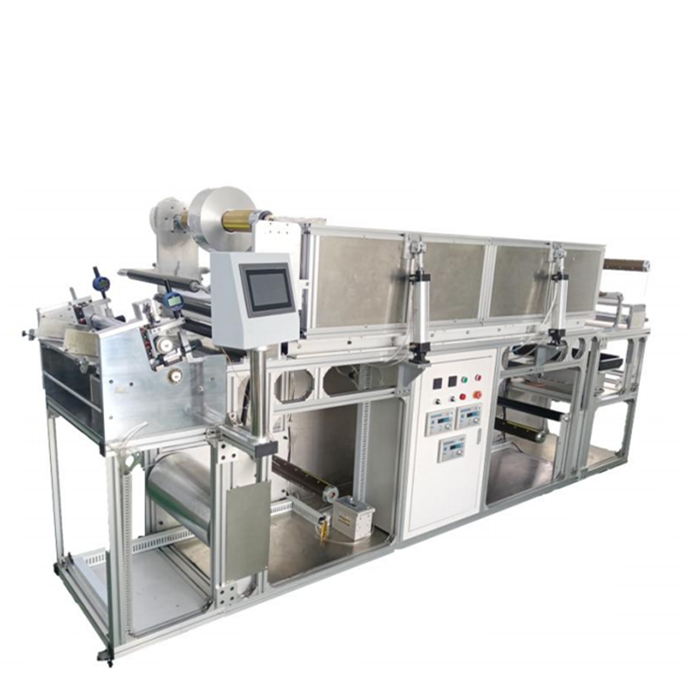

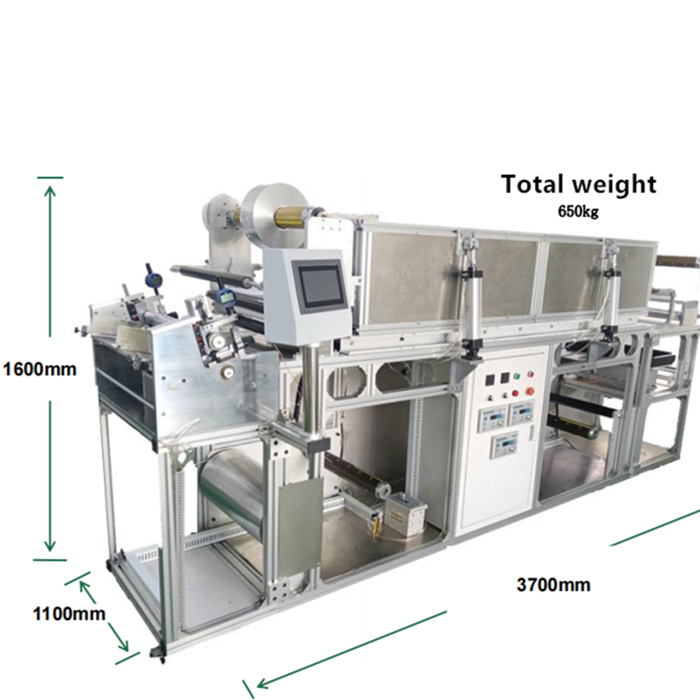

Customizable Multifunctional Roll To Roll Coater Comma Scraper Coater
Product description
1.The commas scraper coatingmachine is suitable for coating substrates such as release paper, PET, BOPPP, PE and other materials, suitable for coating with large amount of wet glue.

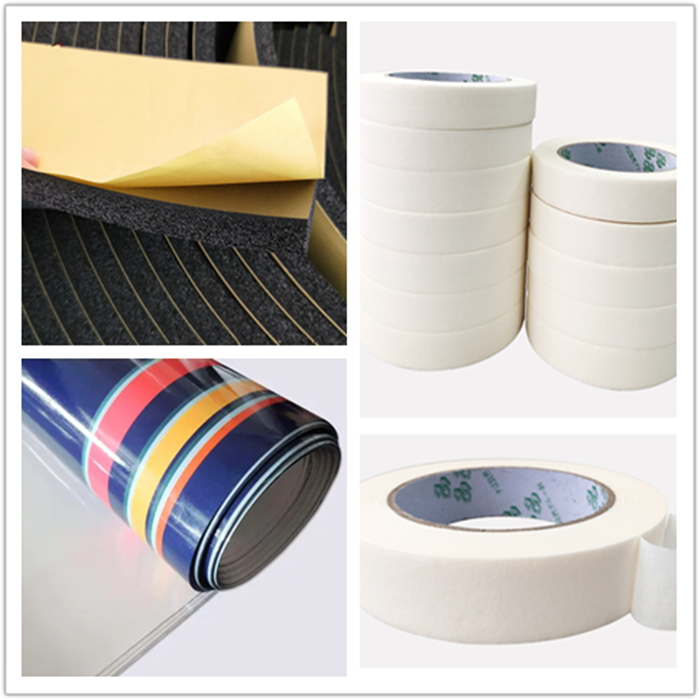

2.Application: sponge, foam, cloth base, paper, label, photo spray film and other adhesive production.

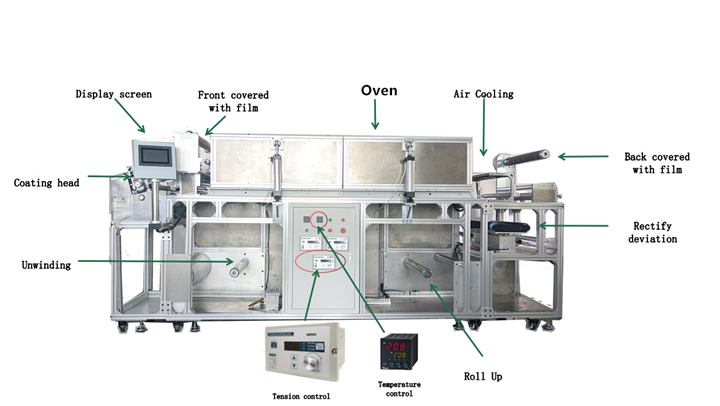

3.This equipment is an all-in-one machine with various coating-modes to achieve different coating-process requirements. It mainly integrates five coating-modes: scraper coating-mode, transfer coating-mode, extrusion coating-mode, flow coating-mode and micro-gravure coating-mode. Continuous coating, intermittent coating, stripe coating, grid coating and ultra-thin coating and other coating processes can be realized.
Specification
|
Coating accuracy |
Thickness accuracy +5um/ customizable |
|
Temperature sensing accuracy of hopper |
No heating/heating 0-300℃ accuracy 0.3%FS/ sh 1℃ |
|
Cover film configuration |
Pressure (customizable) No pressure |
|
Curing temperature range |
Can be customized 0-300℃ |
|
Receiving configuration |
The outside diameter of the balloon shaft can be customized q75 |
|
Rectify deviation |
Customizable 300 or 500mm |
|
Tension |
Independent electronic tension controller |
|
Speed |
0-30m/min According to the glue curing time adjustment precision servo control ≤0.2% |
|
Roll-in and roll-out configuration |
Bearing 100kg roll diameter ≤500mm; Wide width: can be customized 300 or 500mm |
|
Mode of operation |
Manual/automatic/cut-off alarm |
|
Power supply |
Basic voltage: single-phase 220V 4.5KW(Change voltage according to demand) |
|
Corona machine |
0-3000Woptional |
