Small Size Slurry Vacuum Mixing Machine for Lithium Lon Battery Research

This machine is a high-efficiency equipment that integrates vacuum mixing and dispersion.

Please send your inquiry to joyhuang@simymachine.com

  • Item No.:

    SIMY-SSVL
  • Lead Time:

    10 days
  • Payment:

    Credit Card, Paypal, T/T , Western Union, LC
  • Warranty Period:

    1 year
  • Customizable:

    Yes
  • Product Detail

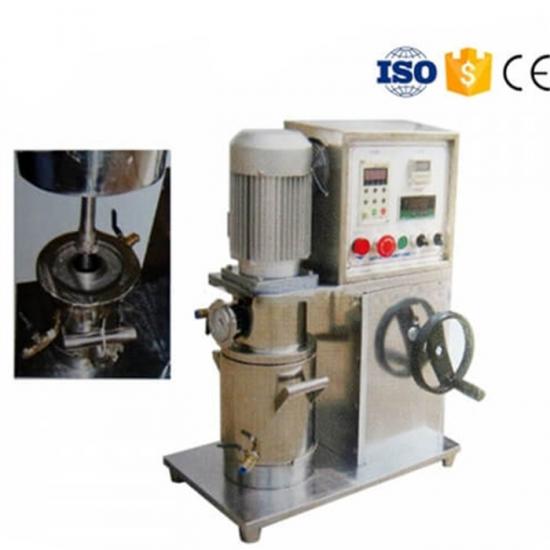

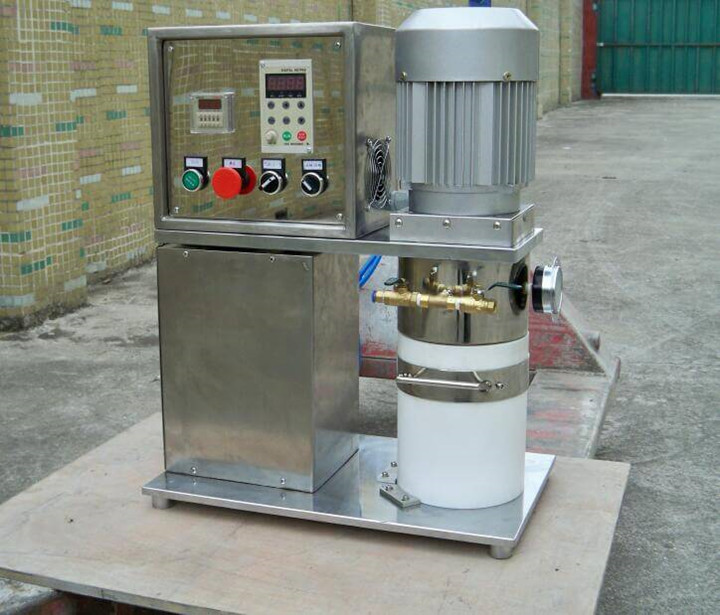

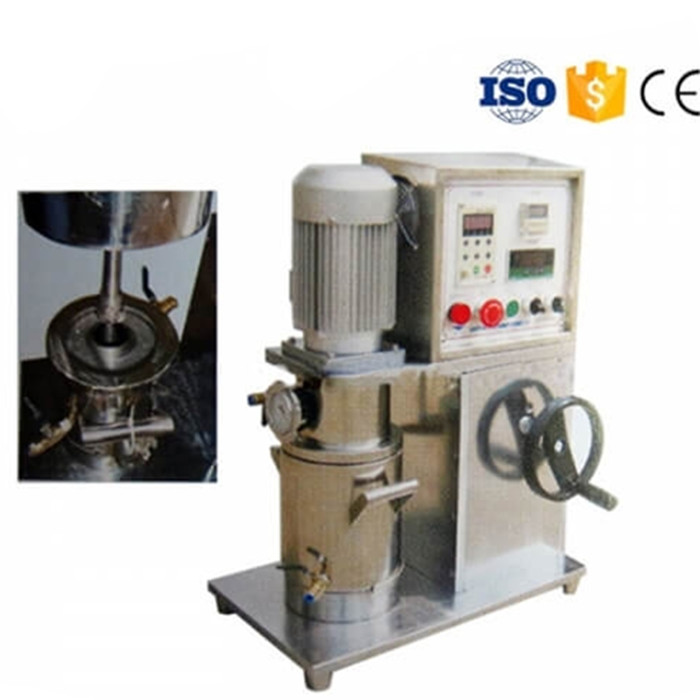

Small Size Slurry Vacuum Mixing Machine for Lithium Lon Battery Research


Product introduce

1. This Vacuum Mixer is a high efficient equipment with vacuum mixing , it is suitable for lithium electricity experiment process for anode and cathode paste mixing process, and also other glue, chemical and other industries.
2. The vacuum mixer is with handle wheel, which can uplift the cylinder by hand, without connecting with air compressor.
3. The vacuum mixing machine is programmable in speed, time, and rotating direction, and water cold stainless steel tank promise high efficient in mixing.
4. The  vacuum mixing machine is excellent for preparing LiCoO3, LiFePO4, Phosphors and ceramic slurry without gas bubble. And the processed material results in the better dispersion and uniformity. Choosing your ideal planetary mixer here.


Specification

Model

Small Size Vacuum Mixer 1L

Source voltage

AC 220V/110V, 50HZ/60HZ

Power

750W

Warranty

One Year limited warranty with lifetime support

Mixing speed

0-2800 r/min, Through the inverter speed control

Effective volume

1L, Can also choose 500ml Mixing Jar

Mixing barrel opening mode

Arms straight line guide rail hand cover rising, without connecting air compressor

Mixing barrel size

Φ100mm(Diameter)*140mm(Hight)

Mixing time set

0-99H can be set, with auto stop when time reach

Weight

About 60kg

Dimension(H*L*W)

600*500*300mm, 24″*20″*12″

Advantage

Advanced soft sealing type to keep vacuum pressure maintain on -98kpa up to 24 hours.

With time and temperature setting function,

Container is opened or closed by electric Hand (no air pump is required any more)
