Pasteurization Cans for Dairy Beverages
Product Introduce

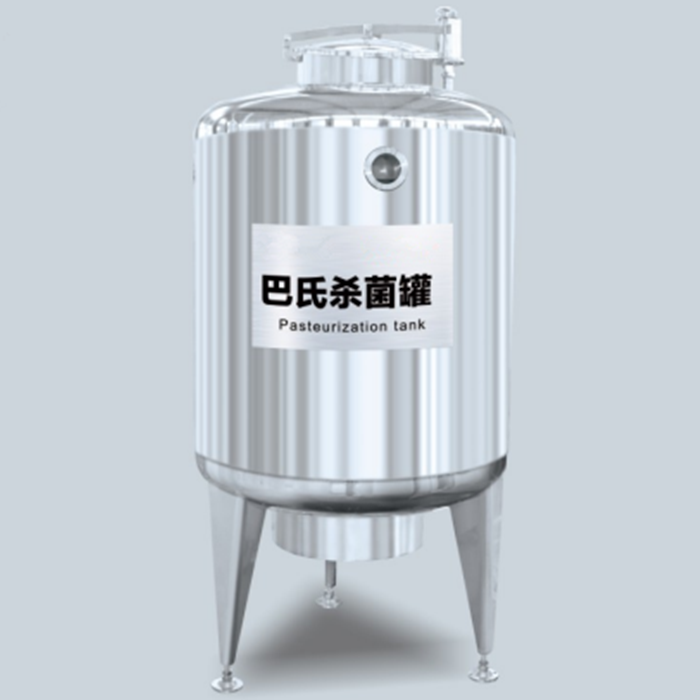

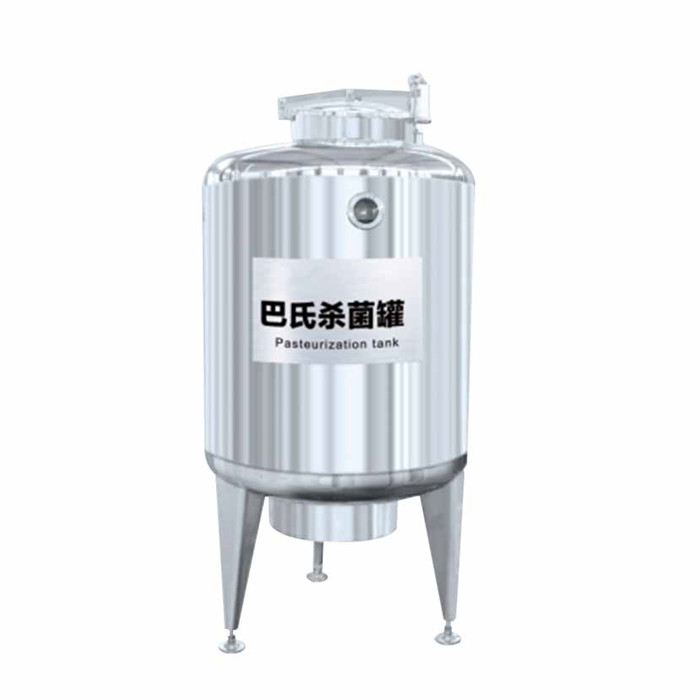

This equipment mainly consists of several parts, including the tank body, mixing motor, heating system, electrical control, etc. The main body is made of stainless steel SUs304, which is precision polished, easy to clean, and corrosion-resistant. The insulation layer of the tank body is filled with rock wool or polyurethane foam insulation material with low thermal conductivity, which is lightweight and has good insulation performance. Four corner R angle transition, using quick discharge valve, without dead corners, convenient for quick discharge
This equipment has the advantages of energy conservation, noise reduction, corrosion resistance, strong production capacity, and convenient cleaning. This equipment is an essential stainless copper tank for heating, cooling, insulation, sterilization treatment, or storage of slurry, and is widely used in the production and processing of dairy, food, pharmaceutical, chemical, beverage, and other industries.
Specification
| Model | Weight(Kg) | Installation dimensions(mm) | Tank size(mm) | Material | Stng speed | Heating area | Stiring power | Work stress | Performance |
| 300L | 150 | 1140x1140x1900 | ∅800x600x2 | Ann polyester foam liquid | 36r/min | 1.6m2 | 0.55kw | 0.09mpa | <1℃/3h |
| 400L | 180 | 1240x1240x1900 | ∅900x600x2 | ||||||
| 500L | 220 | 1400x1400x1950 | ∅1000x650x3 | 2.5m2 | |||||
| 600L | 250 | 1400x1400x2050 | ∅1000x750x3 | ||||||
| 700L | 280 | 1400x1400x2200 | ∅1000x900x3 | 0.75kw | |||||
| 800L | 320 | 1500x1500x2150 | ∅1100x850x3 | 4m2 | |||||
| 900L | 350 | 1500x1500x2250 | ∅1100x950x3 | 4.5m2 | |||||
| 1000L | 380 | 1600x1600x2200 | ∅1200x900x3 |
